ZARC12

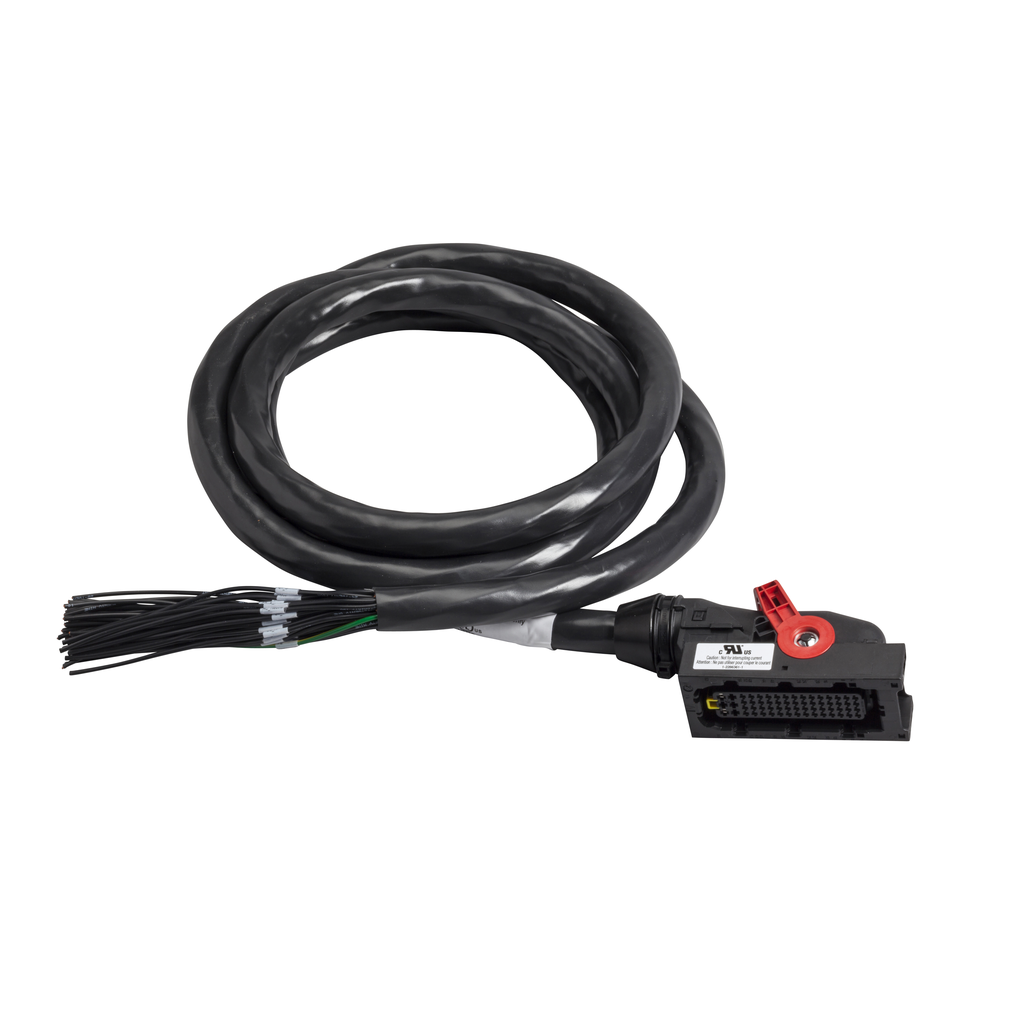

Harmony eXLhoist, standard, Connector plug female with cable 3m for ZARB12H
Specifications
| China Rohs Regulation | X |
|---|---|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Total Number Of Wires | 48 |
| Product Compatibility | control station ZARB |
| Cable Length | 3 m |
| Cable Composition | 8 x 2.8 mm² + 40 x 1.5 mm² |
| Pin Number | 62 |
| Material | PE (polyethylene) |
| Net Weight | 3.6 kg |
| Country of Origin | Poland |
| Length | 3 m |
| Weight | 3.6 kg |
| Range Of Product | Harmony eXLhoist |
| Accessory / Separate Part Category | connection accessory |
| Accessory / Separate Part Type | pre-wired connector |
| Ambient Air Temperature For Operation | -25-70 °C |
| Nema Degree Of Protection | NEMA 4 |
| Ambient Air Temperature For Storage | -40-60 °C |
| Ip Degree Of Protection | IP65 |
Documents
- XARS8D18. / XARS12D18. / XARS8L12. Wireless Remote Control Station, Instruction Sheet (EN) - HRB5724702_05 (pdf)
- ZARC05/12/18 Female Connector Plug with Cable for ZARB12H../ZARB18H.., Instruction Sheet - HRB57273-00 (pdf)
- Spec Sheet
- Catalog Harmony eXLhoist - Wireless industrial radio remote control English 04/2021 - Catalog+Harmony+eXLhoist+-+Wireless+industrial+radio+remote+control (pdf)
- Digest Catalog 19: Push Buttons and Operator Interface (MAY 2019) - 0100CT1901_SEC-19 (pdf)
