ZARB10WSP - Base station, Harmony eXLhoist, compact, Receiver, 10 relays outputs, pre wired 1.5 m cable, 48...240V AC

ZARB10WSP

Base station, Harmony eXLhoist, compact, Receiver, 10 relays outputs, pre wired 1.5 m cable, 48...240V AC

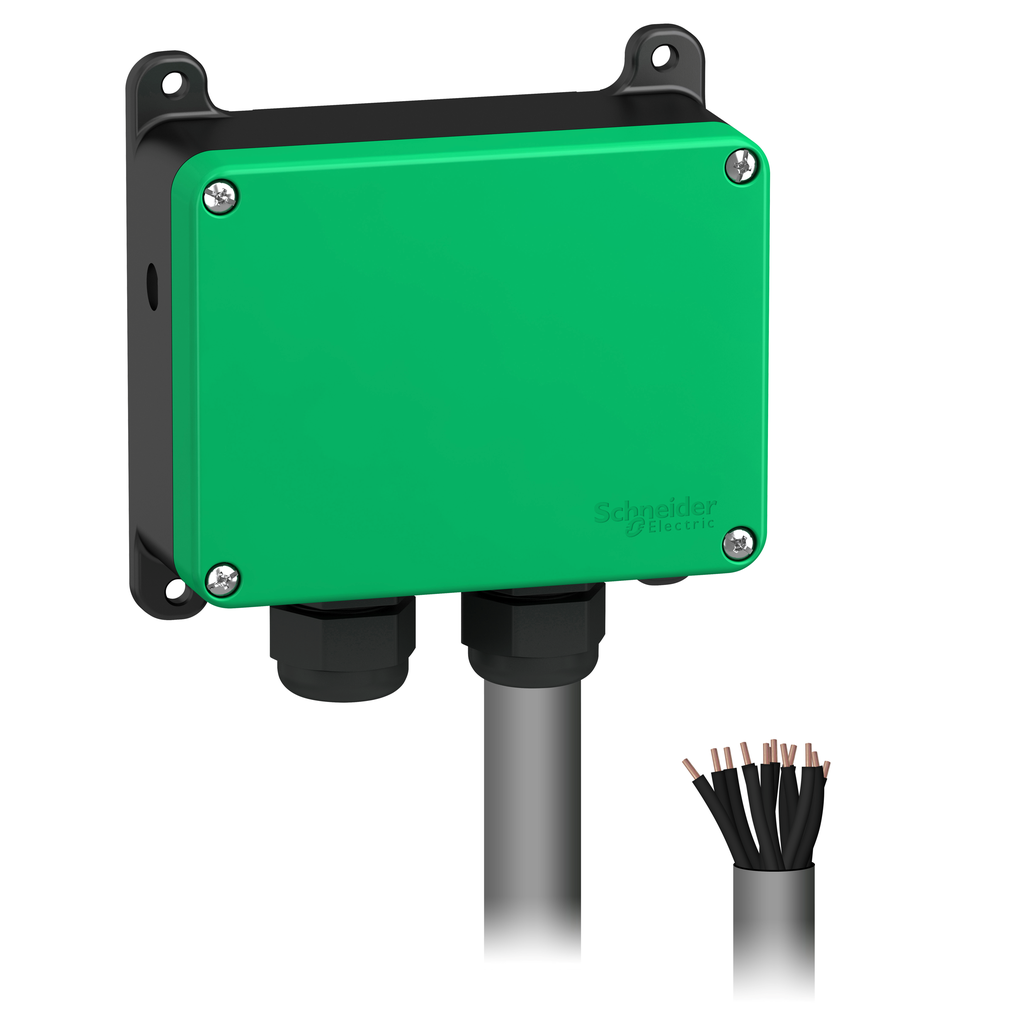

This Harmony eXLhoist / XAR green base station (receiver) has 10 relays outputs with 2 safety relays. This green base station (receiver) is designed as receiver for wireless remote control system. It has 10 relay outputs with 2 safety relays and has wired connection cable gland. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP66, making it ideal for operation in harsh (heavy) environments. It provides complete innovative crane operator control solutions to help improve machine and crane operator efficiency. Base station (receiver) has a unique identification code to allow the consistent and stable connection with its compatible remote control system.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Height	117 mm
Maximum Switching Current	10 A
Fixing Mode	4 holes
Transmission Frequency	2.4 GHz
Relay Type	motion relay outputs 9 NO auxiliary relay outputs 1 NO
Material	ABS + PC
Net Weight	0.88 kg
Communication Network Type	wireless Zigbee
Nominal Output Current	0.5 A 48 V AC IEC 60947-5-1
[Us] Rated Supply Voltage	48...240 V AC
Maximum Sensing Distance	100 m in free field
Mechanical Durability	10000000 cycles
Maximum Switching Voltage	240 V AC +/- 20 %)
Cable Entry	cable pre-wired
Provided Equipment	internal antenna
Number Of Relays	10
Width	120 mm
Depth	51 mm
Safety Outputs	2 NC relay outputs
Electrical Durability	100000 cycles
Rohs Exemption Information	Yes
Mercury Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Country of Origin	United States
Width	120 mm
Height	117 mm
Weight	0.88 kg
Range Of Product	Harmony eXLhoist
Product Or Component Type	base station
Product Specific Application	hoisting applications material handling
Device Short Name	ZARB
Product Certifications	CE
Ambient Air Temperature For Operation	-20-55 °C
Radio Agreement	FCC IC
Ip Degree Of Protection	IP66
Relative Humidity	0-97 %
Ambient Air Temperature For Storage	-40-70 °C

Base station, Harmony eXLhoist, compact, Receiver, 10 relays outputs, pre wired 1.5 m cable, 48...240V AC
