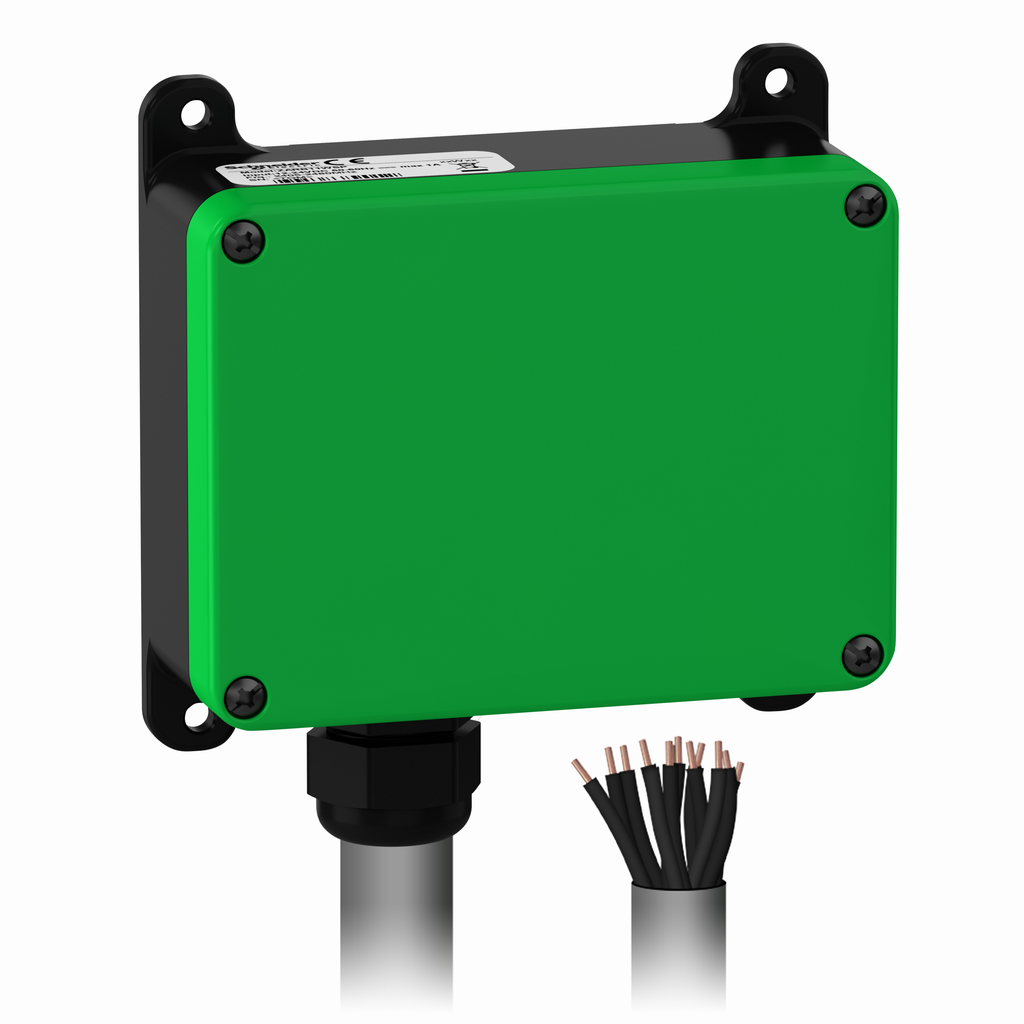

ZARB05WSP
Base station, Harmony pocket remote, 5 relays output, pre-wired, 1.5m cable, 12...24V DC
This green base station (Receiver) is designed as receiver for wireless remote control system It has 5 relay outputs with 2 safety relays and has wired connection cable gland It is impact resistant (strength), dust resistant (strength), water resistant (strength), corrosion resistant (strength), and vibration resistant (strength) thanks to its IP66, making it ideal for operation in harsh (heavy) environments
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Height | 117 mm |
| Maximum Switching Current | 10 A AC |
| Fixing Mode | 4 holes |
| Transmission Frequency | 2.4 GHz |
| Relay Type |
|
| Material | ABS + PC |
| Net Weight | 0.40 kg |
| Communication Network Type | wireless |
| [Us] Rated Supply Voltage | 12...24 V DC |
| Maximum Sensing Distance | 300 m in free field |
| Mechanical Durability | 10000000 cycles |
| Maximum Switching Voltage | 240 V AC +/- 20 %) |
| Cable Entry | cable pre-wired |
| Provided Equipment | internal antenna |
| Number Of Relays | 5 |
| Width | 120 mm |
| Depth | 51 mm |
| Safety Outputs | 2 NC relay outputs |
| Electrical Durability | 100000 cycles |
| Country of Origin | China |
| Width | 120 mm |
| Height | 117 mm |
| Weight | 0.40 kg |
| Range Of Product | Harmony Pocket Remote |
| Product Or Component Type | base station |
| Device Short Name | ZARB |
| Product Certifications | CE |
| Ambient Air Temperature For Operation | -20-55 °C |
| Radio Agreement |
|
| Ip Degree Of Protection | IP66 |
| Relative Humidity | 0-97 % |
| Ambient Air Temperature For Storage | -40-70 °C |
