ZA2VA11
Digital display body, Harmony XB5, 22mm, BCD +decimal, 24V DC

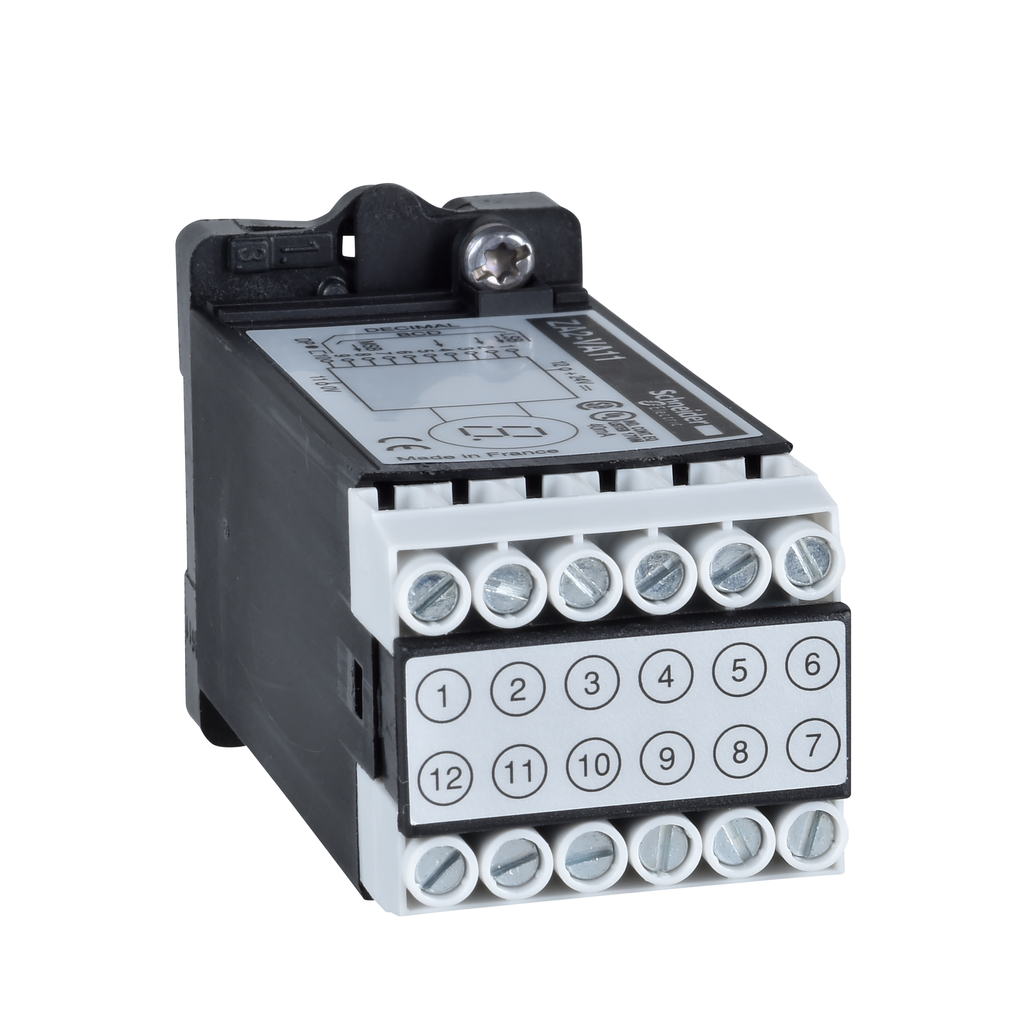

This Harmony ZA2VA11 is a digital display body, decimal + BCD. It is part of the range Harmony XB5 diameter 22mm modular plastic push buttons, switches, and pilot lights.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Ambient Air Temperature For Operation | -25-70 °C |
| Shock Resistance | 180 gn 11 ms IEC 60068-2-27 |
| Vibration Resistance | 10 gn 10-500 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection |
|
| Ambient Air Temperature For Storage | -40-85 °C |
| Electrical Shock Protection Class |
|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Logic Input | positive |
| Current Consumption |
|
| Current State 0 Guaranteed | <= 1.4 mA |
| Net Weight | 0.057 kg |
| Voltage State 0 Guaranteed | -30...5 V |
| Current State 1 Guaranteed | 4...9.5 mA |
| Electronic Decoding | decimal + BCD |
| Supply Voltage Limits | 13-30 V |
| Protection Type | reverse polarity protection |
| Mounting Support | panel |
| Device Mounting | fixing hole 22.3 mm |
| Voltage State 1 Guaranteed | 13...30 V |
| Country of Origin | United States |
| Weight | 0.057 kg |
| Range Of Product | Harmony |
| Product Or Component Type | digital display body |
| Connections - Terminals | screw connectors, 0.5 x 2.5 mm² |
| [Us] Rated Supply Voltage | 24 V DC |
