ZA2VA04

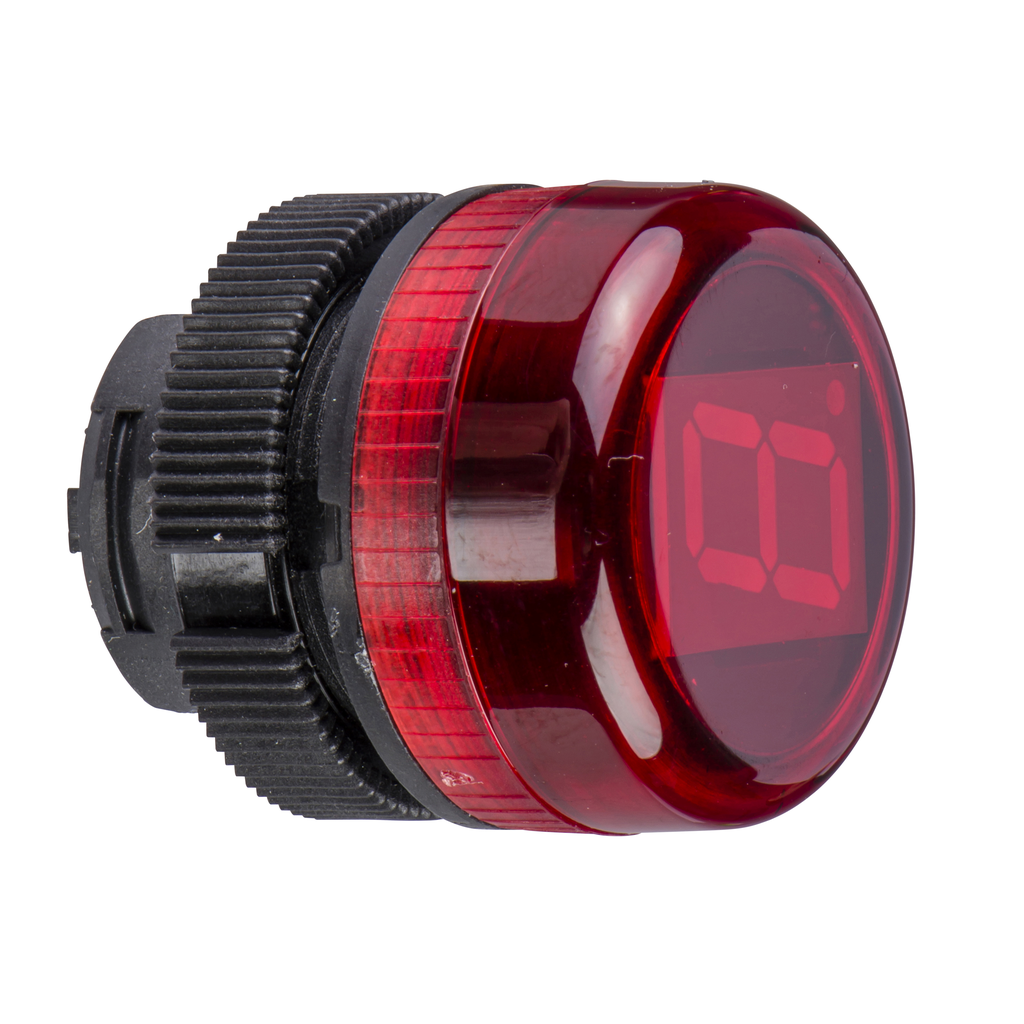

Digital display head, Harmony XB5, Digital display head, red, 22mm, 24V DC
This Harmony ZA2VA04 is a red digital display head. It is part of the range Harmony XB5 diameter 22mm modular plastic push buttons, switches, and pilot lights.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Ambient Air Temperature For Operation | -25-70 °C |
| Shock Resistance | 180 gn IEC 60068-2-27 |
| Vibration Resistance | 10 gn 10-500 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection |
|
| Ambient Air Temperature For Storage | -40-85 °C |
| Electrical Shock Protection Class | class II NF C 20-030 |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Net Weight | 0.02 kg |
| Supply Voltage Limits | 13-30 V |
| Display Type | 7 segments LED + decimal point |
| Country of Origin | United States |
| Weight | 0.02 kg |
| Range Of Product | Harmony |
| Mounting Diameter | 22 mm |
| Product Or Component Type | digital display head |
| Cap/Operator Or Lens Colour | red |
| [Us] Rated Supply Voltage | 24 V DC |
