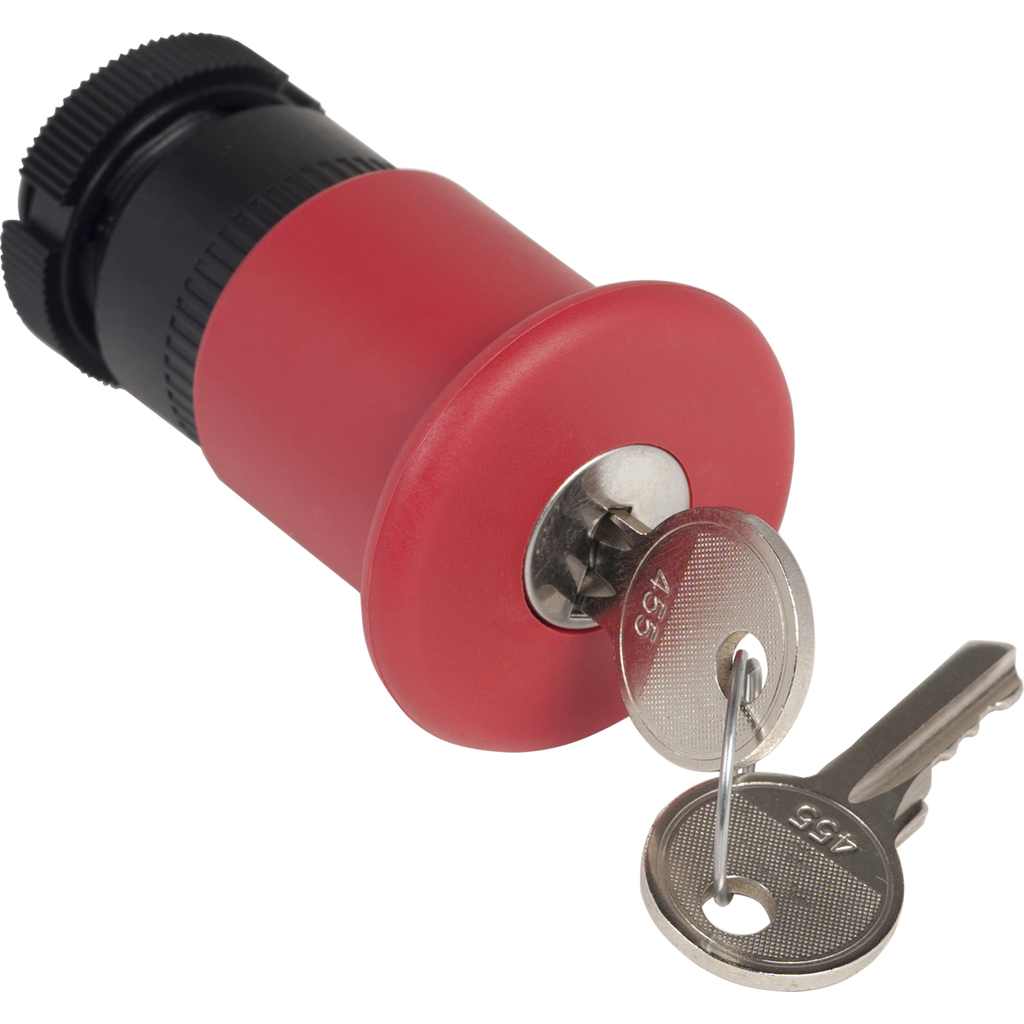

ZA2BS944
Head for emergency switching off push button, Harmony XAC, red mushroom 40mm, trigger latching key release, unmarked
This Harmony ZA2BS944 is a red diameter 40mm Emergency stop, switching off head trigger and latching key release. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Ik Degree Of Protection | IK08 |
|---|---|
| Ambient Air Temperature For Operation | -25-70 °C |
| Standards |
|
| Vibration Resistance | 15 gn 10-500 Hz)IEC 60068-2-6 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2308018EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2308018EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Marking | unmarked |
| Net Weight | 0.065 kg |
| Mounting Location | front of enclosure |
| Overvoltage Category | class II IEC 61140 |
| Operator Profile | red mushroom Ø 40 mm |
| Product Compatibility | XACA.. |
| Country of Origin | France |
| Weight | 0.065 kg |
| Range Of Product | Harmony XAC |
| Product Or Component Type | head for emergency switching off push-button |
| Sale Per Indivisible Quantity | 1 |
Documents
- Industrial Automation and Control Product Lines Brochure - 998-20256927_2019_Line_Card_GM (pdf)
- Spec Sheet
- Digest Catalog 19: Push Buttons and Operator Interface (MAY 2019) - 0100CT1901_SEC-19 (pdf)
- Harmony XB4 XB5 XB7 22 mm Push Buttons Catalog - DIA4ED2060507CEN-US+Rev.+02 (pdf)
- Discover catalog Harmony XAC Pendant control stations - Catalog+Harmony+XAC+Pendant+control+stations (pdf)
