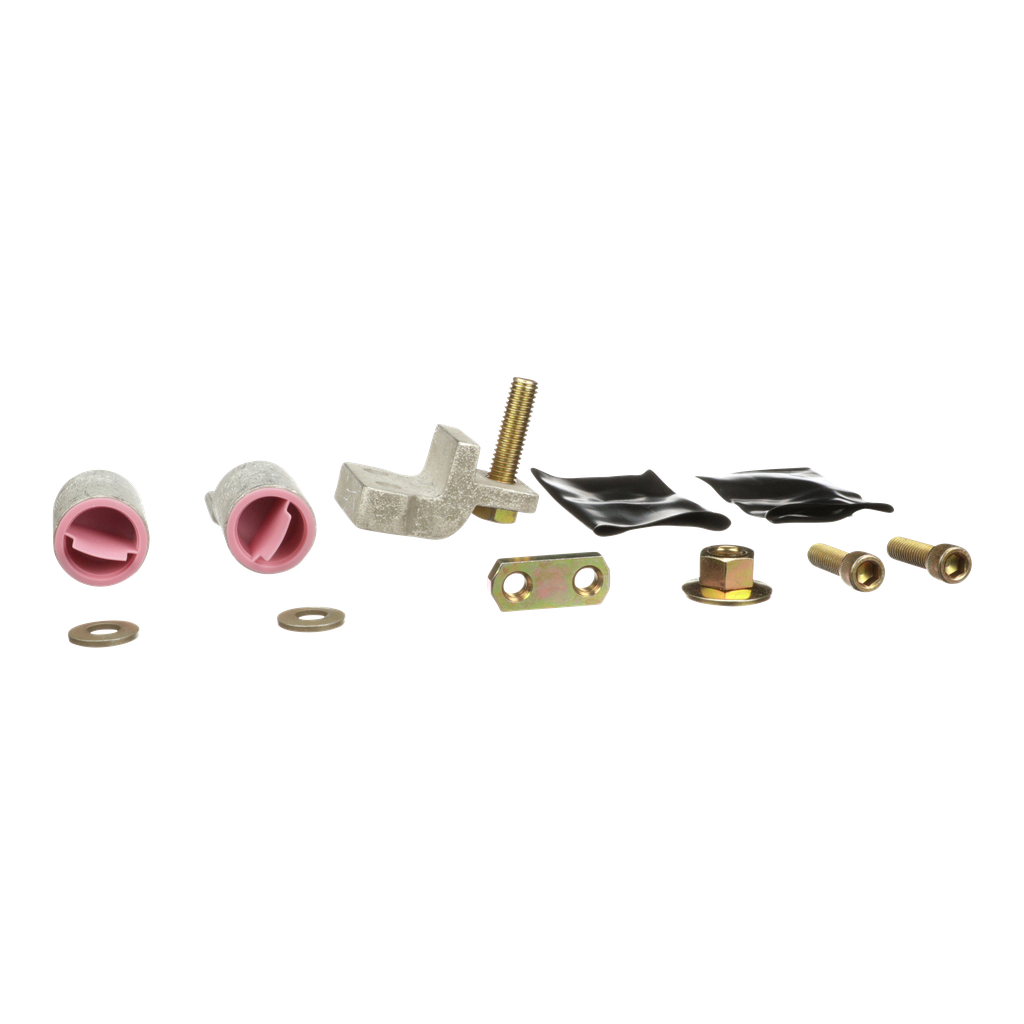

Circuit breaker accessory, PowerPacT M/P, lug kit, mechanical, 800 A, aluminium
Square D PowerPact family is industry leading innovation and protection for heavy duty commercial and industrial appliacations Common catalog numbers, standardized ratings, and a full range of field-installable accessories make product selection, installation and maintenance easier than ever. This compression lug kit is designed to be used with unit mount or I-Line PowerPact M-frame, P-frame 3 pole circuit breakers with Electronic trip units and NS630b–NS1200 circuit breakers This lugs have rating as 800A for aluminium and needed 2 of each per terminal. Terminal wire range for this accessory is 2 wires of 750 kcmil - 500 kcmil aluminium or 500 kcmil copper. Connector accessory is coming as 2 lugs per kit and has dimensions as 4.3inches Height.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1312003EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1312003EN |
| Eu Rohs Directive | Compliant with Exemptions |
| Tightening Torque | 28-28 N.m 240-400 mm² (500...750 kcmil) |
| Material | aluminium |
| Line Rated Current | 800-800 A |
| Mounting Mode |
|
| Awg Gauge |
|
| Country of Origin | United States |
| Range Of Product |
|
| Accessory / Separate Part Category | connection accessory |
| Product Or Component Type | mechanical lug |
| Quantity Per Set | set of 2 |
