YA400P3

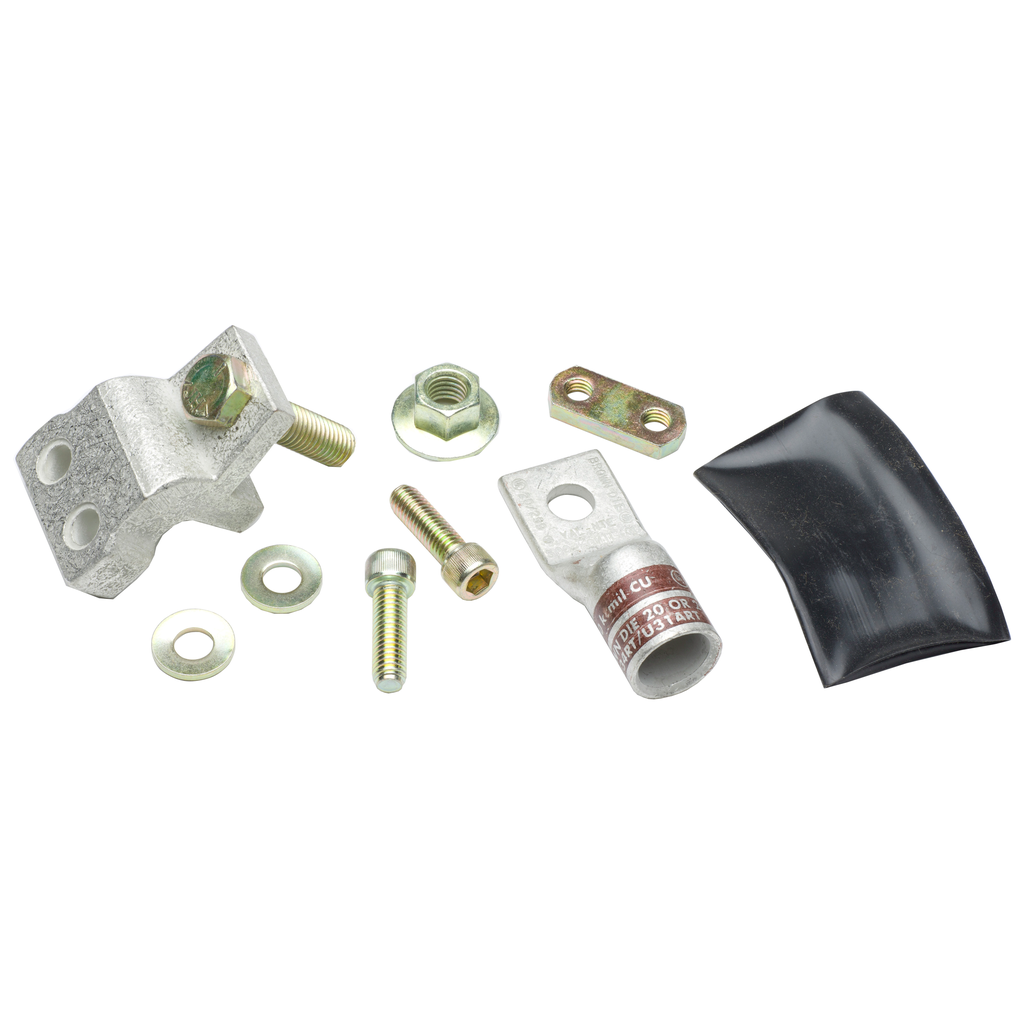

PowerPacT M/P-FRAME MOULDED CASE CIRCUIT BREAKER 400A AL COMPRESSION LUG KIT
Specifications
| Product Certifications |
|
|---|---|
| Warranty | 18 months |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1407012EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1407012EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Eu Rohs Directive | Compliant with Exemptions |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Line Rated Current | 400-400 A |
| Mounting Mode |
|
| Tightening Torque | 28-28 N.m 70-150 mm² (AWG 2/0...300 kcmil) |
| Awg Gauge | AWG 2/0...300 kcmil aluminium/copper |
| Material | aluminium |
| Country of Origin | United States |
| Range Of Product |
|
| Accessory / Separate Part Category | connection accessory |
| Quantity Per Set | set of 2 |
| Product Or Component Type | mechanical lug |
Documents
- Compression Lug Kits for M-, P-, and R-Frame Circuit Breakers Installation Instructions - 48049-147-02 (pdf)
- Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf)
- Spec Sheet
- PowerPacT M-, P-, and R-frame and NS Circuit Breakers Catalog - 0612CT0101 (pdf)
- Circuit Breakers: Section 7 - Digest 179 (2024) - Circuit-Breakers-Digest-Catalog-0100CT2401-SEC-07 (pdf)
