YA250J35

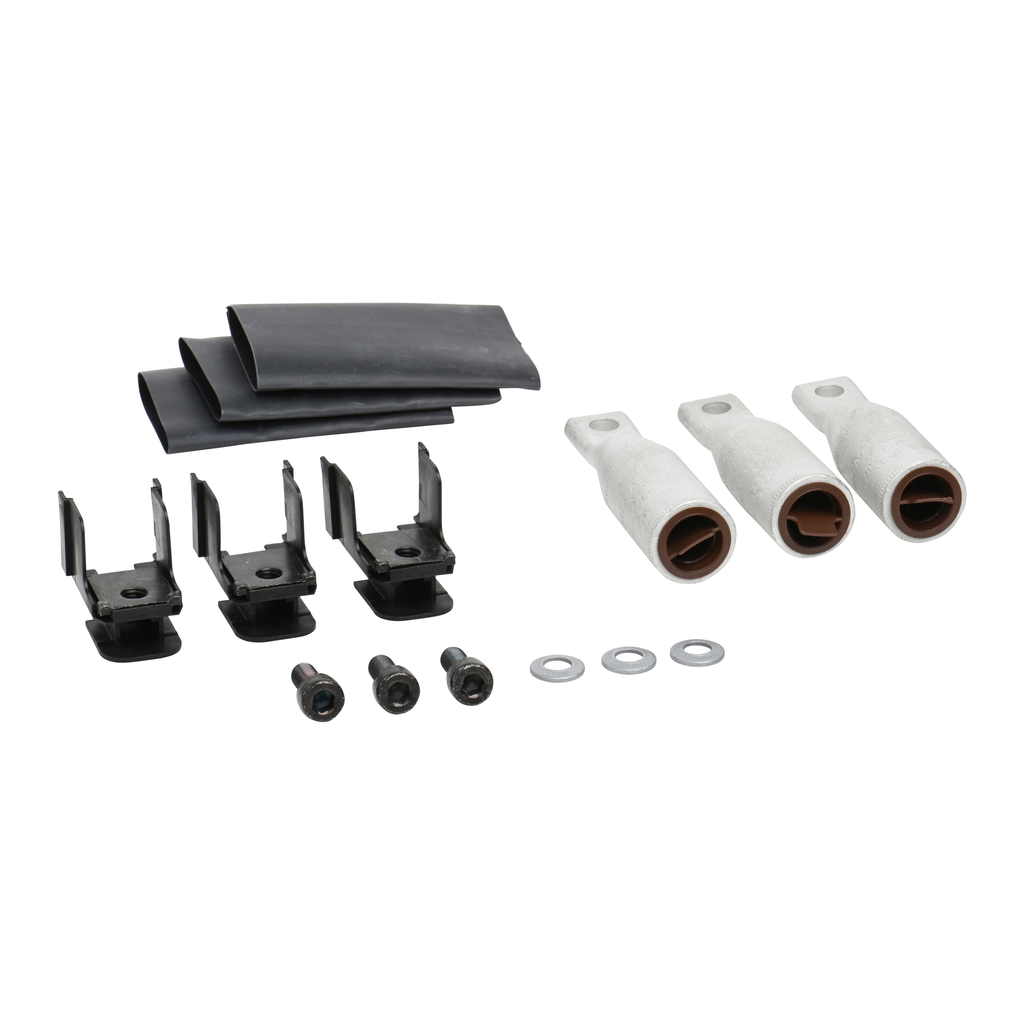

Circuit breaker accessory, PowerPacT J, lug kit, compression, 250A, 3 pole, aluminum
This is a connection accessory for PowerpacT J-Frame I-Line circuit breakers. This compression lug kit, has a rated current of 250A and is made of aluminum. This lug kit is for a 3 pole circuit breaker. This lug kit accepts AWG 3/0 / 350 kcmil wire, aluminum/copper. This accessory complies with UL and CSA standards This product comes in a set of 3. With a tightening torque of 14.7-15.8 Nm.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
| Tightening Torque | 14.7-15.8 N.m (AWG 3/0...350 kcmil) |
| Material | aluminium |
| Line Rated Current | 250-250 A |
| Mounting Mode |
|
| Awg Gauge | AWG 3/0...350 kcmil aluminium/copper |
| Country of Origin | United States |
| Range Of Product | PowerPact J |
| Accessory / Separate Part Category | connection accessory |
| Product Or Component Type | lug kit |
| Quantity Per Set | set of 3 |
