YA150JD

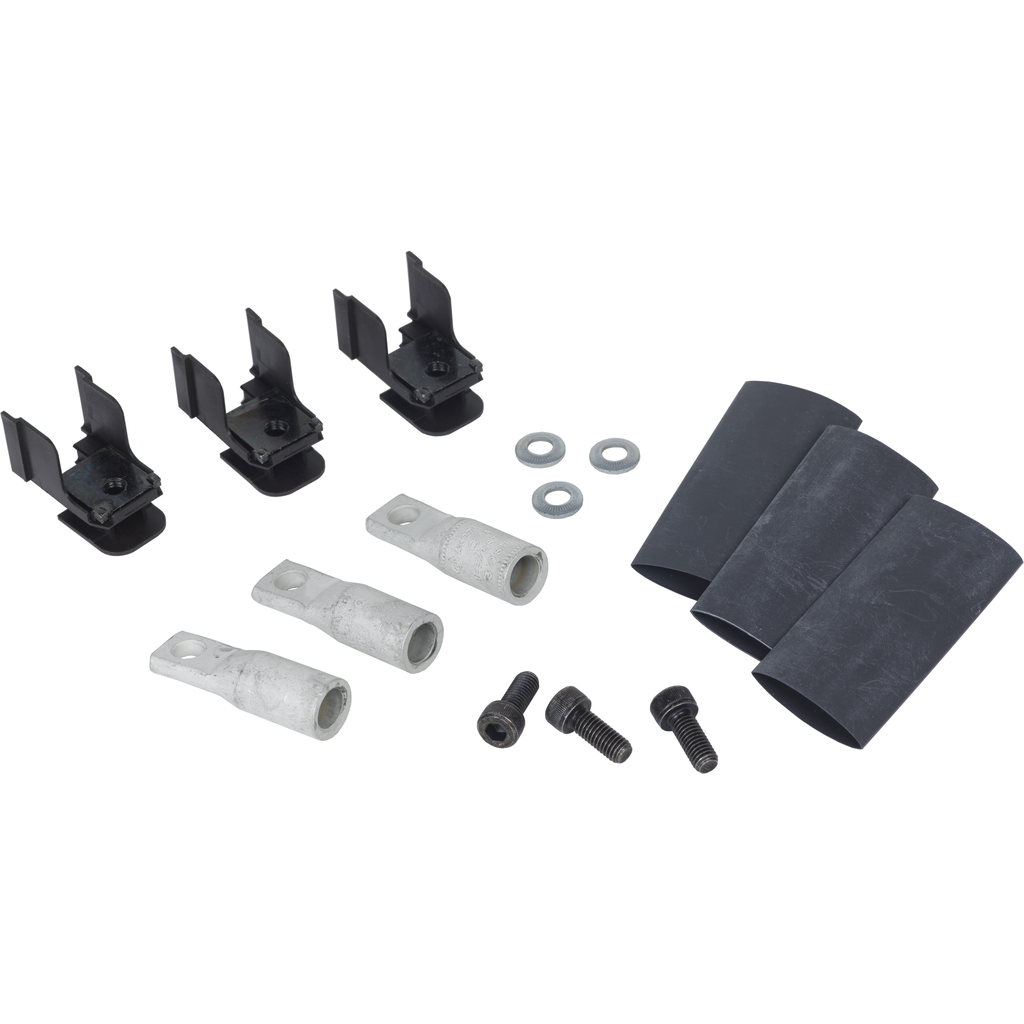

Circuit breaker accessory, PowerPacT J, compression lug kit, 150A, 3 pole, aluminum
Specifications
| Product Certifications |
|
|---|---|
| Warranty | 18 months |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1311008 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1311008EN |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Compliant |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Line Rated Current | 150-150 A |
| Mounting Mode |
|
| Tightening Torque | 14.7-15.8 N.m (AWG 3/0...350 kcmil) |
| Poles Description | 3P |
| Awg Gauge | AWG 1...AWG 3/0 aluminium/copper |
| Material | aluminium |
| Country of Origin | United States |
| Range Of Product | PowerPact J |
| Accessory / Separate Part Category | connection accessory |
| Quantity Per Set | set of 3 |
| Product Or Component Type | lug |
Documents
- Spec Sheet
- PowerPacT H-, J-, and L-Frame Circuit Breakers Catalog - 0611CT1001 (pdf)
- PowerPacT M-, P-, and R-frame and NS Circuit Breakers Catalog - 0612CT0101 (pdf)
- Circuit Breakers: Section 7 - Digest 179 (2024) - Circuit-Breakers-Digest-Catalog-0100CT2401-SEC-07 (pdf)
- Compression Lug Kits for H- and J-frame Circuit Breakers - Installation Instructions - 48940-225-01 (pdf)
- Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf)
