XVUZ400

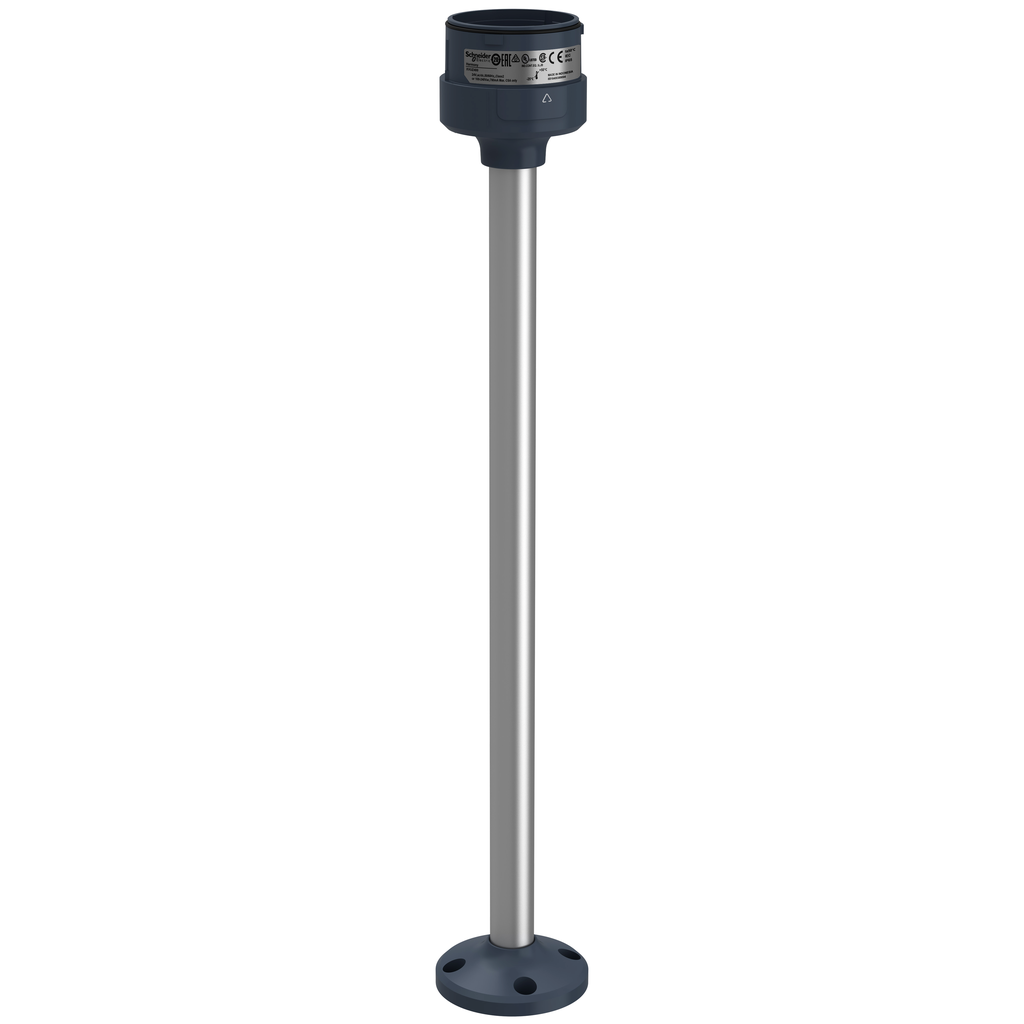

Fixing plate with 400mm aluminium pole for modular tower lights, Harmony XVU, black, 60mm
This Harmony XVU fixing plate is work with DC and AC base units. It contains base unit, support pole, and vertical fixing plate. This black fixing plate with support pole is designed as a mounting and fixing accessory for modular tower light. It allows fast and easy replacement of your signaling units via simple push-in terminals. It has a diameter of 60mm with a pole height of 400mm. It complies with CSA, UL, and CE standards and it has IP65 protection index. Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Ambient Air Temperature For Operation | -25-50 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Ip Degree Of Protection | IP65 |
| Country of Origin | Indonesia |
| Weight | 0.236 kg |
| Range Of Product | Harmony XVU |
| Accessory / Separate Part Category | mounting and fixing accessory |
| Mounting Diameter | 60 mm |
| Product Or Component Type | modular tower light |
| Component Name | XVU |
| Accessory / Separate Part Type | fixing plate |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Compliant with Exemptions |
| Housing Colour | black |
| [Us] Rated Supply Voltage |
|
| Pole Heigth | 400-400 mm |
| Connections - Terminals | push-in |
| Mounting Support | plate with pole |
| Product Compatibility | top AC/DC body |
| Material |
|
| Net Weight | 0.236 kg |
| Length | 417-417 mm |
Documents
- Spec Sheet
- Digest Catalog 19: Push Buttons and Operator Interface (MAY 2019) - 0100CT1901_SEC-19 (pdf)
- Industrial Control Panel Solutions Catalog - 8800CT1801 (pdf)
- Push Buttons: Section 19 - Digest 179 (2024) - Push-Buttons-Digest-Catalog-0100CT2401-SEC-19 (pdf)
- Catalog of Harmony XVU modular tower light, dia. 60 - DIA5ED2130407EN+(web) (pdf)
