XVUZ06

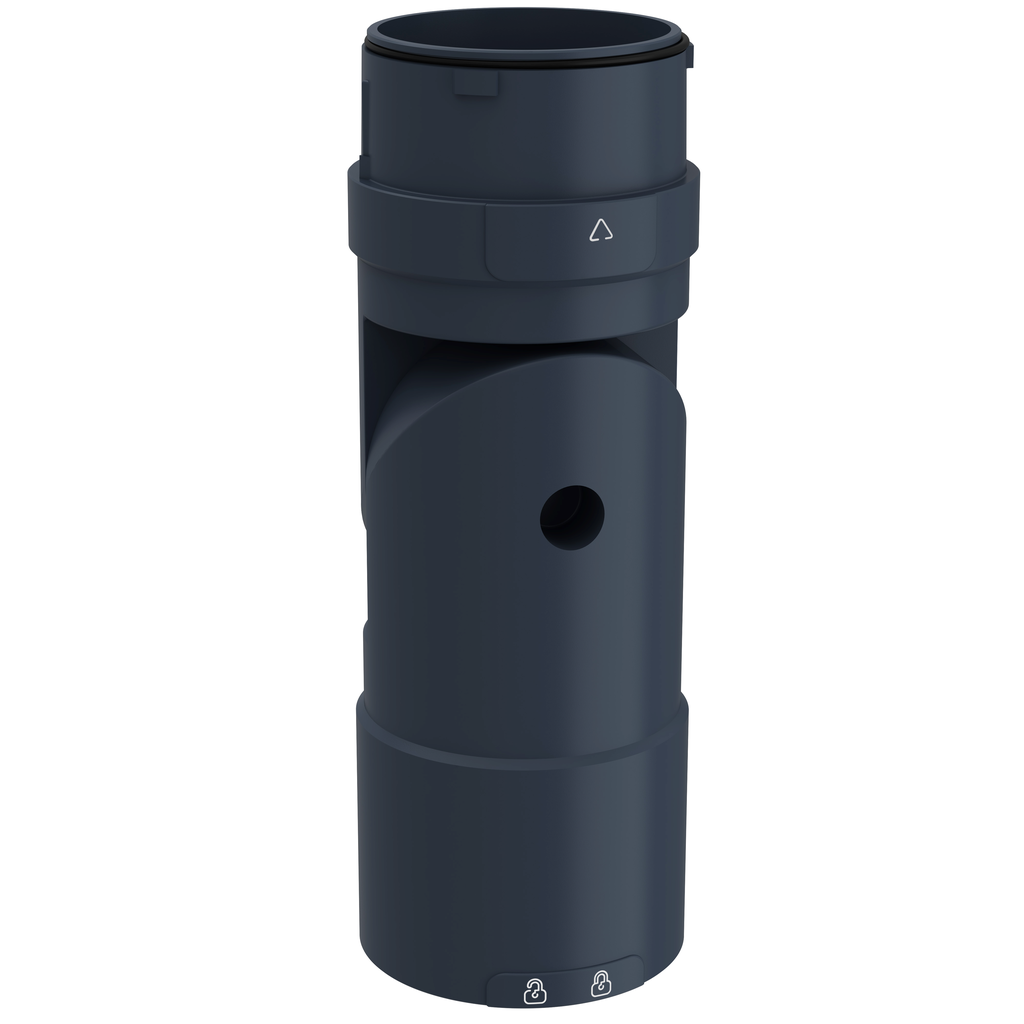

Flexible mounting unit for use on horizontal or vertical support for modular tower lights, Harmony XVU, black, 60mm
This flexible mounting unit is designed as a mounting and fixing accessory for modular tower light. It has a mounting diameter of 60mm and it is orientable at -90 to 90 degree operating angle. It also has an IP55 protection index.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| [Us] Rated Supply Voltage |
|
|---|---|
| Product Compatibility |
|
| Material |
|
| Net Weight | 0.193 kg |
| Function Available | orientable -90-90 ° |
| Length | 146-146 mm |
| Country of Origin | Indonesia |
| Weight | 0.193 kg |
| Range Of Product | Harmony XVU |
| Accessory / Separate Part Category | mounting and fixing accessory |
| Mounting Diameter | 60 mm |
| Product Or Component Type | modular tower light |
| Component Name | XVU |
| Accessory / Separate Part Type | swivel mounting support |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -25-50 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Ip Degree Of Protection | IP55 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1403004EN |
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1403004EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
