XVUZ05

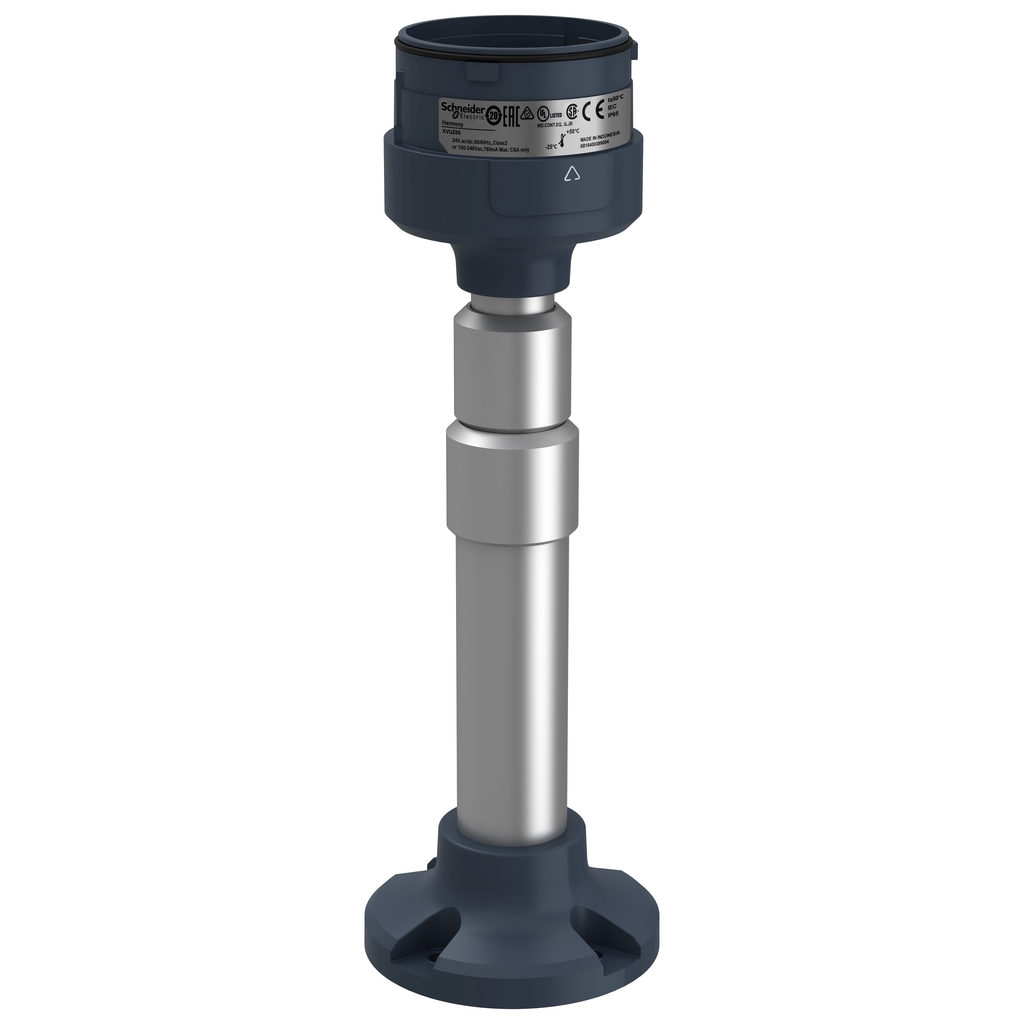

Fixing plate with adjustable aluminium pole 210 to 385mm for modular tower lights, Harmony XVU, black, 60mm
This black fixing plate with support pole is designed as a mounting and fixing accessory for modular tower light. It has a mounting diameter of 60mm and contains base unit, support pole, and horizontal fixing plate. It allows fast and easy replacement of your signaling units via simple push-in terminals. It has a mounting diameter of 60mm with an adjustable pole height of 210-385mm. It complies with CSA, UL, and CE standards and it has IP65 protection index. It makes it ideal for operation in harsh environments.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1403004EN |
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1403004EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Housing Colour | black |
| [Us] Rated Supply Voltage | 24 V AC/DC |
| Pole Heigth | 210-385 mm |
| Connections - Terminals | push-in |
| Mounting Support | plate with adjustable pole |
| Product Compatibility | top DC body |
| Material |
|
| Net Weight | 0.253 kg |
| Length | 209.7-384.7 mm |
| Country of Origin | United States |
| Weight | 0.253 kg |
| Range Of Product | Harmony XVU |
| Accessory / Separate Part Category | mounting and fixing accessory |
| Mounting Diameter | 60 mm |
| Product Or Component Type | modular tower light |
| Component Name | XVU |
| Accessory / Separate Part Type | adjustable pole |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -25-50 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Ip Degree Of Protection | IP65 |
