XVUC9S

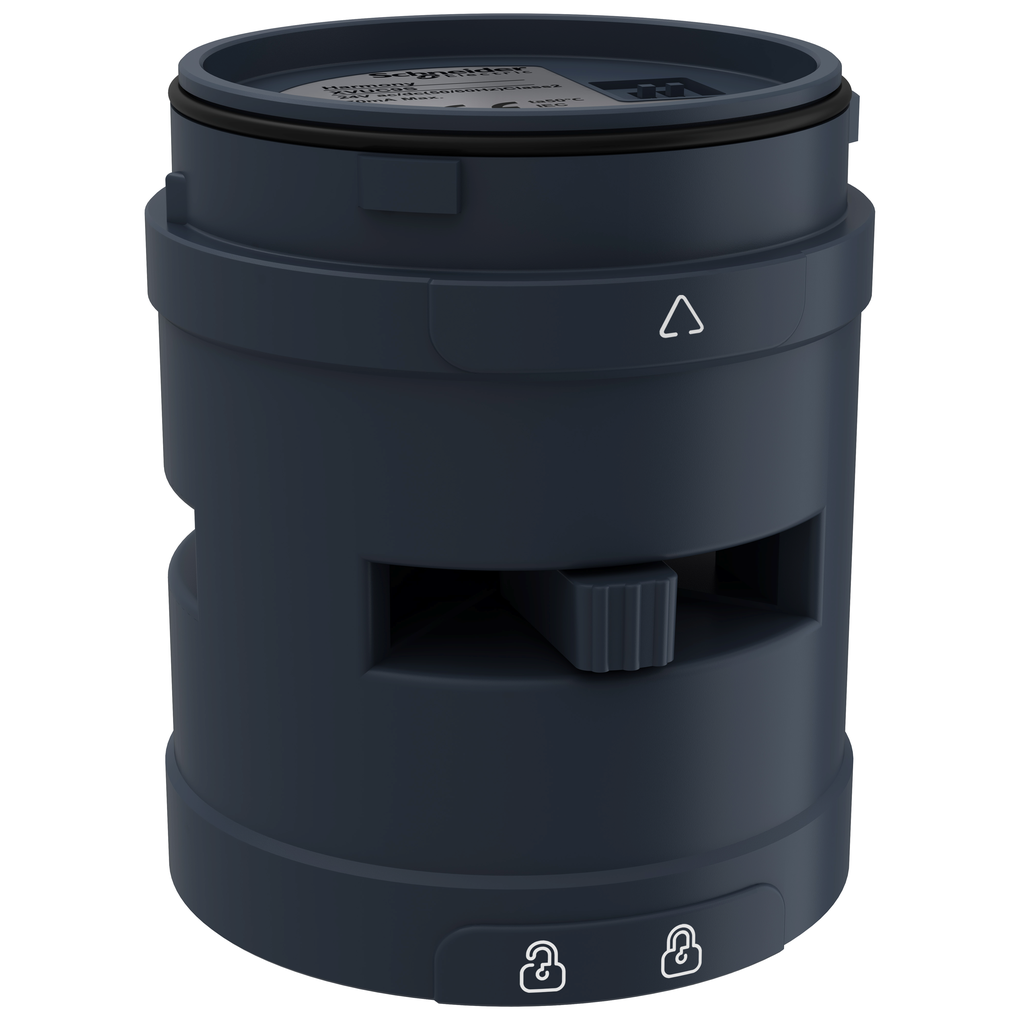

Modular tower light, Harmony XVU, audible unit, black, 60mm, buzzer, 24V AC DC
This indicating bank buzzer is an accessory designed as an audible and signalling unit. It is supplied with 24V AC/DC and has a mounting diameter of 60mm. It fits for modular tower light for custom assembly. It has a continuous or intermittentt signal and its sound acoustic level is adjustable. It complies with CSA, UL, RoHS, CE standards and it has IP54 protection index.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Localisation On Device | top |
|---|---|
| Material |
|
| Acoustic Level | 85 dB 1 m |
| Length | 58 mm |
| Net Weight | 0.077 kg |
| Current Consumption | <= 70 mA |
| [Us] Rated Supply Voltage | 24 V AC/DC |
| Maximum Power Dissipation In W | 1.7 W |
| Signalling Type | continuous or intermittent buzzer |
| Sound Frequency | 2635 Hz |
| Assembly Style | customer assembly |
| Country of Origin | Indonesia |
| Length | 58 mm |
| Weight | 0.077 kg |
| Housing Colour | black |
| Range Of Product | Harmony XVU |
| Mounting Diameter | 60 mm |
| Product Or Component Type | modular tower light |
| Component Name | XVU |
| Beacon Or Indicator Bank Unit Type | buzzer unit |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1403004EN |
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1403004EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -25-50 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Ip Degree Of Protection | IP54 |
