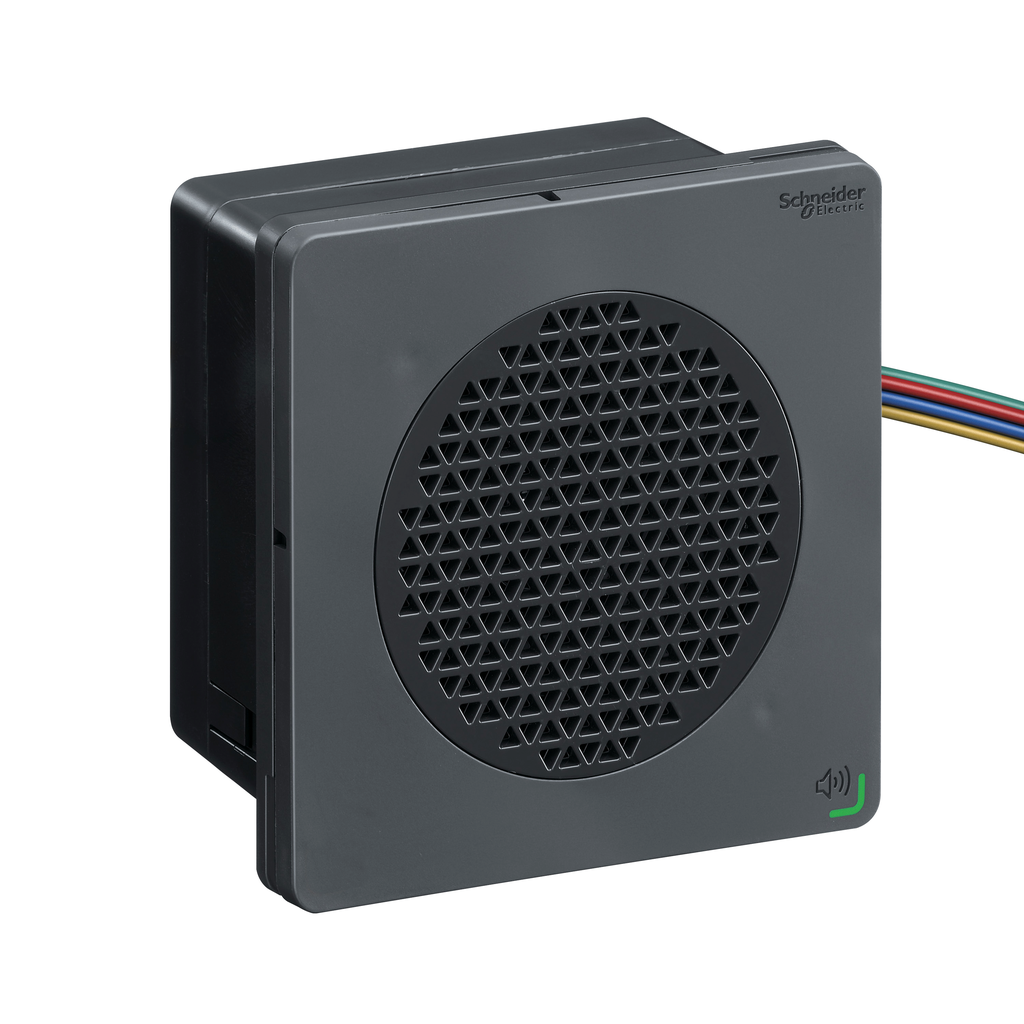

XVSV9BBP
Editable voice alarms, Harmony XVS, black, mounting 96mm DIN rail, PNP, 12...24V DC
This editable electronic alarm is an accessory designed as an audible and signaling unit for custom assembly. It has a voice signal and its sound acoustic level is adjustable. It has a DIN96 connector and is dust resistant, impact resistant, high pressure washer resistant, vibration resistant, corrosion resistant thanks to its IP69 / IP67, IP66 protection, making it ideal for operation in harsh environments.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1311010EN |
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1311010EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Discrete Output Type | PNP |
| Ambient Air Temperature For Operation | -10-55 °C |
| Standards | IEC 60947-5-1 |
| Pollution Degree | 2 |
| Ip Degree Of Protection |
|
| Vibration Resistance | 7 gn |
| Signalling Type | adjustable vocal sound |
| Ambient Air Temperature For Storage | -20-60 °C |
| Noise Level | 0-97 dB stop or suppress)1 m |
| Relative Humidity | 35-85 % without condensation |
| Protective Treatment | TC |
| Country of Origin | Indonesia |
| Width | 105 mm |
| Height | 105 mm |
| Weight | 0.268 kg |
| Range Of Product | Harmony XVS |
| Product Or Component Type | editable electronic alarm |
| Beacon Or Indicator Bank Unit Type | sound unit |
| Device Short Name | XVSV |
| Height | 105 mm |
| Inrush Current | 30 A |
| Clamping Connection Capacity | <= 1 x 1.5 mm² |
| Mounting Support | 96 mm DIN rail |
| Power Consumption In W | 3.8 W |
| Mounting Diameter | 105 mm |
| [Ui] Rated Insulation Voltage | 250 V |
| Marking | CE |
| Net Weight | 0.268 kg |
| [Uimp] Rated Impulse Withstand Voltage | 2.5 kV IEC 60947-1 |
| Input Type |
|
| Current Consumption | 160 mA 24 V DC |
| [Us] Rated Supply Voltage | 12...24 V DC |
| Color | dark grey |
| Overvoltage Category | class II IEC 61140 |
| Assembly Style | ready assembled |
| Material |
|
| Width | 105 mm |
| Depth | 50.1 mm |
| Device Application |
|
| Associated Fuse Rating | 1 A |
| [Ue] Rated Operational Voltage | 10...30 V DC |
