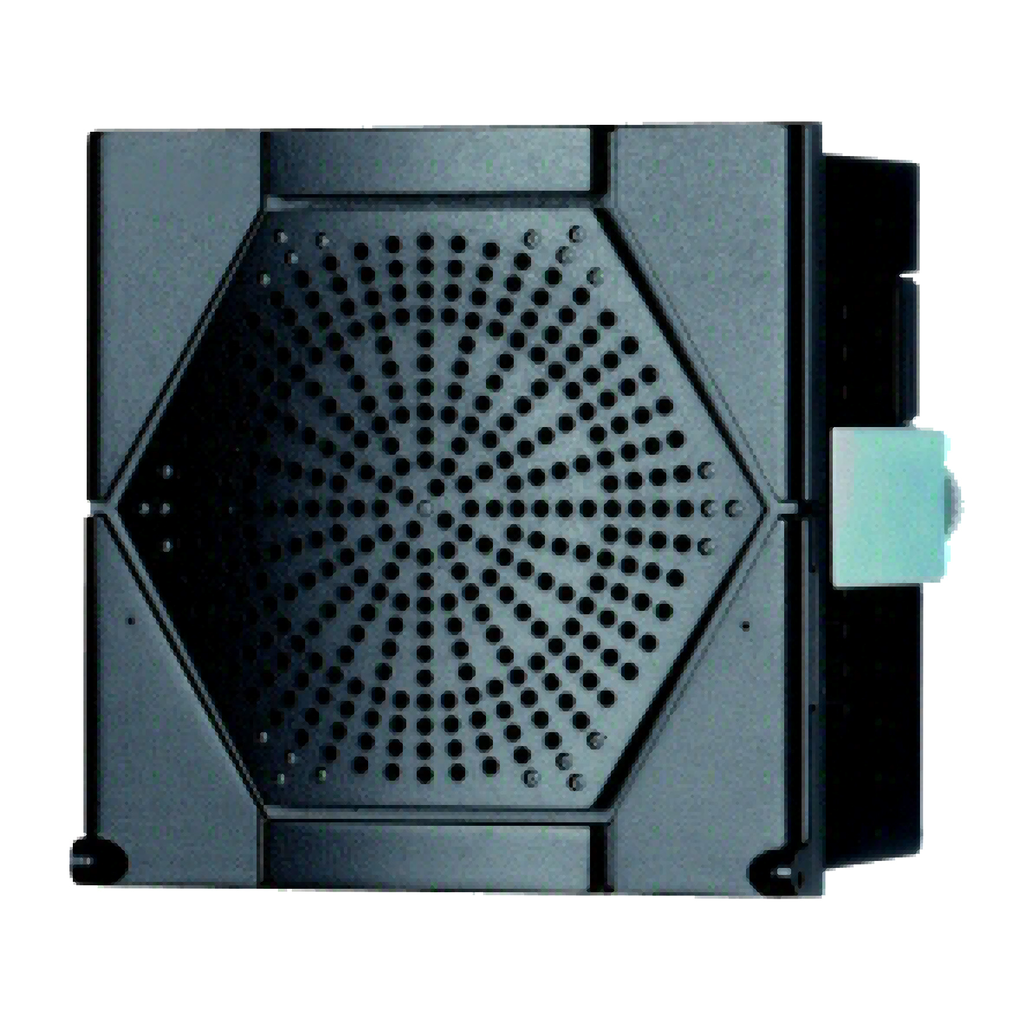

XVS96BMBN
Electronic alarm, Harmony XVS, black, NPN, mounting support DIN 96, 0…96dB, 16tones, 4 channels, 12…24V AC DC
This electronic alarm is an accessory designed as an audible and signaling unit for custom assembly It has a DIN72 connector and is dust resistant and water resistant thanks to its IP54 protection, making it ideal for operation in harsh environments The alarm is black High performance International standards & certifications (IP54)
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Discrete Output Type | NPN |
|---|---|
| Ambient Air Temperature For Operation | -20-50 °C |
| Standards |
|
| Ip Degree Of Protection | panel mounted IP54 IEC 60529 |
| Signalling Type | 16 tones alarm |
| Ambient Air Temperature For Storage | -35-70 °C |
| Noise Level | 0-96 dB continuous or intermittent tone)1 m |
| Protective Treatment | TC |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1311010EN |
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1311010EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Height | 96 mm |
| Clamping Connection Capacity | <= 1 x 1.5 mm² |
| Mounting Support | 96 mm DIN rail |
| Marking | CE |
| Net Weight | 0.4 kg |
| [Uimp] Rated Impulse Withstand Voltage | 0.8 kV |
| Current Consumption |
|
| [Us] Rated Supply Voltage | 12...24 V DC |
| Color | Black |
| Overvoltage Category | class II IEC 61140 |
| Material |
|
| Width | 96 mm |
| Depth | 58.1 mm |
| Country of Origin | Japan |
| Width | 96 mm |
| Height | 96 mm |
| Weight | 0.4 kg |
| Range Of Product | Harmony XVS |
| Product Or Component Type | electronic alarm |
| Device Short Name | XVS |
