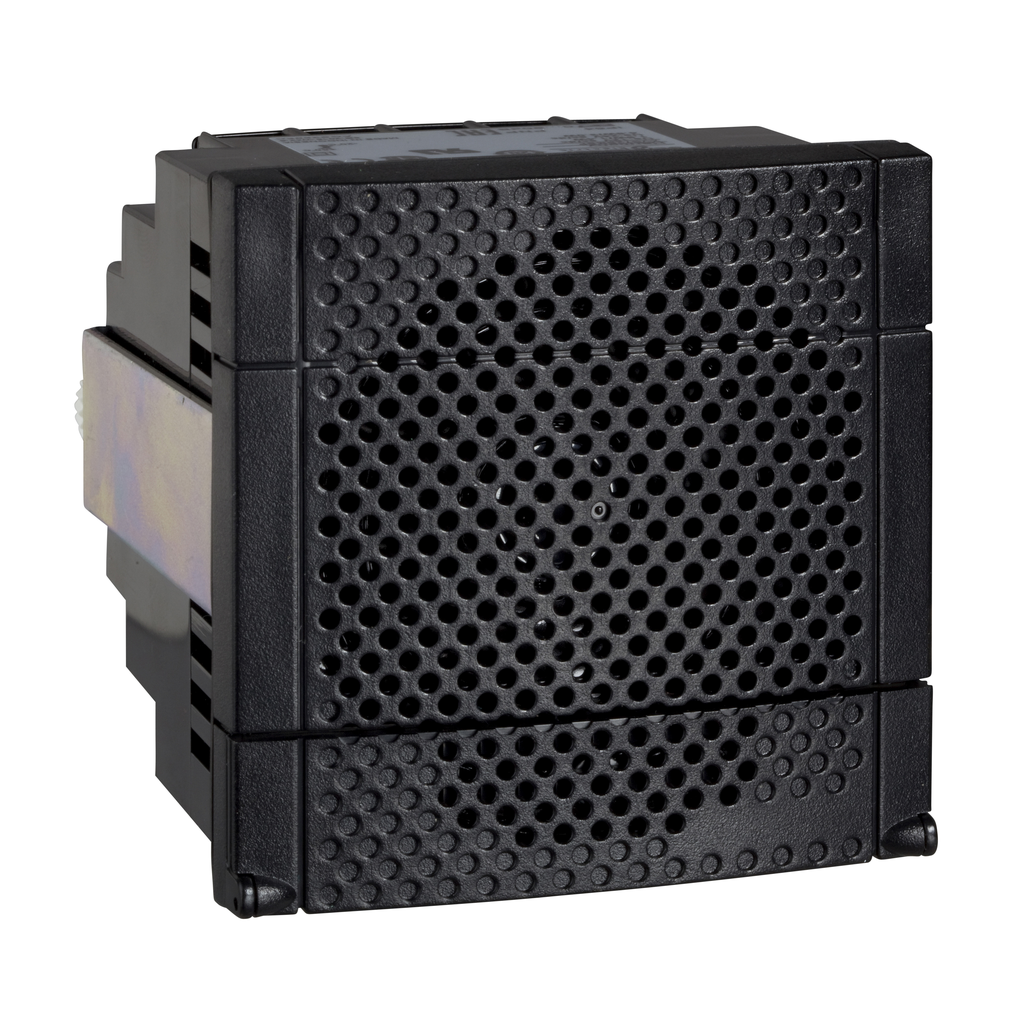

Electronic alarm, Harmony XVS, black, PNP, mounting support DIN 72, 0…90dB, 16tones, 4 channels, 12…24V DC
This black electronic alarm is part of the range of multi sound sirens and alarms Harmony XVS. This multisound alarm provides 16 tones and is supplied pre-cabled. It can be supplied with 12V to 24V DC and features PNP output type. It allows imple integration with your applications featuring a compact body that’s 20% thinner than the competition. Its protection index is IP54. It weighs 180g. It provides PC (polycarbonate) terminal cover and ABS (acrylonitrile butadiene-styrene) body part. It is designed for long distance signaling applications, used mainly on conveyor belts, automated industrial trucks and on the doors of electrical control panels. It is CE, UL and CSA certified. It can be mounted on 72mm DIN rail.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Harmony XVS |
|---|---|
| Product Or Component Type | electronic alarm |
| Device Short Name | XVS |
| Warranty | 18 months |
| Height | 72 mm |
| Clamping Connection Capacity | <= 1 x 1.5 mm² |
| Mounting Support | 72 mm DIN rail |
| Marking | CE |
| Net Weight | 0.18 kg |
| [Uimp] Rated Impulse Withstand Voltage | 0.8 kV |
| Current Consumption |
|
| [Us] Rated Supply Voltage | 12...24 V DC |
| Color | Black |
| Overvoltage Category | class II EN/IEC 61140 |
| Material |
|
| Width | 72 mm |
| Depth | 69.3 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1311010EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1311010EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications | UR |
| Discrete Output Type | PNP |
| Ambient Air Temperature For Operation | -10-50 °C |
| Standards |
|
| Ip Degree Of Protection | panel mounted IP54 EN/IEC 60529 |
| Signalling Type | 16 tones alarm |
| Ambient Air Temperature For Storage | -35-70 °C |
| Noise Level | 0-90 dB continuous or intermittent tone)1 m |
| Protective Treatment | TC |
