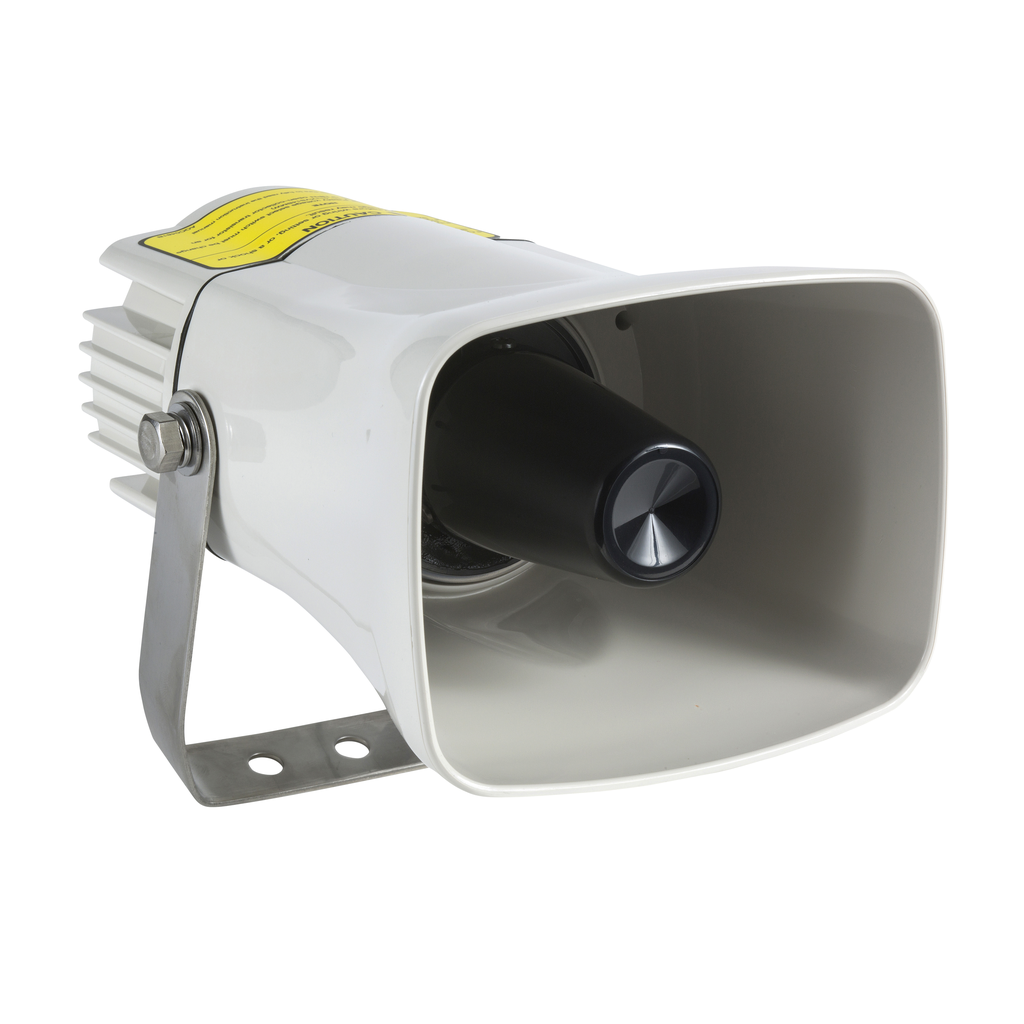

XVS14GMW
Multisound siren, prewired, Harmony XVS, white colour, 0...105 dB, 43 tones, 120V AC
Specifications
| Product Certifications | UL |
|---|---|
| Ambient Air Temperature For Operation | -10-50 °C |
| Standards |
|
| Ip Degree Of Protection | IP53 conforming to IEC 60529 |
| Signalling Type | 43 tones siren |
| Ambient Air Temperature For Storage | -35-70 °C |
| Overvoltage Category | class II IEC 61140 |
| Noise Level | 0-105 dB continuous or intermittent tone)1 m |
| [Us] Rated Supply Voltage | 120 V AC |
| Protective Treatment | TC |
| Warranty | 18 months |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1411024EN |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1411024EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Height | 114 mm |
| Mounting Support | bracket |
| Fixing Mode | 3 holes Ø 9 mm |
| Marking | CE |
| Current Consumption | 100 mA 120 V |
| Net Weight | 1.2 kg |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV |
| Color | White |
| Electrical Connection |
|
| Material |
|
| Width | 140 mm |
| Depth | 223 mm |
| Country of Origin | United States |
| Width | 140 mm |
| Height | 114 mm |
| Weight | 1.2 kg |
| Range Of Product | Harmony XVS |
| Product Or Component Type | multisound siren |
| Device Short Name | XVS |
