XVS10GMW

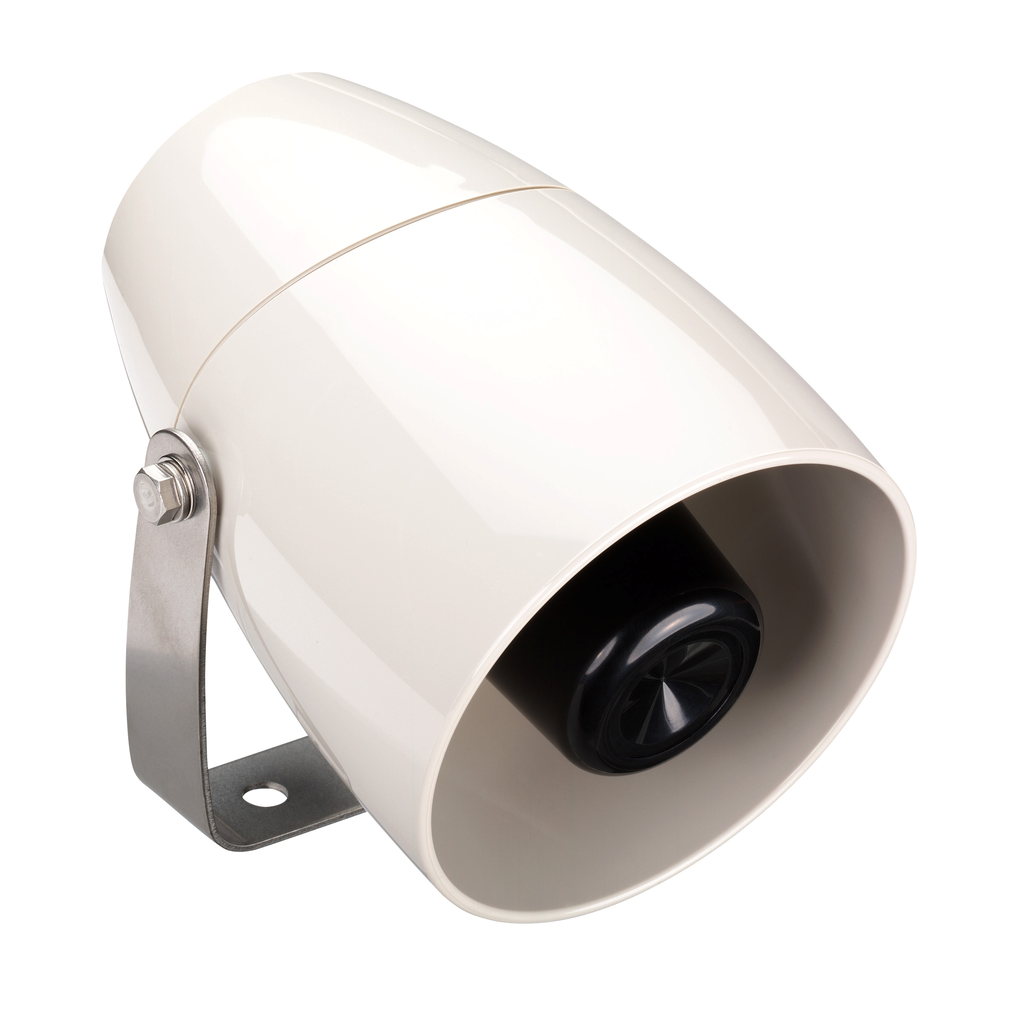

Multisound siren, Harmony XVS, white colour, 106dB, 2tones, 120V AC
This Schneider Electric Harmony XVS Multi-sound Siren is white and has PC body material It is dust resistant and water resistant thanks to its IP53 protection, making it ideal for operation in harsh environments High performance International standards & certifications (IP53)
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Ambient Air Temperature For Operation | -30-50 °C |
|---|---|
| Standards |
|
| Ip Degree Of Protection | IP53 |
| Ambient Air Temperature For Storage | -35-70 °C |
| Electrical Shock Protection Class | class II EN/IEC 61140 |
| Protective Treatment | TC |
| Warranty | 18 months |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1411024EN |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1411024EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Height | 114 mm |
| Clamping Connection Capacity | <= 1 x 1.5 mm² |
| Current Consumption | 80 mA 120 V |
| Marking | CE |
| Net Weight | 1 kg |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV |
| Electrical Connection | cable 6.5-8.5 mm |
| Material | PC: body |
| Width | 114 mm |
| Depth | 153.2 mm |
| Country of Origin | Indonesia |
| Width | 114 mm |
| Height | 114 mm |
| Weight | 1 kg |
| Range Of Product | Harmony XVS |
| Product Or Component Type | siren |
| Color | White |
| Signalling Type | 2 tones siren |
| Noise Level | 106-106 dB continuous or intermittent tone)1 m |
| [Us] Rated Supply Voltage | 120 V AC |
| Device Short Name | XVS |
