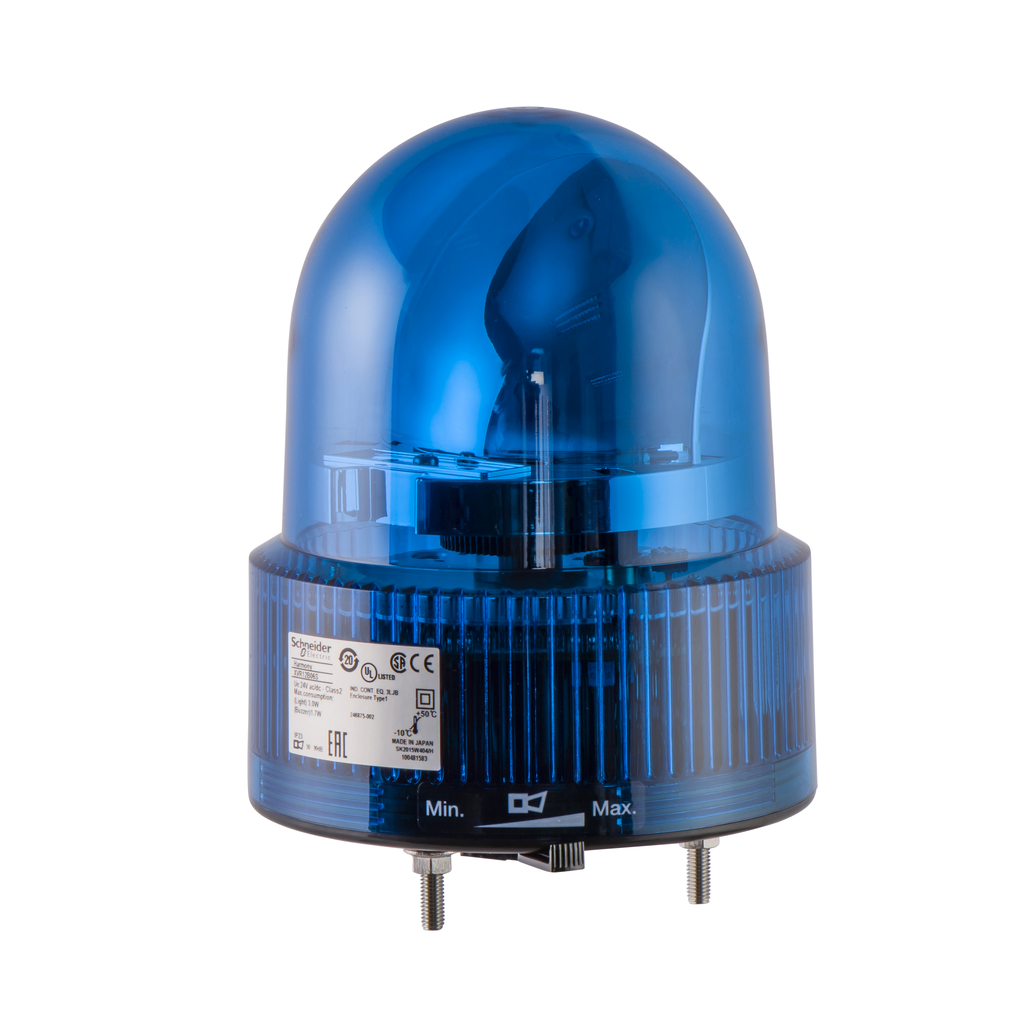

XVR12B06 - Prewired rotating mirror beacon, Harmony XVR, 120mm, blue, without buzzer, 24V AC/DC

XVR12B06

Add to Quote Catalogue

Ambient Air Temperature For Operation	-10-50 °C
Standards	IEC 61000-6-2 IEC 61000-6-4
Ambient Air Temperature For Storage	-35-70 °C
Electrical Shock Protection Class	class II IEC 61140
Protective Treatment	TC
Warranty	18 months
Rohs Exemption Information	Yes
Environmental Disclosure	ENVPEP1402018EN
Sustainable Offer Status	Green Premium product
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	X
Circularity Profile	ENVEOLI1402018EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Clamping Connection Capacity	0.83 mm²
Flashing Frequency	2.3 Hz
Cable Length	400 mm
Marking	CE
Net Weight	0.5 kg
[Uimp] Rated Impulse Withstand Voltage	0.8 kV
Current Consumption	125 mA
Awg Gauge	AWG 18
Supply Voltage Limits	19-30 V DC 21.6-26.4 V AC
Product Mounting	by 3 M5 screws
Material	ABS (acrylonitrile butadiene-styrene): body part AS: globe
Cad Overall Width	120 mm
Cad Overall Depth	120 mm
Country of Origin	Japan
Length	400 mm
Width	120 mm
Weight	0.5 kg
Range Of Product	Harmony XVR
Mounting Diameter	120 mm
Light Source	high luminosity LED, blue
Product Or Component Type	prewired rotating mirror beacon
Ip Degree Of Protection	IP23 IEC 60529
Sound Signalling	without
Device Short Name	XVR
[Us] Rated Supply Voltage	24 V AC/DC
