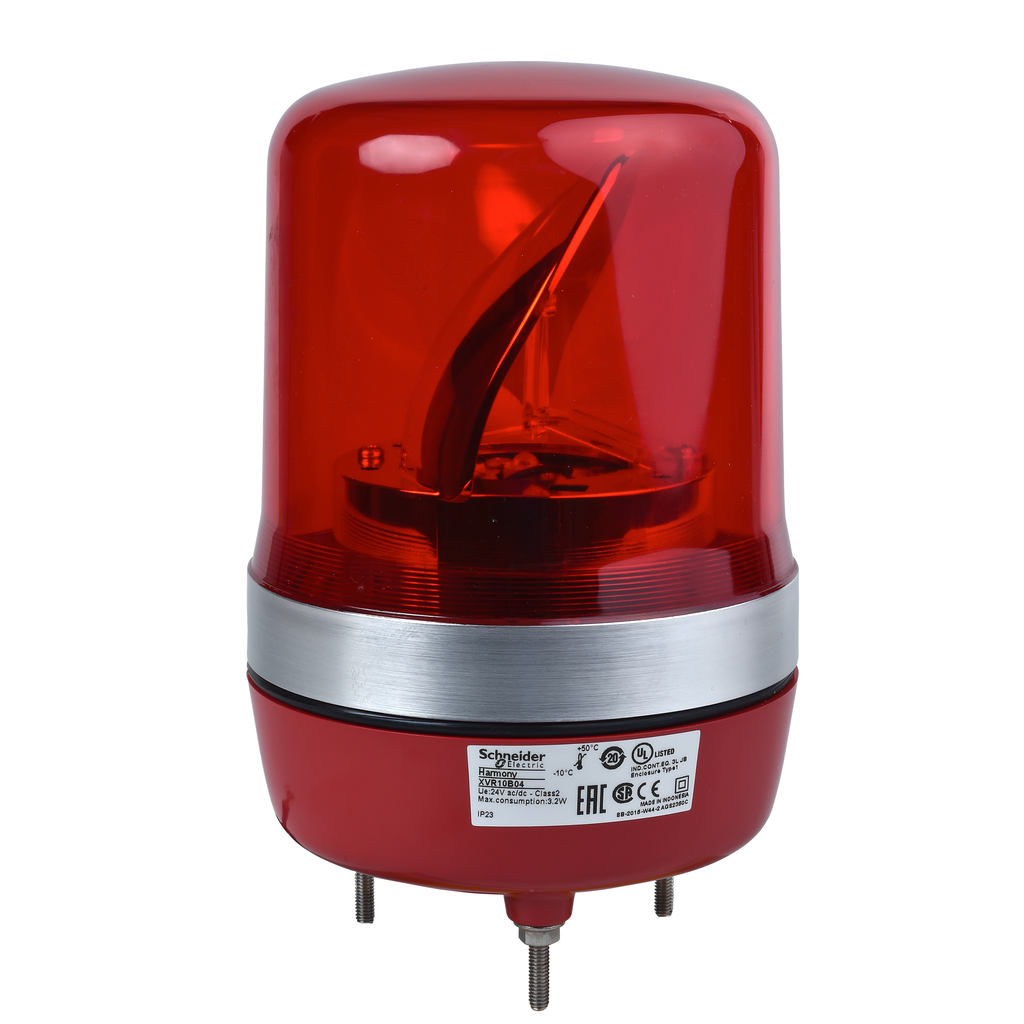

XVR10B04
Prewired rotating mirror beacon, Harmony XVR, 106mm, red, without buzzer, 24V AC/DC
Specifications
| Product Certifications | UL |
|---|---|
| Ambient Air Temperature For Operation | -10-50 °C |
| Standards |
|
| Ambient Air Temperature For Storage | -35-70 °C |
| Electrical Shock Protection Class | class II IEC 61140 |
| Protective Treatment | TC |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Environmental Disclosure | ENVPEP1402018EN |
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1402018EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Clamping Connection Capacity | 0.83 mm² |
| Flashing Frequency | 2.3 Hz |
| Cable Length | 400 mm |
| Marking | CE |
| Net Weight | 0.5 kg |
| [Uimp] Rated Impulse Withstand Voltage | 0.8 kV |
| Current Consumption | 125 mA |
| Awg Gauge | AWG 18 |
| Supply Voltage Limits |
|
| Product Mounting | by 3 M4 screws |
| Material |
|
| Cad Overall Width | 106 mm |
| Cad Overall Depth | 106 mm |
| Country of Origin | Indonesia |
| Length | 400 mm |
| Width | 106 mm |
| Weight | 0.5 kg |
| Range Of Product | Harmony XVR |
| Mounting Diameter | 106 mm |
| Light Source | high luminosity LED, red |
| Product Or Component Type | prewired rotating mirror beacon |
| Ip Degree Of Protection |
|
| Sound Signalling | without |
| Device Short Name | XVR |
| [Us] Rated Supply Voltage | 24 V AC/DC |
