XVLA143

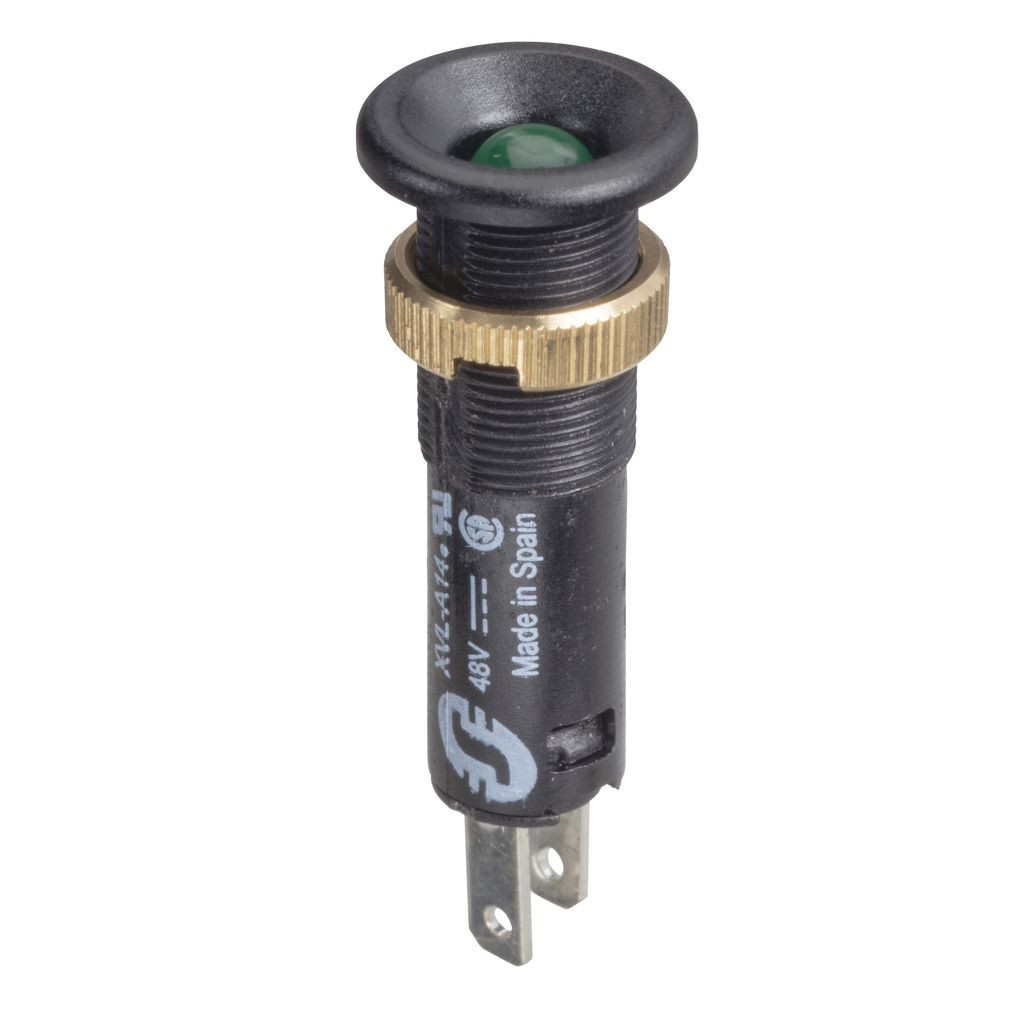

LED pilot light with black bezel, Harmony XVL, green, 8mm, IP40, protruding LED, faston connectors, 48V
This Harmony XVLA143 is a green pilot light diameter 8mm. Its degree of protection is IP40. It has protruding LED included, 48V , faston connection. It is part of the range Harmony XVL diameter 8-12 mm plastic pilot lights.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Ambient Air Temperature For Operation | -25-70 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Overvoltage Category |
|
| Protective Treatment | TC |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP111048EN |
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Height | 12 mm |
| Terminals Description Iso N°1 | (X1-X2)PL |
| Bulb Lifespan | 100000 h |
| Net Weight | 0.003 kg |
| Current Consumption | 10 mA |
| [Ui] Rated Insulation Voltage | 50 V IEC 60947-1 |
| Connections - Terminals |
|
| Supply Circuit Type | DC |
| Width | 12 mm |
| Depth | 34 mm |
| Nominal Voltage Limit | 0.8...1.1 Un |
| Country of Origin | Spain |
| Width | 12 mm |
| Height | 12 mm |
| Weight | 0.003 kg |
| Range Of Product | Harmony XVL |
| Light Source | protruding LED |
| Mounting Diameter | 8 mm |
| Product Or Component Type | LED pilot light with black bezel |
| Component Name | XVL |
| Ip Degree Of Protection |
|
| [Us] Rated Supply Voltage | 48 V |
| Protection Type |
|
| Light Block Colour | green |
