XVC4B4

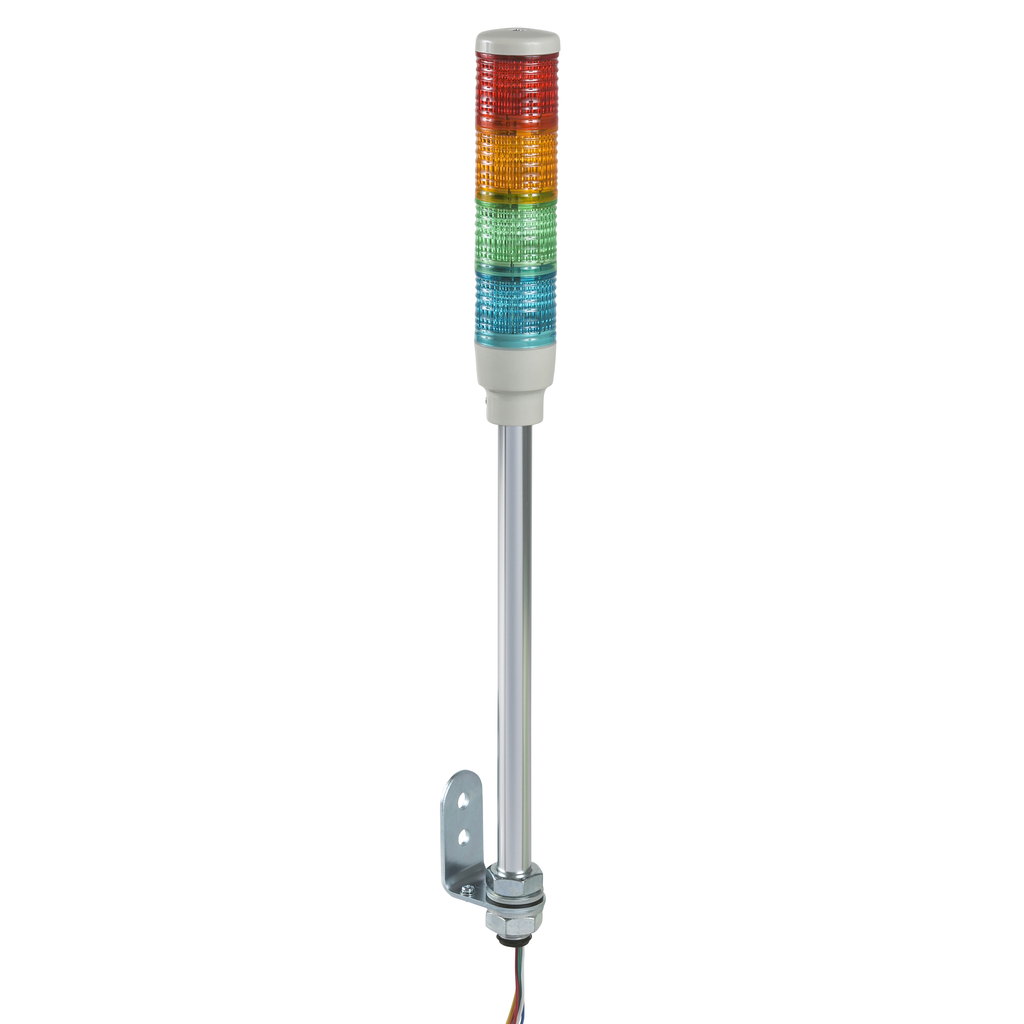

Monolithic pre wired tower light, Harmony XVC, plastic, red orange green blue, 40mm, tube mounting, steady, IP23, 24V AC DC
Specifications
| Product Certifications | UL |
|---|---|
| Ambient Air Temperature For Operation | -10-50 °C |
| Standards |
|
| Ip Degree Of Protection | IP23 vertical surface installation IEC 60529 |
| Ambient Air Temperature For Storage | -35-70 °C |
| Overvoltage Category | class I IEC 61140 |
| Electrical Shock Protection Class | class I IEC 61140 |
| Protective Treatment | TC |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1904008EN |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1904008EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Height | 508.5 mm |
| [Uimp] Rated Impulse Withstand Voltage | 0.8 kV |
| Flashing Frequency | 1 Hz |
| Cable Length | 600 mm |
| Marking | CE |
| Net Weight | 0.56 kg |
| Mounting Location | on support tube, 17 mm |
| Current Consumption | 100 mA |
| [Us] Rated Supply Voltage | 24 V |
| Awg Gauge | AWG 22 |
| Cable Cross Section | 0.33-0.33 mm² |
| Product Mounting | on support tube, 17 mm |
| Material |
|
| Country of Origin | United States |
| Length | 600 mm |
| Height | 508.5 mm |
| Weight | 0.56 kg |
| Range Of Product | Harmony XVC4 |
| Mounting Diameter | 40 mm |
| Light Source |
|
| Product Or Component Type | complete pre-wired monolithic tower light |
| Component Name | XVC |
| Beacon Or Indicator Bank Unit Type | 4 illuminated units |
| Supply Circuit Type | AC/DC |
| Sound Signalling | without |
| Device Short Name | XVC |
