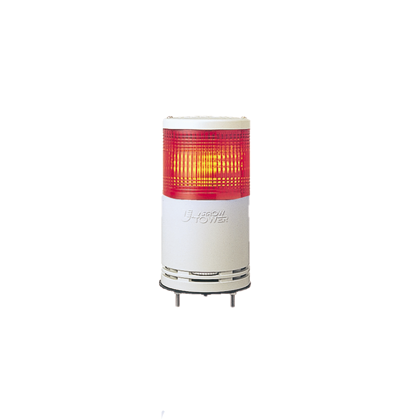

XVC1B1K - Monolithic precabled tower light, Harmony XVC, plastic, red, 100mm, base mounting, steady or flashing, IP54, 24V DC

XVC1B1K

Add to Quote Catalogue

Product Certifications	UL
Ambient Air Temperature For Operation	-30-50 °C
Standards	IEC 61000-6-3 IEC 61000-6-2 IEC 61000-6-4
Ip Degree Of Protection	IP54 IEC 60529
Ambient Air Temperature For Storage	-35-70 °C
Electrical Shock Protection Class	class II IEC 61140
Protective Treatment	TC
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1904008EN
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	X
Circularity Profile	ENVEOLI1904008EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Height	216 mm
[Uimp] Rated Impulse Withstand Voltage	0.8 kV
Cable Length	500 mm
Marking	CE
Net Weight	0.7 kg
Current Consumption	100 mA
Awg Gauge	AWG 18 AWG 22
Flashing Frequency	0.7-3 Hz
Cable Cross Section	0.83-0.83 mm² 0.33-0.33 mm²
Product Mounting	on base
Material	polycarbonate: illuminated unit ABS (acrylonitrile butadiene-styrene): base unit PBT + ABS (UL94-V0): top cover
Country of Origin	Indonesia
Length	500 mm
Height	216 mm
Weight	0.7 kg
Range Of Product	Harmony XVC1
Mounting Diameter	100 mm
Light Source	LED steady or flashing red
Product Or Component Type	complete pre-wired monolithic tower light
Component Name	XVC
[Us] Rated Supply Voltage	24 V
Beacon Or Indicator Bank Unit Type	1 illuminated unit
Supply Circuit Type	DC
Sound Signalling	without
