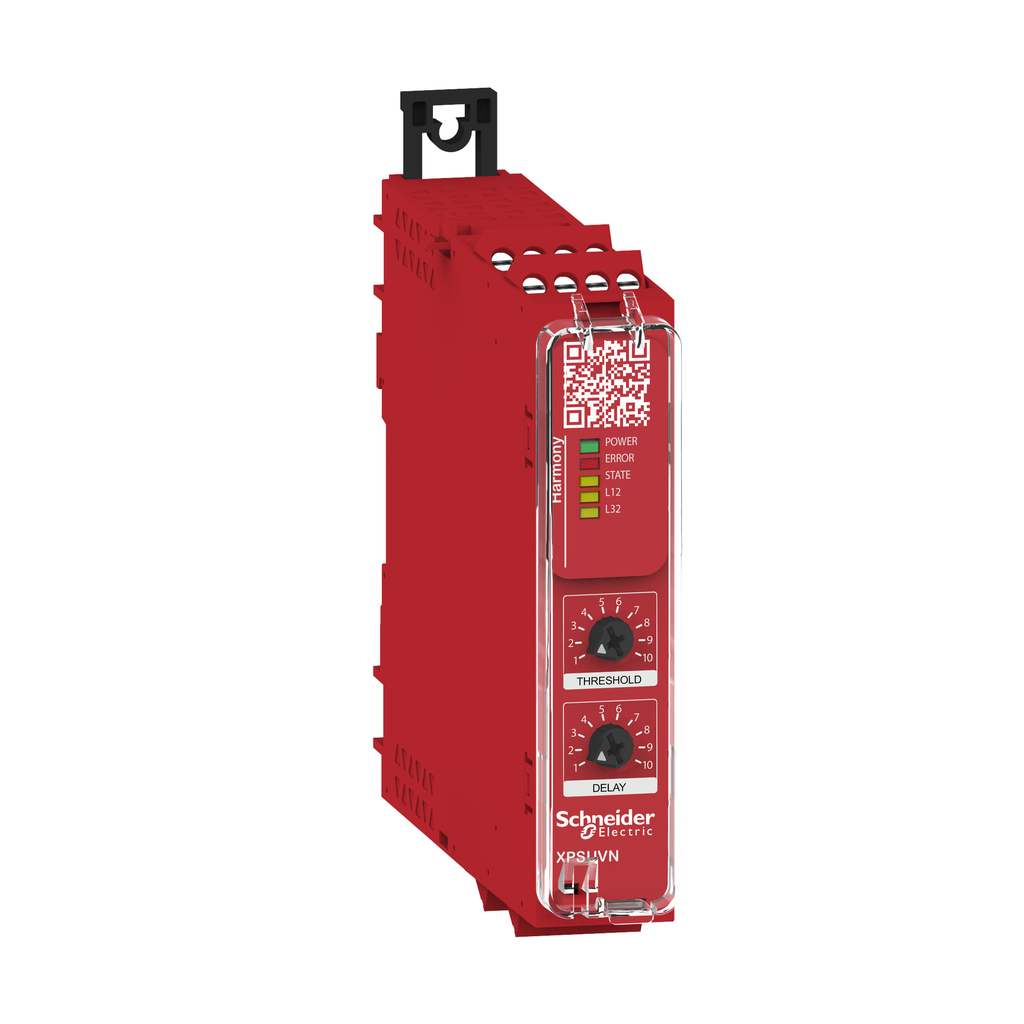

XPSUVN11AP - safety module, Harmony XPS, zero speed monitoring with time delay, 24V AC or DC, screw

XPSUVN11AP

safety module, Harmony XPS, zero speed monitoring with time delay, 24V AC or DC, screw

This safety relay is designed for zero speed monitoring with delayed access to dangerous area. The safety relay is powered with 24V AC/DC, and equipped with a screw removable terminal block. This universal safety module embeds pre-defined safety functions, or selectable safety functions via rotary selectors. This safety relay embeds 3 safety inputs, 1 NO output configurable between 0,5s and 60s, and 2solid state diagnostic outputq with complete status information. The maximum safety level achieved by this safety relay is PLe/Category 3 conforming to ISO 13849-1, SILCL 3 conforming to IEC 62061 and SIL 3 conforming to IEC 61508. This safety relay weighs 0,200kg. Its dimensions are 22,5mm (Width) x 120mm (Depth) x 100mm (Height). This safety relays is suitable for applications such as Food and Beverage, Hoisting, Material Handling, Material Working, Packaging. This safe relay conforms to IEC 60947-5-1, IEC 61508-1, IEC 61508-2/-3, ISO 13849-1, IEC 62061 functional safety standards, is certified by cULus, TÜV. Harmony safety relays are compatible with Modicon logic controllers. This relay is mounted on a 35mm symmetrical DIN rail. Harmony XPS Basic and Universal safety relays are the first choice for managing single safety functions easily, typically in machines of simple to medium complexity. Harmony XPS Universal is the first choice for a broad range of simple to mid-complex machines.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Country of Origin	Indonesia
Width	22.5 mm
Height	100 mm
Weight	0.2 kg
Product Certifications	TÜV cULus
[Us] Rated Supply Voltage	24 V AC - 15...10 % 24 V DC - 20...20 %
Range Of Product	Harmony Safety Automation
Product Or Component Type	safety module
Safety Module Name	XPSUVN
Number Of Additional Circuits	2 solid state outputs
Output Type	relay, 1 NO, volt-free
Safety Module Application	for zero speed detection
Safety Reliability Data	MTTFd > 30 years ISO 13849-1 Dcavg = 98.9 % ISO 13849-1 PFHd = 2.39E-9 1/h ISO 13849-1 HFT = 1 IEC 62061 PFHd = 2.39E-9 1/h IEC 62061 SFF > 99% IEC 62061 HFT = 1 IEC 61508-1 PFHd = 2.39E-9 1/h IEC 61508-1 SFF > 99% IEC 61508-1 type = B IEC 61508-1
Function Of Module	monitoring 3-phase motor monitoring 3-phase motor with star-delta starting monitoring 3-phase motor with variable number of poles monitoring 3-phase motor with variable number of poles and star-delta starting monitoring dc motor monitoring servo motor monitoring 3-phase motor supplied by variable speed drive monitoring 3-phase motor supplied by servo drive controlling enegization to open of guard switch type XCSE, XCSLE, XCSLF, XCST
Safety Level	can reach PL e/category 3 for normally open relay contact ISO 13849-1 can reach SILCL 3 for normally open relay contact IEC 62061 can reach SIL 3 for normally open relay contact IEC 61508
Height	100 mm
[Ith] Conventional Free Air Thermal Current	6 A NO relay output circuit
Mounting Support	35 mm symmetrical DIN rail
Power Consumption In W	2.0 W
Minimum Output Voltage	5 V relay output
Minimum Output Current	10 mA relay output
Time Delay	0.5 s 1 s 2 s 3 s 5 s 8 s 12 s 20 s 35 s 60 s
Associated Fuse Rating	6 A gG relay output IEC 60947-1
Local Signalling	LED green power power ON LED red error error LED yellow state status LED yellow L12 input line comparison LED yellow L32 input line comparison
[Uimp] Rated Impulse Withstand Voltage	4 kV II IEC 60947-1
Net Weight	0.2 kg
Standards	IEC 60947-5-1 IEC 61508-1 functional safety standard IEC 61508-2 functional safety standard IEC 61508-3 functional safety standard IEC 61508-4 functional safety standard IEC 61508-5 functional safety standard IEC 61508-6 functional safety standard IEC 61508-7 functional safety standard ISO 13849-1 functional safety standard IEC 62061 functional safety standard
[Ui] Rated Insulation Voltage	690 V phase to phase 2)IEC 60947-1 400 V phase to earth 2)IEC 60947-1
[Ie] Rated Operational Current	5 A AC-1 for normally open relay contact 3 A AC-15 for normally open relay contact 5 A DC-1 for normally open relay contact 3 A DC-13 for normally open relay contact
Power Consumption In Va	5.5 VA
Input Voltage	690 V
Connections - Terminals	removable screw terminal block solid or flexible 0.2...2.5 mm² removable screw terminal block flexible with ferrule 0.25...2.5 mm² single conductor removable screw terminal block solid or flexible 0.2...1.5 mm² twin conductor removable screw terminal block flexible with ferrule 2 x 0.25...1 mm² without cable end, with bezel removable screw terminal block flexible with ferrule 2 x 0.5...1.5 mm² with cable end, with bezel
Width	22.5 mm
Depth	120 mm
Input Detection Threshold	50 mV 65 mV 85 mV 110 mV 140 mV 180 mV 230 mV 300 mV 400 mV 500 mV
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1811003EN
Sustainable Offer Status	Green Premium product
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI1811003EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Ambient Air Temperature For Operation	-25-55 °C
Ip Degree Of Protection	IP20 terminals)IEC 60529 IP40 housing)IEC 60529 IP54 mounting area)IEC 60529
Ambient Air Temperature For Storage	-40-70 °C
Relative Humidity	5-95 % non-condensing
