XPSUEP34AC - Safety module, Harmony Safety Automation, Cat.4, Expansion use with Universal range, 48-240v AC/DC, spring

XPSUEP34AC

Safety module, Harmony Safety Automation, Cat.4, Expansion use with Universal range, 48-240v AC/DC, spring

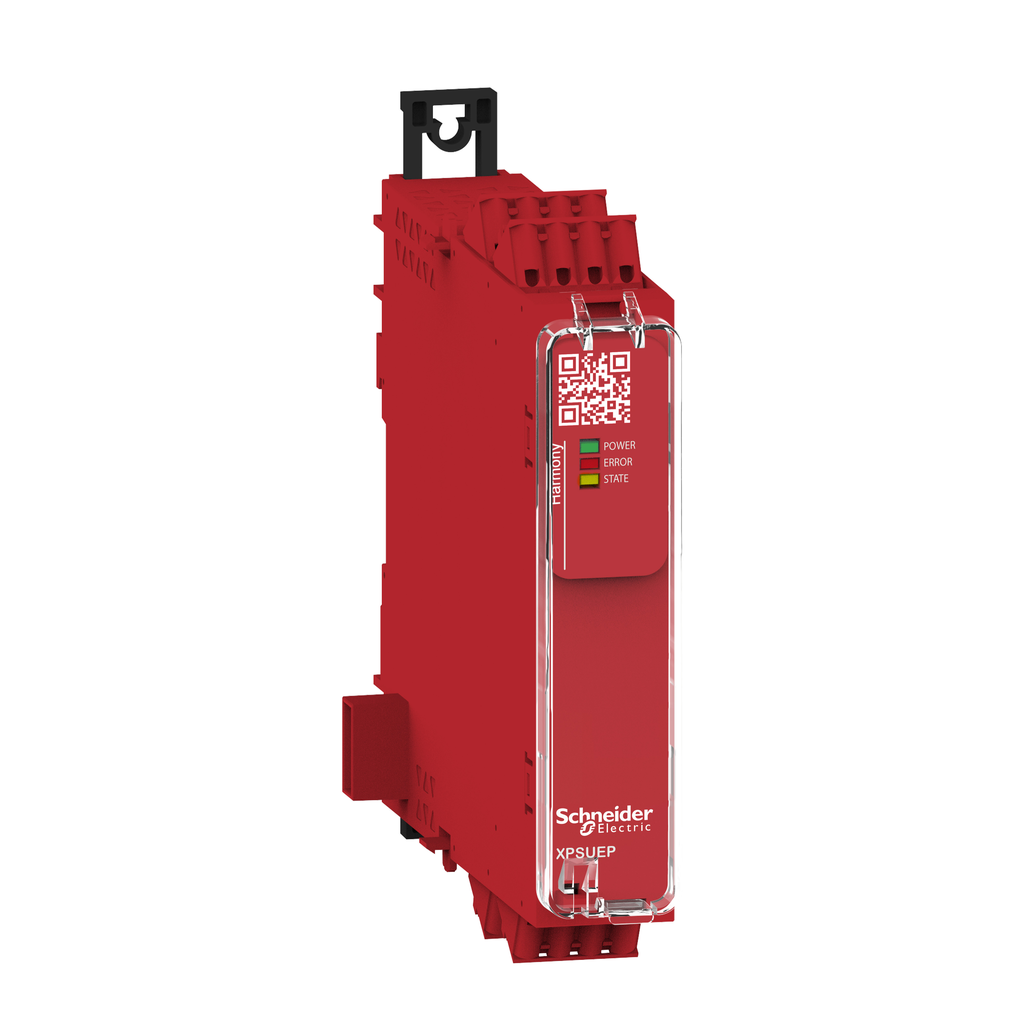

This safety relay is designed for extending the number of safety contacts. The safety relay is powered with 48-240V AC/DC and equipped with a spring removable terminal block. This universal safety module embeds pre-defined safety functions, or selectable safety functions via rotary selectors. This safety relay embeds a safety extension bus, 4 NO and 2 single NC safety outputs. The maximum safety level achieved by this safety relay is PLe/Category 4 conforming to ISO 13849-1, SILCL 3 conforming to IEC 62061, SIL 3 conforming to IEC 61508. This safety relay weighs 0,200kg. Its dimensions are 22,5mm (Width) x 120mm (Depth) x 100mm (Height). This safety relay weighs 0,200kg. Its dimensions are 22,5mm (Width) x 120mm (Depth) x 100mm (Height). This safety relays is suitable for applications such as Food and Beverage, Hoisting, Material Handling, Material Working, Packaging. This safe relay conforms to IEC60947-5-1, IEC61508-1/2/3, ISO13849-1, IEC62061 functional safety standards, is certified by cULus, TÜV, EAC, CCC and KC marking. XPSUEP can be only used with XPSUAF, XPSUAK, XPSUAT, XPSUDN and XPSUS safety modules. This relay is mounted on a 35mm symmetrical DIN rail. Harmony XPS Basic and Universal safety relays are the first choice for managing single safety functions easily, typically in machines of simple to medium complexity. Harmony XPS Universal is the first choice for a broad range of simple to mid-complex machines.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1811003EN
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI1811003EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Product Certifications	TÜV cULus
Ip Degree Of Protection	IP20 terminals)IEC 60529 IP40 housing)IEC 60529 IP54 mounting area)IEC 60529
Standards	IEC 60947-5-1 IEC 61508-1 functional safety standard IEC 61508-2 functional safety standard IEC 61508-3 functional safety standard IEC 61508-4 functional safety standard IEC 61508-5 functional safety standard IEC 61508-6 functional safety standard IEC 61508-7 functional safety standard ISO 13849-1 functional safety standard IEC 62061 functional safety standard
Ambient Air Temperature For Storage	-25-85 °C
Relative Humidity	5-95 % non-condensing
Height	100 mm
Mounting Support	35 mm symmetrical DIN rail
Minimum Output Voltage	12 V relay output
Minimum Output Current	10 mA relay output
[Ith] Conventional Free Air Thermal Current	8 A
Associated Fuse Rating	10 A gG NO relay output circuit IEC 60947-1 4 A gG NC relay output circuit IEC 60947-1
[Uimp] Rated Impulse Withstand Voltage	4 kV II IEC 60947-1
Net Weight	0.200 kg
Number Of Inputs	0 extension bus 24 V DC 5
Input Compatibility	normally closed circuit ISO 14119 XC limit switch ISO 14119 mechanical contact ISO 14119 normally closed circuit ISO 13850 antivalent pair ISO 14119 OSSD pair IEC 61496-1-2 3-wire proximity sensors PNP
Power Consumption In Va	6.5 VA 240 V AC 50/60 Hz
[Ie] Rated Operational Current	5 A AC-1 for normally open relay contact 3 A AC-15 for normally open relay contact 5 A DC-1 for normally open relay contact 3 A DC-13 for normally open relay contact
Auxiliary Contact Composition	4 NO redundant 2 NC single
[Ui] Rated Insulation Voltage	250 V 2)IEC 60947-1
Power Consumption In W	2 W 48 V DC
Maximum Line Resistance	60 Ohm
Local Signalling	for power ON LED (green) for error LED (red) for safety output status LED (yellow)
Input Protection Type	internal, electronic
Width	22.5 mm
Depth	120 mm
Maximum Response Time On Input Open	20 ms
Country of Origin	France
Width	22.5 mm
Height	100 mm
Weight	0.200 kg
[Us] Rated Supply Voltage	48...240 V AC/DC - 10...10 %
Range Of Product	Harmony Safety Automation
Product Or Component Type	safety module
Safety Module Name	XPSUEP
Connections - Terminals	removable spring terminal block, 0.2...2.5 mm² solid or flexible removable spring terminal block, 0.25...2.5 mm² flexible with ferrule single conductor removable spring terminal block, 0.2...1.5 mm² solid or flexible twin conductor removable spring terminal block, 2 x 0.25...1 mm² flexible with ferrule without cable end, with bezel removable spring terminal block, 2 x 0.5...1.5 mm² flexible with ferrule with cable end, with bezel
Safety Module Application	for extending number of safety contacts
Safety Reliability Data	MTTFd > 30 years ISO 13849-1 Dcavg >= 99 % ISO 13849-1 PFHd = 1.61E-09 ISO 13849-1 HFT = 1 IEC 62061 PFHd = 1.61E-09 IEC 62061 SFF > 99% IEC 62061 HFT = 1 IEC 61508-1 PFHd = 1.61E-09 IEC 61508-1 SFF > 99% IEC 61508-1 type = B IEC 61508-1
Electrical Circuit Type	addition to Preventa XPSU base module
Function Of Module	safety output extension
Safety Level	can reach PL e/category 4 for normally open relay contact ISO 13849-1 can reach SILCL 3 for normally open relay contact IEC 62061 can reach SIL 3 for normally open relay contact IEC 61508 can reach PL c/category 1 for normally closed relay contact ISO 13849-1 can reach SILCL 1 for normally closed relay contact IEC 62061 can reach SIL 1 for normally closed relay contact IEC 61508
