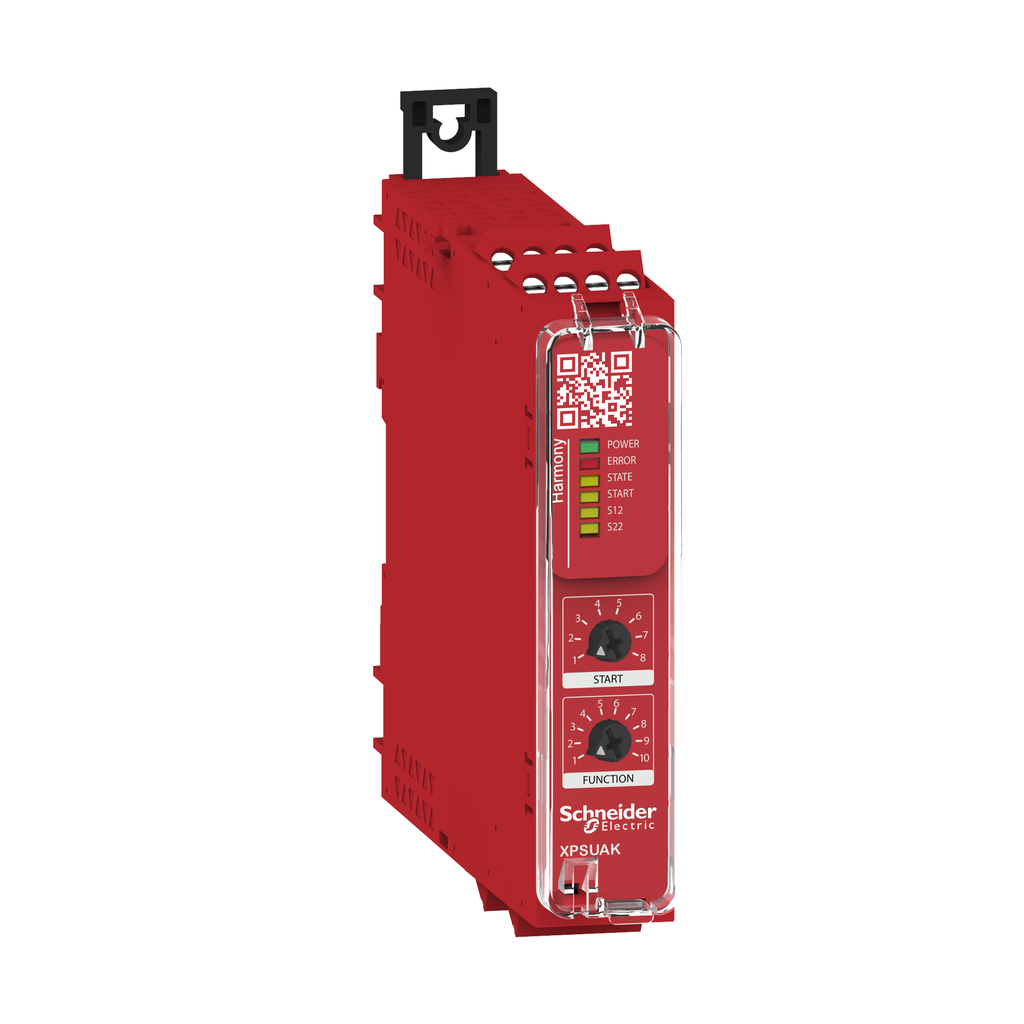

XPSUAK32AP - Safety module, Harmony XPSU, Cat 4, features XPSUAF with PNP or NPN, safety mat, 48 to 240V AC or DC, screw

XPSUAK32AP

Safety module, Harmony XPSU, Cat 4, features XPSUAF with PNP or NPN, safety mat, 48 to 240V AC or DC, screw

This safety relay is designed for monitoring Emergency stop, Guard switch, Magnetic switch, Proximity safety switch, PNP, NPN sensors, RFID safety switch, Safety light curtain or Sensing mat/edges. The safety relay is powered with 48-240V AC/DC, and equipped with a screw removable terminal block. This universal safety module embeds pre-defined safety functions, or selectable safety functions via rotary selectors. This safety relay embeds 2 safety inputs, 3 ON/OFF configurable pulsed outputs, 2 NO, 1 NC safety outputs, and 1 solid state diagnostic output with complete status information. The maximum safety level achieved by this safety relay is PLe/Category 4 conforming to ISO 13849-1, SILC L 3 conforming to IEC 62061, and SIL 3 conforming to IEC 61508. This safety relay weighs 0,200kg. Its dimensions are 22,5mm (Width) x 120mm (Depth) x 100mm (Height). This safety relay weighs 0,200kg. Its dimensions are 22,5mm (Width) x 120mm (Depth) x 100mm (Height). This safety relays is suitable for applications such as Food and Beverage, Hoisting, Material Handling, Material Working, Packaging. This safe relay conforms to IEC60947-5-1, IEC61508-1/2/3, ISO13849-1, IEC62061 functional safety standards, is certified by cULus, TÜV, EAC, CCC and KC marking. Harmony safety relays are compatible with Modicon logic controllers. This relay is mounted on a 35mm symmetrical DIN rail. Harmony XPS Basic and Universal safety relays are the first choice for managing single safety functions easily, typically in machines of simple to medium complexity. Harmony XPS Universal is the first choice for a broad range of simple to mid-complex machines.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Country of Origin	Indonesia
Width	22.5 mm
Height	100 mm
Weight	0.200 kg
[Us] Rated Supply Voltage	48...240 V AC/DC - 10...10 %
Range Of Product	Harmony Safety Automation
Product Or Component Type	safety module
Safety Module Name	XPSUAK
Connections - Terminals	removable screw terminal block, 0.2...2.5 mm² solid or flexible removable screw terminal block, 0.25...2.5 mm² flexible with ferrule single conductor removable screw terminal block, 0.2...1.5 mm² solid or flexible twin conductor removable screw terminal block, 2 x 0.25...1 mm² flexible with ferrule without cable end, with bezel removable screw terminal block, 2 x 0.5...1.5 mm² flexible with ferrule with cable end, with bezel
Safety Module Application	monitoring antivalent contacts for emergency stop, guard and light curtain monitoring monitoring of pressure-sensitive 4-wire protective devices
Safety Reliability Data	MTTFd > 30 years ISO 13849-1 Dcavg >= 99 % ISO 13849-1 PFHd = 1.61E-09 ISO 13849-1 HFT = 1 IEC 62061 PFHd = 1.61E-09 IEC 62061 SFF > 99% IEC 62061 HFT = 1 IEC 61508-1 PFHd = 1.61E-09 IEC 61508-1 SFF > 99% IEC 61508-1 type = B IEC 61508-1
Electrical Circuit Type	NC pair PNP pair antivalent pair OSSD pair
Function Of Module	emergency stop button with 2 NC contacts guard monitoring with 1 or 2 limit switches monitoring 2 PNP sensors magnetic switch monitoring light curtain monitoring RFID switch monitoring of electro-sensitive protection equipment (ESPE) sensing mat/edges proximity sensor monitoring monitoring 1 PNP + 1 NPN sensor
Safety Level	can reach PL e/category 4 for normally open relay contact ISO 13849-1 can reach SILCL 3 for normally open relay contact IEC 62061 can reach SIL 3 for normally open relay contact IEC 61508 can reach PL c/category 1 for normally closed relay contact ISO 13849-1 can reach SILCL 1 for normally closed relay contact IEC 62061 can reach SIL 1 for normally closed relay contact IEC 61508
Product Certifications	TÜV cULus
Ambient Air Temperature For Operation	-25-55 °C
Ip Degree Of Protection	IP20 terminals)IEC 60529 IP40 housing)IEC 60529 IP54 mounting area)IEC 60529
Standards	IEC 60947-5-1 IEC 61508-1 functional safety standard IEC 61508-2 functional safety standard IEC 61508-3 functional safety standard IEC 61508-4 functional safety standard IEC 61508-5 functional safety standard IEC 61508-6 functional safety standard IEC 61508-7 functional safety standard ISO 13849-1 functional safety standard IEC 62061 functional safety standard
Relative Humidity	5-95 % non-condensing
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1811003EN
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI1811003EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Number Of Outputs	3 on/off configurable pulsed output
Height	100 mm
Mounting Support	35 mm symmetrical DIN rail
Minimum Output Voltage	12 V relay output
Minimum Output Current	10 mA relay output
[Ith] Conventional Free Air Thermal Current	8 A
Input/Output Type	semiconductor pulsed diagnostic output 24 V DC, 20 mA Z1, not safety-related
Associated Fuse Rating	10 A gG NO relay output circuit IEC 60947-1
[Uimp] Rated Impulse Withstand Voltage	4 kV II IEC 60947-1
Net Weight	0.200 kg
Type Of Start	automatic/manual/monitored
Number Of Inputs	2 safety input 24 V DC 5
Input Compatibility	normally closed circuit ISO 14119 XC limit switch ISO 14119 mechanical contact ISO 14119 normally closed circuit ISO 13850 antivalent pair ISO 14119 OSSD pair IEC 61496-1-2 3-wire proximity sensors PNP
Power Consumption In Va	6.5 VA 240 V AC 50/60 Hz
[Ie] Rated Operational Current	5 A AC-1 for normally open relay contact 3 A AC-15 for normally open relay contact 5 A DC-1 for normally open relay contact 3 A DC-13 for normally open relay contact 3 A AC-1 for normally closed relay contact 1 A AC-15 for normally closed relay contact 3 A DC-1 for normally closed relay contact 1 A DC-13 for normally closed relay contact
Auxiliary Contact Composition	2 NO + 1 NC
[Ui] Rated Insulation Voltage	250 V 2)IEC 60947-1
Power Consumption In W	3.0 W 48 V DC
Maximum Line Resistance	500 Ohm
Input Protection Type	internal, electronic
Width	22.5 mm
Depth	120 mm
Synchronisation Time Between Inputs	0.5 s 2 s 4 s
