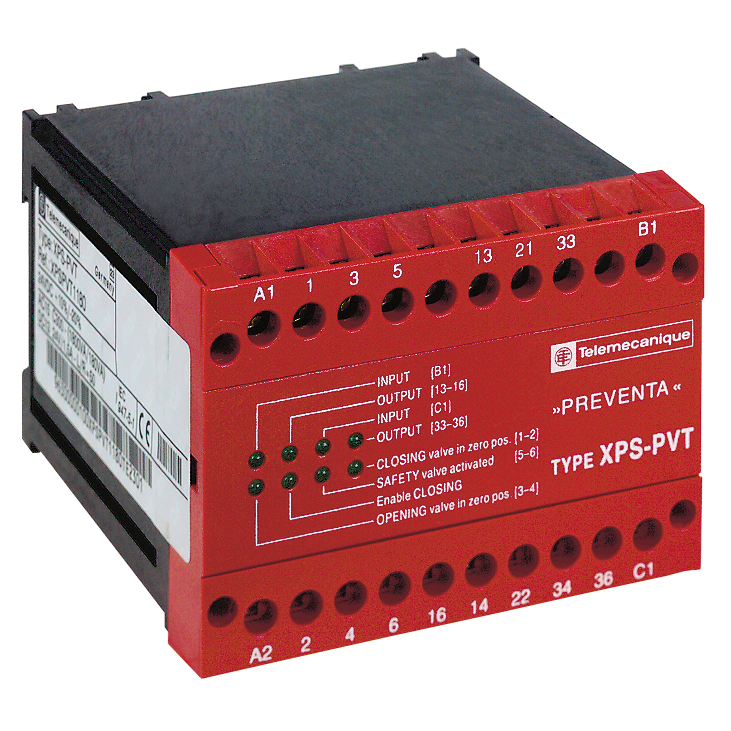

XPSPVT1180 – module XPS-PV – hydraulic valves on linear presses – 24 V DC
XPSPVT1180
module XPS-PV - hydraulic valves on linear presses - 24 V DC
Specifications
Product Certifications
  • CSA
  • UL
  • TÜV
Ambient Air Temperature For Operation -10-55 °C
Standards
  • IEC 693
  • IEC 60204-1
  • IEC 60947-5-1
Ip Degree Of Protection
  • IP20 terminals)IEC 60529
  • IP40 enclosure)IEC 60529
Ambient Air Temperature For Storage -25-85 °C
Warranty 18 months
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP1408008EN
Sustainable Offer Status Green Premium product
Pvc Free Yes
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation X
Circularity Profile ENVEOLI1408008EN
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Height 73 mm
Mounting Support 35 mm symmetrical DIN rail
Power Consumption In W 6 W
Minimum Output Voltage 17 V relay output
Minimum Output Current 10 mA relay output
[Ith] Conventional Free Air Thermal Current 2.5 A
Associated Fuse Rating 4 A gG relay output EN/IEC 60947-5-1, DIN VDE 0660 part 200
Minimum Output Wiping Time 100 ms
[Uimp] Rated Impulse Withstand Voltage 4 kV III IEC 60647-5-1, DIN VDE 0110 part 1
Net Weight 0.54 kg
Connections - Terminals
  • captive screw clamp terminals, 2 x 0.5...2 x 1.5 mm² with cable end
  • captive screw clamp terminals, 2 x 2.5 mm² without cable end
[Ui] Rated Insulation Voltage 300 V 2)IEC 60647-5-1, DIN VDE 0110 part 1
Local Signalling 8 LEDs
Number Of Terminal Blocks 20
Enclosure Material polycarbonate
Width 100 mm
Depth 118 mm
Maximum Response Time On Input Open 15 ms
Breaking Capacity
  • 180 VA holding AC-15 C300 relay output
  • 1800 VA inrush AC-15 C300 relay output
Country of Origin Germany
Width 100 mm
Height 73 mm
Weight 0.54 kg
[Us] Rated Supply Voltage 24 V DC - 10...10 %
Range Of Product Preventa Safety automation
Product Or Component Type Preventa safety module
Enclosure Type removable
Safety Module Name XPSPVT
Output Type relay, 2 NO + 1 NC, volt-free
Safety Module Application for dynamic monitoring of hydraulic valves on linear presses
Safety Reliability Data
  • MTTFd = 50.9 years ISO 13849-1
  • DC = 0...99 % ISO 13849-1
  • PFHd = 2.24E-8 1/h IEC 62061
Function Of Module monitoring hydraulic valves
Safety Level
  • can reach PL e/category 4 ISO 13849-1
  • can reach SILCL 3 IEC 62061
