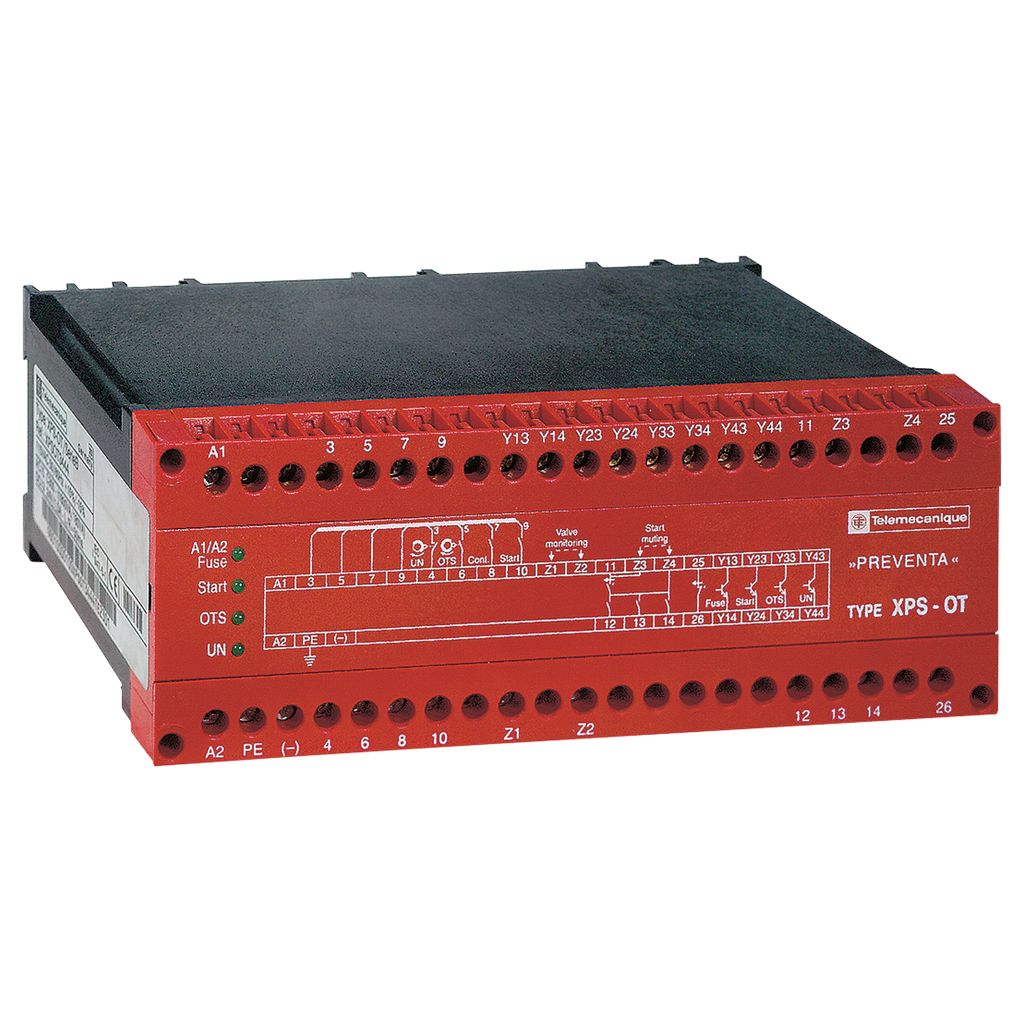

XPSOT3744
module XPSOT - stop at top dead center with automatic overtravel - 230 V AC
Specifications
| Product Certifications |
|
|---|---|
| Ambient Air Temperature For Operation | -10-55 °C |
| Standards |
|
| Ip Degree Of Protection |
|
| Ambient Air Temperature For Storage | -25-85 °C |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1408008EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1408008EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Height | 73 mm |
| Mounting Support | 35 mm symmetrical DIN rail |
| Minimum Output Voltage | 17 V relay output |
| Minimum Output Current | 10 mA relay output |
| [Ith] Conventional Free Air Thermal Current | 2.5 A |
| Associated Fuse Rating | 4 A gG relay output EN/IEC 60947-5-1, DIN VDE 0660 part 200 |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV III IEC 60647-5-1, DIN VDE 0110 part 1 |
| Net Weight | 1.1 kg |
| Connections - Terminals |
|
| [Ui] Rated Insulation Voltage | 300 V 2)IEC 60647-5-1, DIN VDE 0110 part 1 |
| Power Consumption In Va | 12 VA |
| Local Signalling | 4 LEDs |
| Number Of Terminal Blocks | 42 |
| Input Protection Type | internal, electronic |
| Enclosure Material | polycarbonate |
| Width | 200 mm |
| Depth | 118 mm |
| Supply Frequency | 50/60 Hz |
| Maximum Response Time On Input Open | 20 ms |
| Breaking Capacity |
|
| Country of Origin | Indonesia |
| Width | 200 mm |
| Height | 73 mm |
| Weight | 1.1 kg |
| [Us] Rated Supply Voltage | 230 V AC - 15...10 % |
| Range Of Product | Preventa Safety automation |
| Product Or Component Type | Preventa safety module |
| Enclosure Type | removable |
| Safety Module Name | XPSOT |
| Number Of Additional Circuits | 4 solid state outputs |
| Output Type | relay, 3 NO, volt-free |
| Safety Module Application | safety stop with automatic overtravel monitoring and control |
| Safety Reliability Data |
|
| Function Of Module | safety stop with automatic overtravel monitoring and control |
| Safety Level |
|
