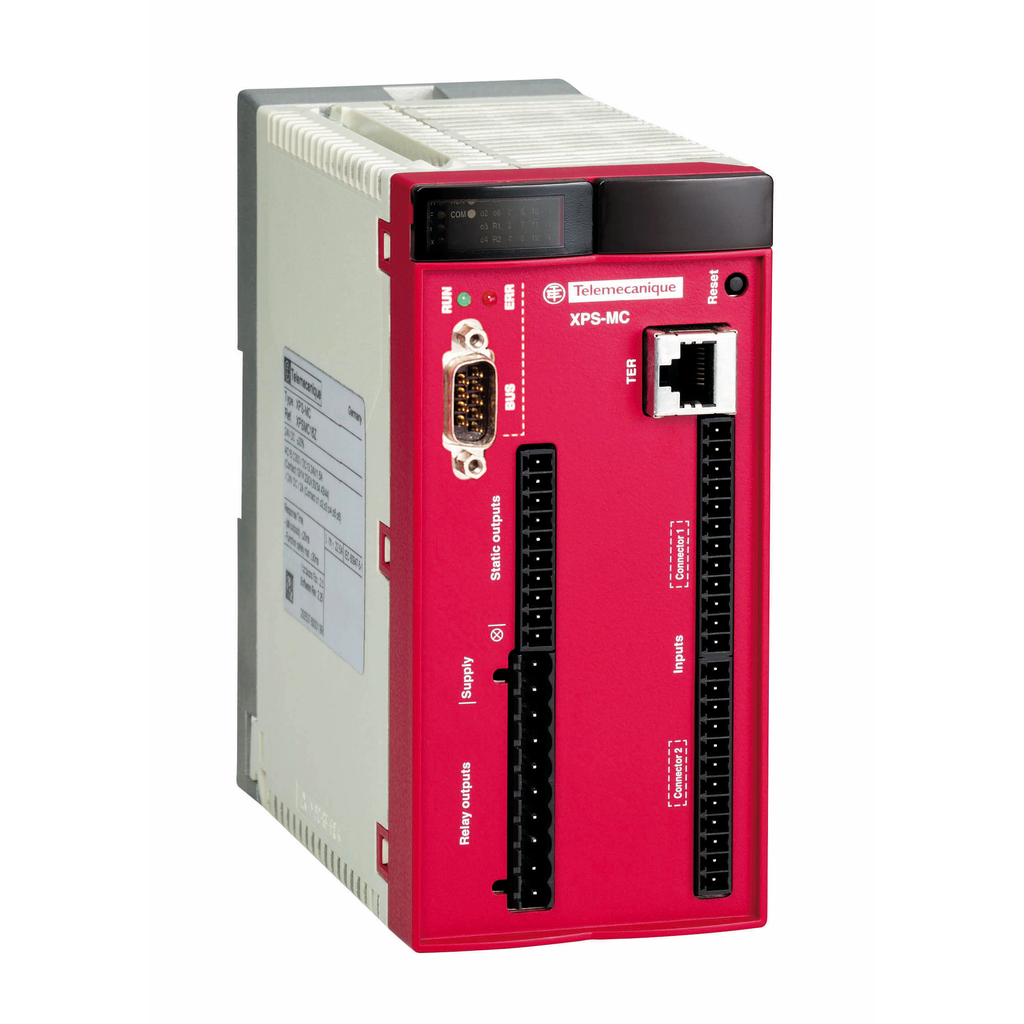

This product is part of the Preventa XPS MP, XPS MC, XPS MCM range, an offer of safety controllers. This safety controller provides 16 inputs and 32 LEDs for signalling. It is a safety controller with a power consumption of 12W, control circuit voltage of 28.8V and a rated supply voltage of 24V DC. Supported communication port protocols are Modbus with RJ45 port, CANopen with 9-way SUB-D male port. It is an IP20 rated product. Its dimensions are 74mm (Width) x 153mm (Depth) x 151.5mm (Height). It weighs 0.82kg. It is designed to provide a solution for safety applications requiring conformity to Performance Level PL e/Category 4 EN/ISO 13849-1 and SIL3 EN/IEC 61508. This product is certified by UL, CSA and TUV. It meets EN 574/ISO 13851, EN 1760-1/ISO 13856-1, EN/IEC 61496-1, EN/IEC 60204-1, EN/IEC 60947-5-1, EN 954-1/EN/ISO 13849-1 and IEC 61508 standards. Simple, it features redundancy principle micro-processor based technology to provide advanced functions, flexibility regarding the choice of safety function and more precise diagnostics are just some of its advantages. Safety controller XPS MC is configured with a simple software environment where functions are mapped to the various controller outputs according to the application requirements.
Brand: Schneider Electric
Add to Quote CatalogueProduct Certifications |
|
---|---|
[Us] Rated Supply Voltage | 24 V DC - 20...20 % |
Range Of Product | Preventa Safety automation |
Standards |
|
Number Of Inputs | 16 |
Product Or Component Type | configurable safety controller |
Safety Module Name | XPSMC |
Type Of Start | configurable |
Communication Port Protocol |
|
Safety Use Category |
|
Safety Level |
|
Warranty | 18 months |
Height | 151.5 mm |
[Ith] Conventional Free Air Thermal Current |
|
Mounting Support | mounting plate |
Output Thermal Current |
|
Power Consumption In W | 12 W |
Minimum Output Voltage | 17 V relay output |
Response Time | configurable : 20 ms or 30 ms with software XPSMCWIN |
Data Format |
|
Minimum Output Current | 10 mA relay output |
Associated Fuse Rating |
|
[Uimp] Rated Impulse Withstand Voltage | 4 kV III IEC 60647-5-1, DIN VDE 0110 part 1 |
Net Weight | 0.82 kg |
Output Type |
|
[Ui] Rated Insulation Voltage | 300 V 2)IEC 60647-5-1, DIN VDE 0110 part 1 |
Parity |
|
Exchange Size | 14 words |
Supported Modbus Function |
|
Method Of Access | slave |
Local Signalling | 32 LEDs |
Number Of Addresses |
|
Maximum Line Resistance | 100 Ohm <2000 m |
Input Protection Type | external fuse 16 A |
Width | 74 mm |
Depth | 153 mm |
[Uc] Control Circuit Voltage | 28.8 V |
Function Of Module |
|
Synchronisation Time Between Inputs | depending on configuration selected |
Breaking Capacity |
|
Breaking Capacity |
|
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1406025EN |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1406025EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Ambient Air Temperature For Operation | -10-55 °C |
Ip Degree Of Protection | IP20 conforming to EN/IEC 60529 |
Ambient Air Temperature For Storage | -25-85 °C |
