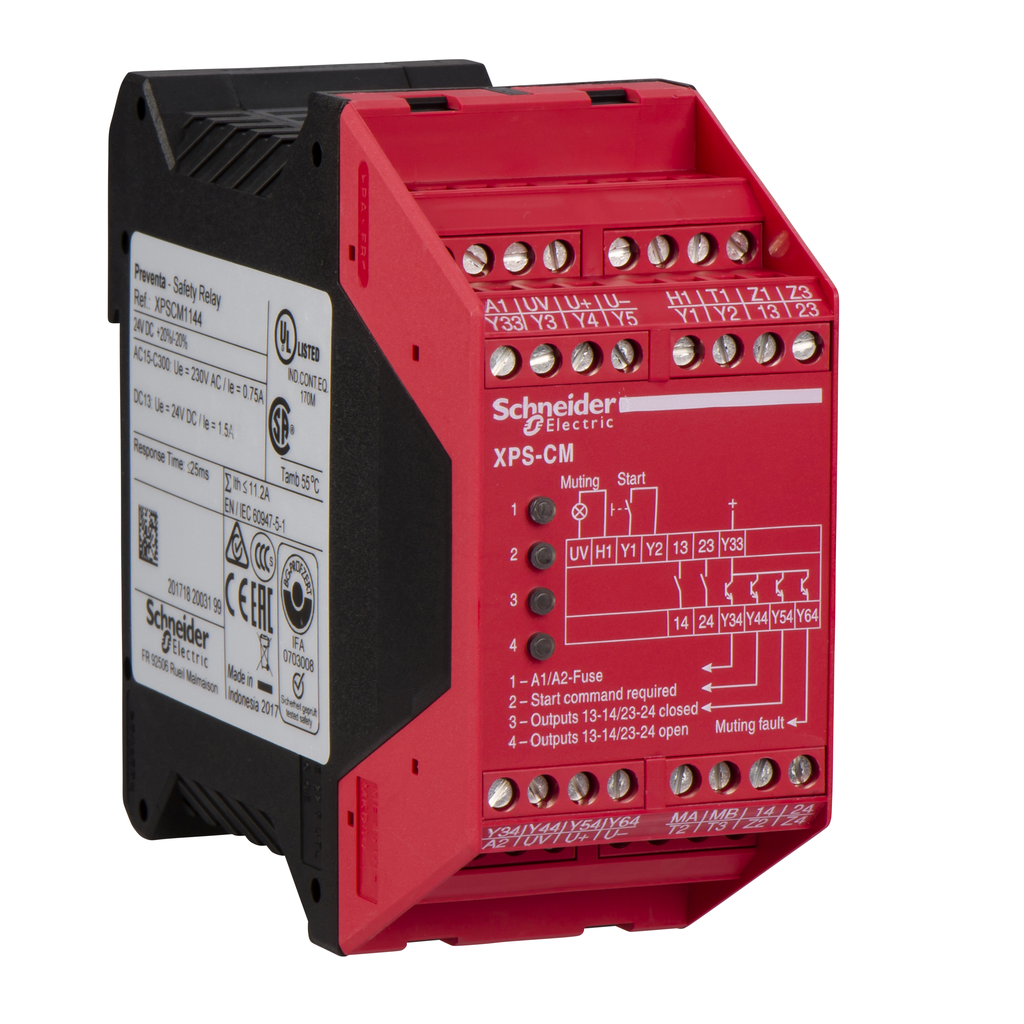

XPSCM1144 - module XPS-CM - single-beam photo-electric sensors - 24 V DC

XPSCM1144

module XPS-CM - single-beam photo-electric sensors - 24 V DC

This XPSCM safety module is for monitoring of single-beam photo-electric sensors and has a built-in "muting" function. It meets the requirements of PL c/Category 2 conforming to EN/ISO 13849-1.and SILCL1 conforming to EN/IEC 61508 and EN/IEC 62061. Used in conjunction with XU2S single-beam photo-electric sensors (periodically tested), it establishes a category 2 light curtain conforming to IEC/EN 61496 parts 1 and 2.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

[Us] Rated Supply Voltage	24 V DC - 20...20 %
Range Of Product	Telemecanique Safety light curtains XUSL
Product Or Component Type	safety module
Number Of Inputs	2 MA, MB)muting function 4 Z1, Z2, Z3, Z4)sensor
Safety Module Name	XPSCM
Output Type	relay 2 NO 13-14, 23-24), volt-free
Connections - Terminals	captive screw clamp terminals, 1 x 0.14...1 x 2.5 mm² solid or flexible without cable end captive screw clamp terminals, 1 x 0.25...1 x 1.5 mm² flexible with cable end, with bezel captive screw clamp terminals, 1 x 0.25...1 x 2.5 mm² flexible with cable end, without bezel captive screw clamp terminals, 2 x 0.14...2 x 0.75 mm² solid or flexible without cable end captive screw clamp terminals, 2 x 0.25...2 x 1 mm² flexible with cable end, without bezel captive screw clamp terminals, 2 x 0.5...2 x 1.5 mm² flexible with cable end, with double bezel
Input Compatibility	XC limit switch muting function XU2M18PP340... muting function XU2S18PP340... (infrared) sensor XU9M18PP340... muting function
Number Of Additional Circuits	0
Input Voltage	24 V DCsensor 24 V DC U+, U-)muting function
Safety Module Application	for monitoring of single beam photo-electric sensor
Safety Reliability Data	MTTFd = 16.6 years EN/ISO 13849-1 DC = 95.5 % EN/ISO 13849-1 PFH = 3.12E-7 1/h EN/IEC 61508 PFHd = 3.12E-7 1/h EN/IEC 62061
Function Of Module	built-in muting
Safety Level	can reach category 2 with the appropriate control system and correctly wired EN/ISO 13849-1 can reach SILCL 1 with the appropriate control system and correctly wired EN/IEC 62061 can reach PL = c with the appropriate control system and correctly wired EN/ISO 13849-1
Warranty	18 months
Muting Maximum Duration	60 s - 10...30 %)
Output Thermal Current	5.6 A per relay 11 A maximum
Power Consumption In W	15 W
Minimum Output Voltage	17 V relay output
Minimum Output Current	10 mA relay output
Input Current	200 mA muting function
Associated Fuse Rating	4 A gG relay output DIN VDE 0660 part 200 4 A gG relay output EN/IEC 60947-5-1 6 A fast blow relay output DIN VDE 0660 part 200 6 A fast blow relay output EN/IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage	4 kV III DIN VDE 0110 parts 1 and 2 4 kV III EN/IEC 60947-5-1
Local Signalling	1 LED electronic internal fuse status 1 LED restarting 1 LED safety outputs closed 1 LED safety outputs open 1 incandescent lamp muting 4-6.5 W
[Ui] Rated Insulation Voltage	300 V 2)DIN VDE 0110 parts 1 and 2 300 V 2)EN/IEC 60947-5-1
Sensor Power Supply	U+, U- 24-24 V DC
Maximum Line Resistance	10 Ohm sensor power supply
Maximum Supply Current For Sensors	200 mA
Protection Type	electronic internal fuse
Synchronisation Time Between Inputs	3 s +/- 20 %) for the activation of the MA/MB muting signal
Breaking Capacity	20 mA 24 V solid state output 1.5 A 24 V DC-13)50 ms relay output
Maximum Response Time On Input Open	25 ms
Breaking Capacity	180 VA holding AC-15 C300 relay output 1800 VA inrush AC-15 C300 relay output
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1406024EN
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI1406024EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Ambient Air Temperature For Operation	-10-55 °C
Ip Degree Of Protection	IP20 IEC 60529 terminals) IP40 IEC 60529 enclosure)
Ambient Air Temperature For Storage	-25-85 °C
