Home > Schneider Electric > Interface and Control Relays > Square D Relays > Harmony XPS Safety Modules > XPSBAC14AP – safety module, Harmony XPS, estop or guard, connected to supply terminals 24V AC or DC , no inputs, screw

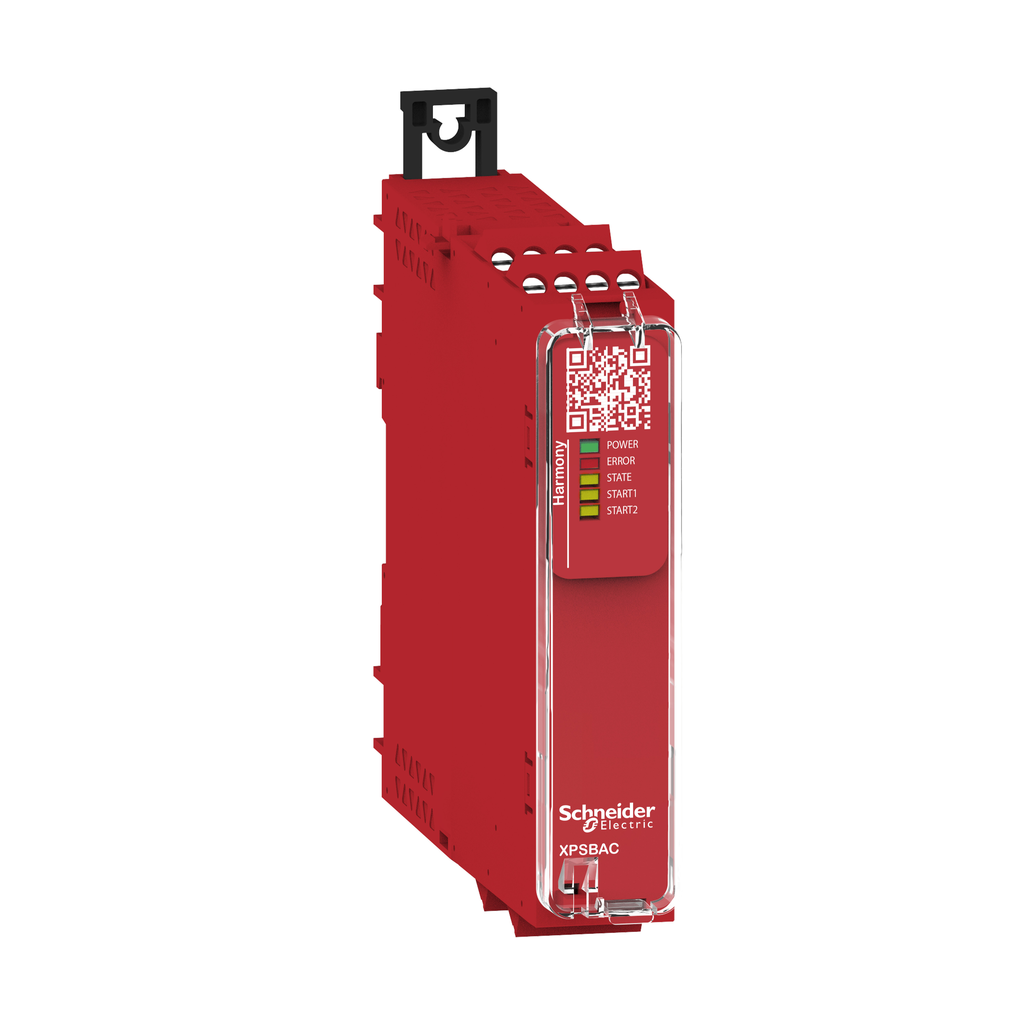

XPSBAC14AP – safety module, Harmony XPS, estop or guard, connected to supply terminals 24V AC or DC , no inputs, screw
XPSBAC14AP
safety module, Harmony XPS, estop or guard, connected to supply terminals 24V AC or DC , no inputs, screw

This safety relay is designed for monitoring Emergency stop and Guard switch. The safety relay is powered with 24V AC/DC, and equipped with a screw removable terminal block. This basic safety modules embeds pre-defined safety functions. This safety relay embeds 1 control output, 4 NO safety outputs, and 2 NC diagnostic outputs. The maximum safety level achieved by this safety relay is PLe/Category 4 conforming to ISO13849-1, SILCL 3 conforming to IEC62061, SIL 3 conforming to IEC61508. This safety relay weighs 0,200kg. Its dimensions are 22,5mm (Width) x 120mm (Depth) x 100mm (Height). This safety relays is suitable for applications such as Food and Beverage, Hoisting, Material Handling, Material Working, Packaging. This safe relay conforms to IEC 60947-5-1, IEC 61508-1, IEC 61508-2/-3, ISO 13849-1, IEC 62061 functional safety standards, is certified by cULus, TÜV. Harmony safety relays are compatible with Modicon logic controllers. This relay is mounted on a 35mm symmetrical DIN rail. Harmony XPS Basic and Universal safety relays are the first choice for managing single safety functions easily, typically in machines of simple to medium complexity. Harmony XPS Basic offers the most optimised solution for applications with hardwired safety modules.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Terminal Identifier power supply
Number Of Outputs 0
Height 100 mm
Mounting Support 35 mm symmetrical DIN rail
Minimum Output Voltage 5 V relay output
Response Time
  • 150 ms at 24 V AC
  • 80 ms at 24 V DC
Minimum Output Current 10 mA relay output
[Ith] Conventional Free Air Thermal Current 6 A
Associated Fuse Rating 10 A gG NO relay output circuit IEC 60947-1
Local Signalling
  • LED green power power ON
  • LED red error error
  • LED yellow state status
  • LED yellow start1 start input
  • LED yellow start2 start input
[Uimp] Rated Impulse Withstand Voltage 4 kV II IEC 60947-1
Net Weight 0.200 kg
Type Of Start automatic/manual/monitored
Number Of Inputs 0
Input Compatibility
  • normally closed circuit ISO 14119
  • XC limit switch ISO 14119
  • mechanical contact ISO 14119
  • normally closed circuit ISO 13850
Power Consumption In Va 3.5 VA 24 V AC 50/60 Hz
[Ie] Rated Operational Current
  • 5 A AC-1 for normally open relay contact
  • 3 A AC-15 for normally open relay contact
  • 5 A DC-1 for normally open relay contact
  • 3 A DC-13 for normally open relay contact
  • 3 A AC-1 for normally closed relay contact
  • 1 A AC-15 for normally closed relay contact
  • 3 A DC-1 for normally closed relay contact
  • 1 A DC-13 for normally closed relay contact
Auxiliary Contact Composition 4 NO + 1 NC
[Ui] Rated Insulation Voltage 300 V 2)IEC 60947-1
Power Consumption In W 1.5 W 24 V DC
Input Protection Type internal, electronic
Width 22.5 mm
Depth 120 mm
Synchronisation Time Between Inputs unlimited
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP1811003EN
Sustainable Offer Status Green Premium product
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation X
Circularity Profile ENVEOLI1811003EN
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Country of Origin Indonesia
Width 22.5 mm
Height 100 mm
Weight 0.200 kg
[Us] Rated Supply Voltage
  • 24 V AC - 15...10 %
  • 24 V DC - 20...20 %
Range Of Product Harmony Safety Automation
Product Or Component Type safety module
Safety Module Name XPSBAC
Connections - Terminals
  • removable screw terminal block, 0.2...2.5 mm² solid or flexible
  • removable screw terminal block, 0.25...2.5 mm² flexible with ferrule single conductor
  • removable screw terminal block, 0.2...1.5 mm² solid or flexible twin conductor
  • removable screw terminal block, 2 x 0.25...1 mm² flexible with ferrule without cable end, with bezel
  • removable screw terminal block, 2 x 0.5...1.5 mm² flexible with ferrule with cable end, with bezel
Safety Module Application for emergency stop and protective guard applications
Safety Reliability Data
  • MTTFd > 30 years for normally open relay contact ISO 13849-1
  • Dcavg >= 99 % for normally open relay contact ISO 13849-1
  • PFHd = 0.95E-09 for normally open relay contact ISO 13849-1
  • HFT = 1 for normally open relay contact IEC 62061
  • PFHd = 0.95E-09 for normally open relay contact IEC 62061
  • SFF > 99% for normally open relay contact IEC 62061
  • HFT = 1 for normally open relay contact IEC 61508-1
  • PFHd = 0.95E-09 for normally open relay contact IEC 61508-1
  • SFF > 99% for normally open relay contact IEC 61508-1
  • type = B for normally open relay contact IEC 61508-1
  • MTTFd > 30 years for normally closed relay contact ISO 13849-1
  • DC > 60 % for normally closed relay contact ISO 13849-1
  • PFHd = 0.95E-09 for normally closed relay contact ISO 13849-1
  • HFT=0 for normally closed relay contact IEC 62061
  • PFHd = 0.95E-09 for normally closed relay contact IEC 62061
  • SFF > 60% for normally closed relay contact IEC 62061
  • HFT=0 for normally closed relay contact IEC 61508-1
  • PFHd = 0.95E-09 for normally closed relay contact IEC 61508-1
  • SFF > 60% for normally closed relay contact IEC 61508-1
  • type = B for normally closed relay contact IEC 61508-1
Electrical Circuit Type NC pair
Function Of Module
  • emergency stop button with 2 NC contacts
  • guard monitoring with 1 or 2 limit switches
Safety Level
  • can reach PL e/category 4 for normally open relay contact ISO 13849-1
  • can reach SILCL 3 for normally open relay contact IEC 62061
  • can reach SIL 3 for normally open relay contact IEC 61508
  • can reach PL c/category 1 for normally closed relay contact ISO 13849-1
  • can reach SILCL 1 for normally closed relay contact IEC 62061
  • can reach SIL 1 for normally closed relay contact IEC 61508
Product Certifications
  • TÜV
  • cULus
Ambient Air Temperature For Operation -25-55 °C
Ip Degree Of Protection
  • IP20 terminals)IEC 60529
  • IP40 housing)IEC 60529
  • IP54 mounting area)IEC 60529
Standards
  • IEC 60947-5-1
  • IEC 61508-1 functional safety standard
  • IEC 61508-2 functional safety standard
  • IEC 61508-3 functional safety standard
  • IEC 61508-4 functional safety standard
  • IEC 61508-5 functional safety standard
  • IEC 61508-6 functional safety standard
  • IEC 61508-7 functional safety standard
  • ISO 13849-1 functional safety standard
  • IEC 62061 functional safety standard
Relative Humidity 5-95 % non-condensing
