XBTZGJBOX – junction box for advanced hand-held terminal
XBTZGJBOX
junction box for advanced hand-held terminal

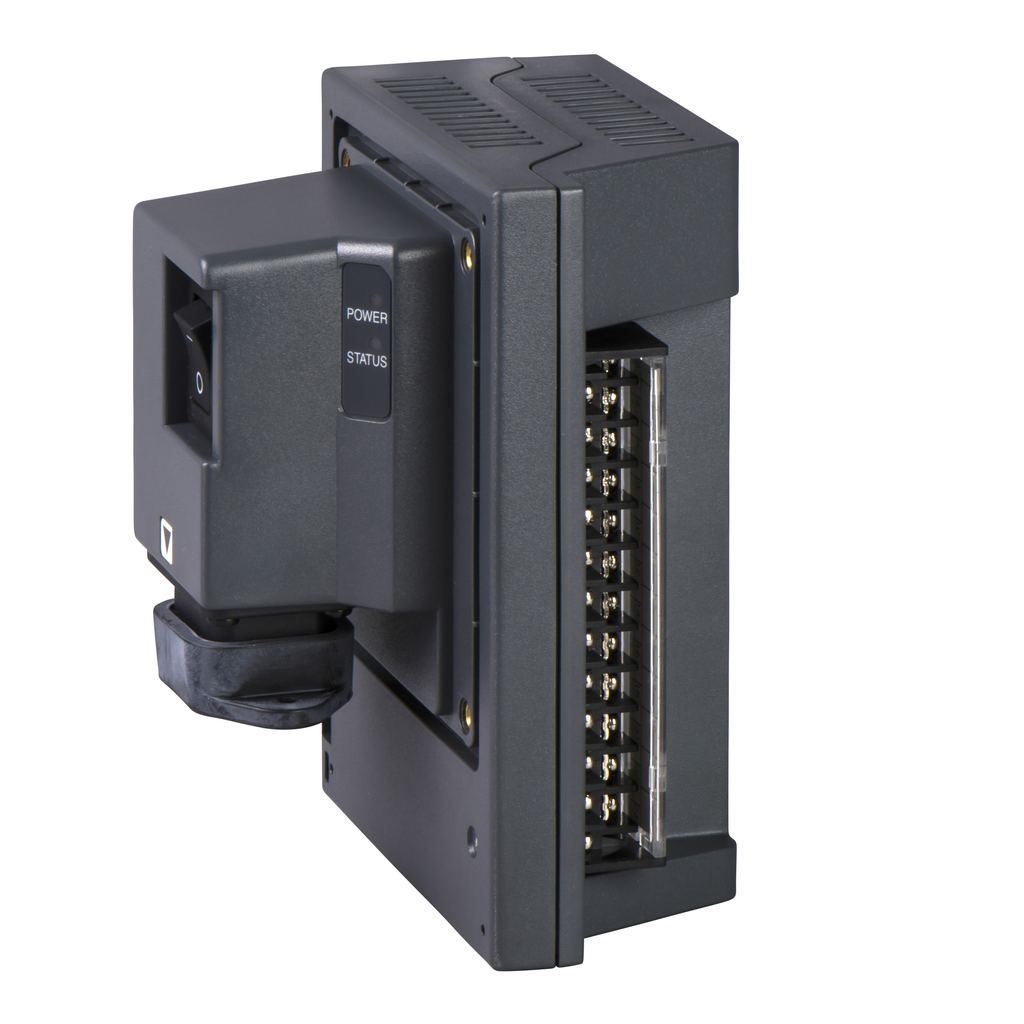

This Magelis XBTZ is a junction box for XBTGH touchscreen advanced hand-held panel. It enables 24V dc power supply to XBTGH terminal and connection of various safety inputs/outputs. It also enables connection on multiprotocol serial link (9-way SUB-D) or Ethernet TCP/IP (RJ45). It can be mounted on 35 mm symmetrical DIN rail.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Product Certifications
  • cULus
  • C-tick
Ambient Air Temperature For Operation 0-50 °C
Resistance To Electromagnetic Fields 10 V/m IEC 61000-4-3
Standards
  • FCC Class A
  • EN 61131-2
  • IEC 61000-6-2
  • UL 508
Immunity To Microbreaks 10 ms
Shock Resistance 15 gn 11 ms IEC 60068-2-27
Vibration Resistance
  • 1 gn 9-150 Hz)
  • 3.5 mm 5-9 Hz)
Ip Degree Of Protection
  • IP20 rear panel)
  • IP65 front panel)
Ambient Air Temperature For Storage -20-60 °C
Relative Humidity 0-90 % without condensation or dripping water
Resistance To Electrostatic Discharge 6 kV IEC 61000-4-2 level 3
Operating Altitude <= 6561.68 ft (2000 m)
Resistance To Fast Transients 2 kV IEC 61000-4-4 level 3
Warranty 18 months
Rohs Exemption Information Yes
Mercury Free Yes
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc Yes
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation X
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Electrical Connection
  • 1 connector 24-pin connector hand-held panel
  • 1 connector RJ45 Ethernet TCP/IP
  • 1 male connector SUB-D 9 RS232C/RS422/RS485 <= 115.2 kbits/s COM1 serial link
  • screw terminal block 24 inputs/outputs
Inrush Current 30 A
Power Consumption In W 6.3 W
Marking CE
Fixing Mode
  • by 4 M4 screws 1.5 to 10 mm thick panel
  • clip-on 35 mm symmetrical DIN rail
Supply Voltage Limits 19.2-28.8 V
Enclosure Material PPT
Port Ethernet 10BASE-T/100BASE-TX
[Us] Rated Supply Voltage 24 V DC
Country of Origin United States
Range Of Product Magelis XBTGH
Product Or Component Type junction box
Product Specific Application for XBTGH advanced hand-held panel
