XBH1AA0R4

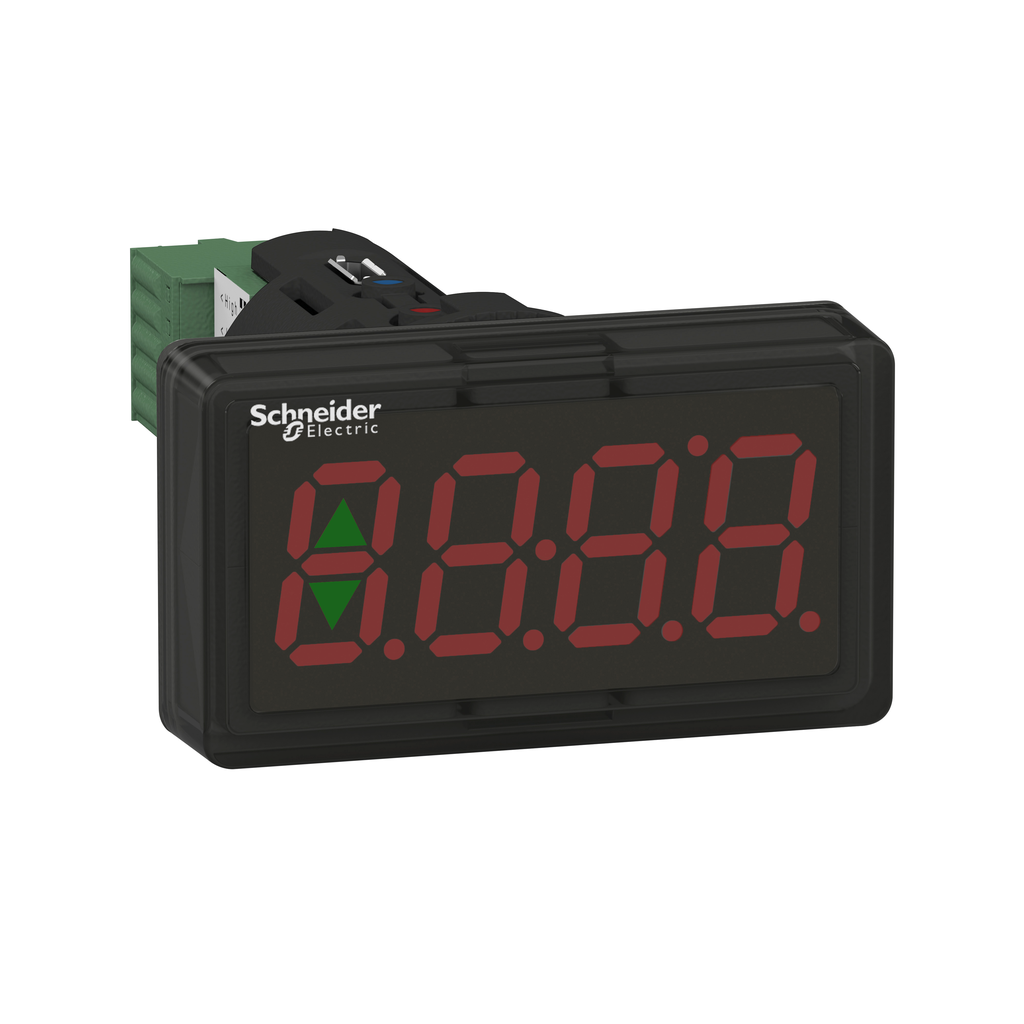

Display module, Harmony XB5, Digital panel meter, plastic, black, 22mm, 4 digit red LED display, 4...20mA input
This display module provides a versatile interface for your machines It is impact resistant (strength), dust resistant (strength), water resistant (strength), corrosion resistant (strength), and vibration resistant (strength) thanks to its IP65, making it ideal for operation in harsh (heavy) environments
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Brightness | fixed |
|---|---|
| Height | 29.5 mm |
| Maximum Voltage Drop | 6 V |
| Tightening Torque |
|
| Analogue Input Range | 4...20 mA DC |
| Mounting Diameter | 22.5 mm |
| Accuracy | +/- 0.15 % of the measuring range + 1 digit |
| Discrete Output Voltage | 30 V DC |
| Discrete Output Current | 0.5 A |
| Net Weight | 0.032 kg |
| Flame Retardance | UL94-V1 |
| Connections - Terminals | spring terminals, 1 x 0.2...1 mm² AWG 24...AWG 17) |
| Temperature Drift | 50 ppm/°C |
| Solid State Output Type | 2 x power MOSFET |
| Housing Material | plastic |
| Display Colour | red |
| Width | 51.5 mm |
| Display Type | 7 segments LED |
| Depth | 78.2 mm |
| Counting Capacity | -999...9999 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Compliant |
| Country of Origin | United States |
| Width | 51.5 mm |
| Height | 29.5 mm |
| Weight | 0.032 kg |
| Range Of Product | Harmony XB5 |
| Product Or Component Type | display module |
| Display Digits | 4 - 14 mm |
| Ambient Air Temperature For Operation | -20-60 °C |
| Standards | IEC 61326-1 |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection | IP65 IEC 60529 front panel) |
| Ambient Air Temperature For Storage | -20-85 °C |
