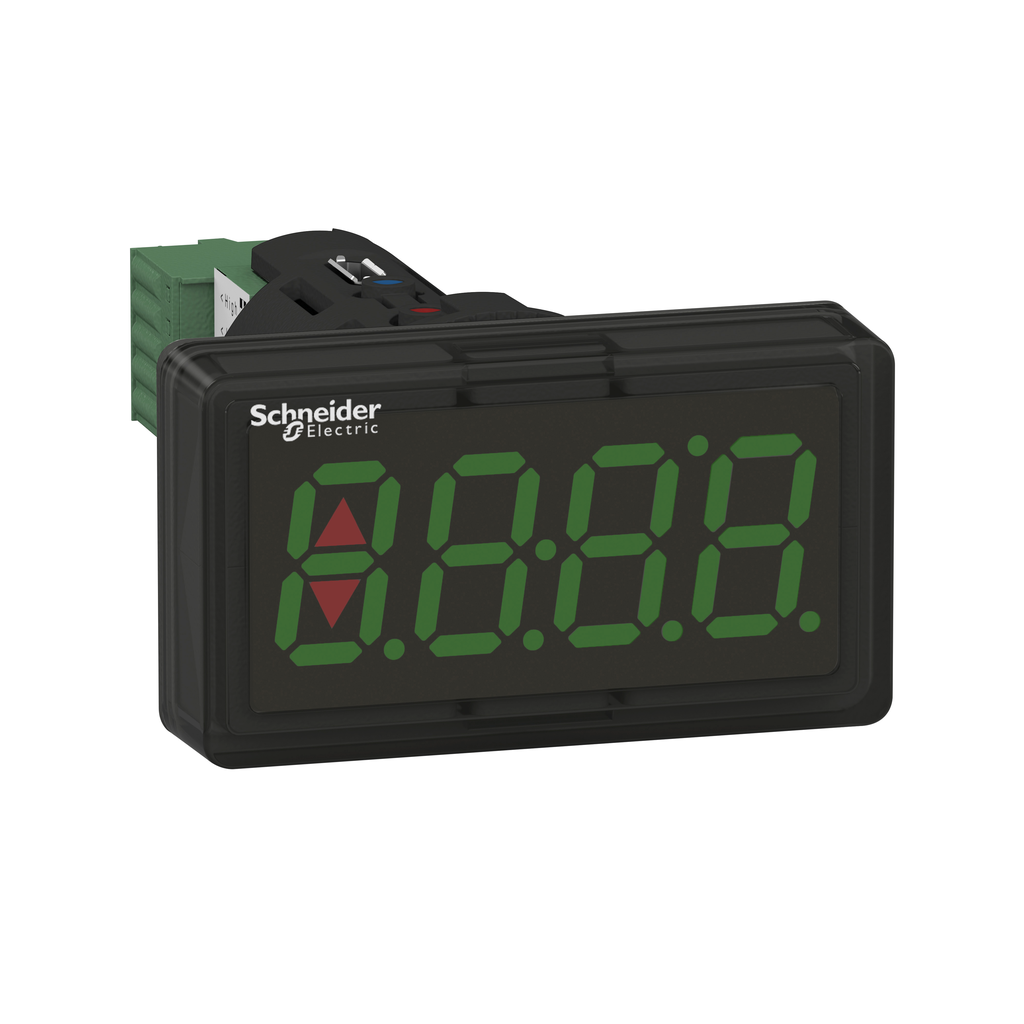

XBH1AA0G4 - Display module, Harmony XB5, Digital panel meter, plastic, black, 22mm, 4 digit green LED display, 4...20mA input

XBH1AA0G4

Display module, Harmony XB5, Digital panel meter, plastic, black, 22mm, 4 digit green LED display, 4...20mA input

This display module provides a versatile interface for your machines It is impact resistant (strength), dust resistant (strength), water resistant (strength), corrosion (strength), and vibration (strength) thanks to its IP65, making it ideal for operation in harsh (heavy) environments

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Country of Origin	France
Width	51.5 mm
Height	29.5 mm
Weight	0.032 kg
Range Of Product	Harmony XB5
Product Or Component Type	display module
Display Digits	4 - 14 mm
Ambient Air Temperature For Operation	-20-60 °C
Standards	IEC 61326-1
Vibration Resistance	5 gn 2-500 Hz)IEC 60068-2-6
Ip Degree Of Protection	IP65 IEC 60529 front panel)
Ambient Air Temperature For Storage	-20-85 °C
Rohs Exemption Information	Yes
Mercury Free	Yes
Toxic Heavy Metal Free	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Reach Free Of Svhc	Yes
China Rohs Regulation	X
Eu Rohs Directive	Compliant
Brightness	fixed
Height	29.5 mm
Maximum Voltage Drop	6 V
Tightening Torque	1.3 N.m +/- 0.2 N.m 11.5 lb.in +/- 1.8 lb.in
Analogue Input Range	4...20 mA DC
Mounting Diameter	22.5 mm
Accuracy	+/- 0.15 % of the measuring range + 1 digit
Discrete Output Voltage	30 V DC
Discrete Output Current	0.5 A
Net Weight	0.032 kg
Flame Retardance	UL94-V1
Connections - Terminals	spring terminals, 1 x 0.2...1 mm² AWG 24...AWG 17)
Temperature Drift	50 ppm/°C
Solid State Output Type	2 x power MOSFET
Housing Material	plastic
Display Colour	green
Width	51.5 mm
Display Type	7 segments LED
Depth	78.2 mm
Counting Capacity	-999...9999
