XB7EV06BP - Monolithic pilot light, Harmony XB7, plastic, blue, 22mm, integral LED, 24V AC DC

XB7EV06BP

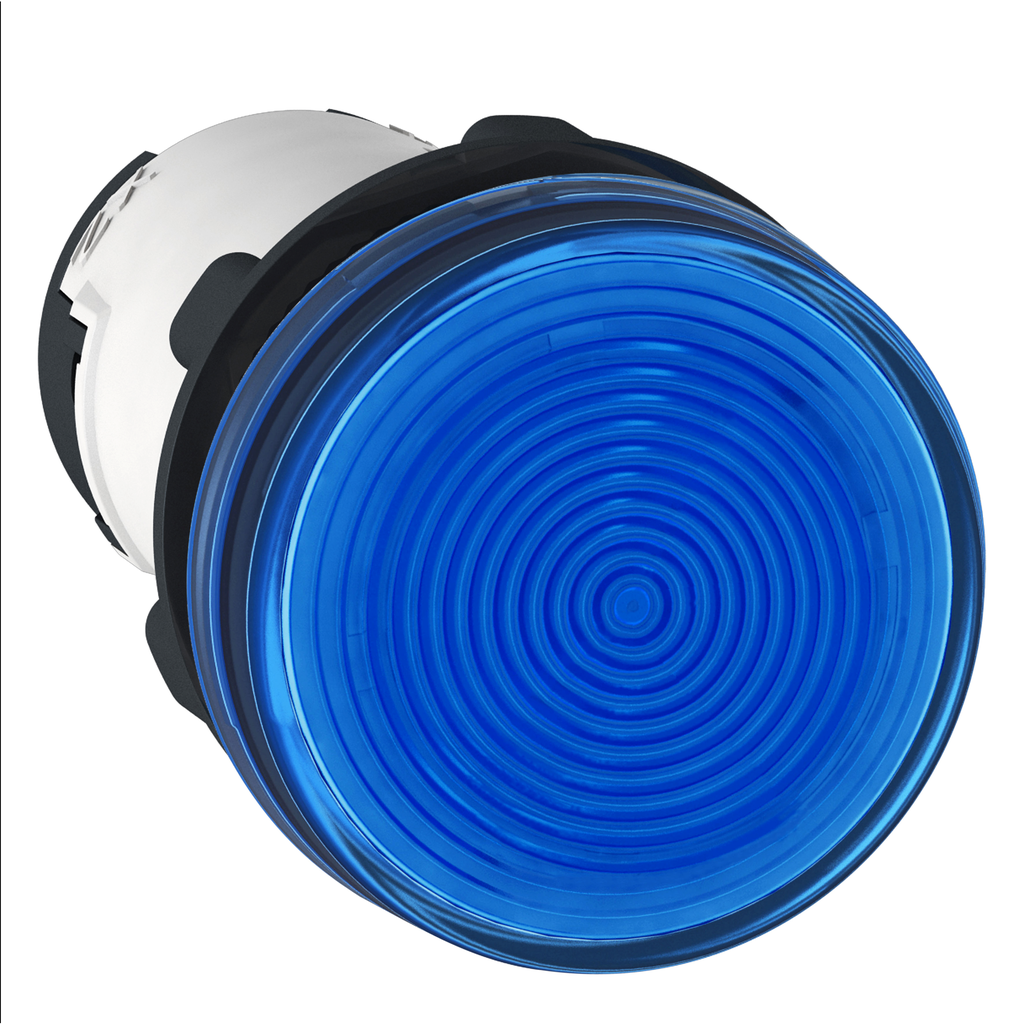

Monolithic pilot light, Harmony XB7, plastic, blue, 22mm, integral LED, 24V AC DC

This Harmony XB7, plain lens monolithic blue pilot light is supplied with 24V AC/DC, uses an integral LED and screw clamp terminals. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Ambient Air Temperature For Operation	-25-70 °C
Standards	EN/IEC 60947-5-1 CSA C22.2 No 14 JIS C8201-5-1 EN/IEC 60947-1 UL 508 JIS C8201-1
Electromagnetic Compatibility	disturbing field emission class B conforming to EN 55011
Shock Resistance	50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance	5 gn 2-500 Hz)IEC 60068-2-6
Ip Degree Of Protection	IP20 IEC 60529 rear face) IP65 IEC 60529 front face)
Ambient Air Temperature For Storage	-40-70 °C
Overvoltage Category	class II IEC 60536
Nema Degree Of Protection	NEMA 4 UL 50 E NEMA 12 UL 50 E
Protective Treatment	TH
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2312030EN
Sustainable Offer Status	Green Premium product
Toxic Heavy Metal Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI2312030EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Height	29 mm
Terminals Description Iso N°1	(X1-X2)PL
Fixing Center	>= 30 x 40 mm support panel) metal 1-6 mm >= 30 x 40 mm support panel) plastic 2-6 mm
Fixing Mode	fixing nut beneath head 2-2.4 N.m
Net Weight	0.02 kg
[Uimp] Rated Impulse Withstand Voltage	6 kV EN/IEC 60947-1
Current Consumption	20...27 mA
Connections - Terminals	screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end EN/IEC 60947-1
Service Life	70000 h at rated voltage and 25 °C
[Ui] Rated Insulation Voltage	250 V 3)EN/IEC 60947-1
Signalling Type	steady
Supply Voltage Limits	19.2-30 V DC 21.6-26.4 V AC
Width	29 mm
Depth	54 mm
Tightening Torque	0.8-1.2 N.m EN 60947-1
Shape Of Screw Head	cross JIS No 1 cross Philips no 1 cross pozidriv No 1 slotted flat Ø 4 mm slotted flat Ø 5.5 mm
Device Mounting	fixing hole 22.5 mm 22.3 +0.4/0 EN/IEC 60947-5-1
Country of Origin	Indonesia
Width	29 mm
Height	29 mm
Weight	0.02 kg
[Us] Rated Supply Voltage	24 V AC/DC 50/60 Hz
Range Of Product	Harmony XB7
Light Source	LED
Mounting Diameter	22 mm
Product Or Component Type	pilot light
Shape Of Signaling Unit Head	round
Cap/Operator Or Lens Colour	blue
Device Presentation	monolithic product
Sale Per Indivisible Quantity	10
Device Short Name	XB7
Bulb Base	integral LED
