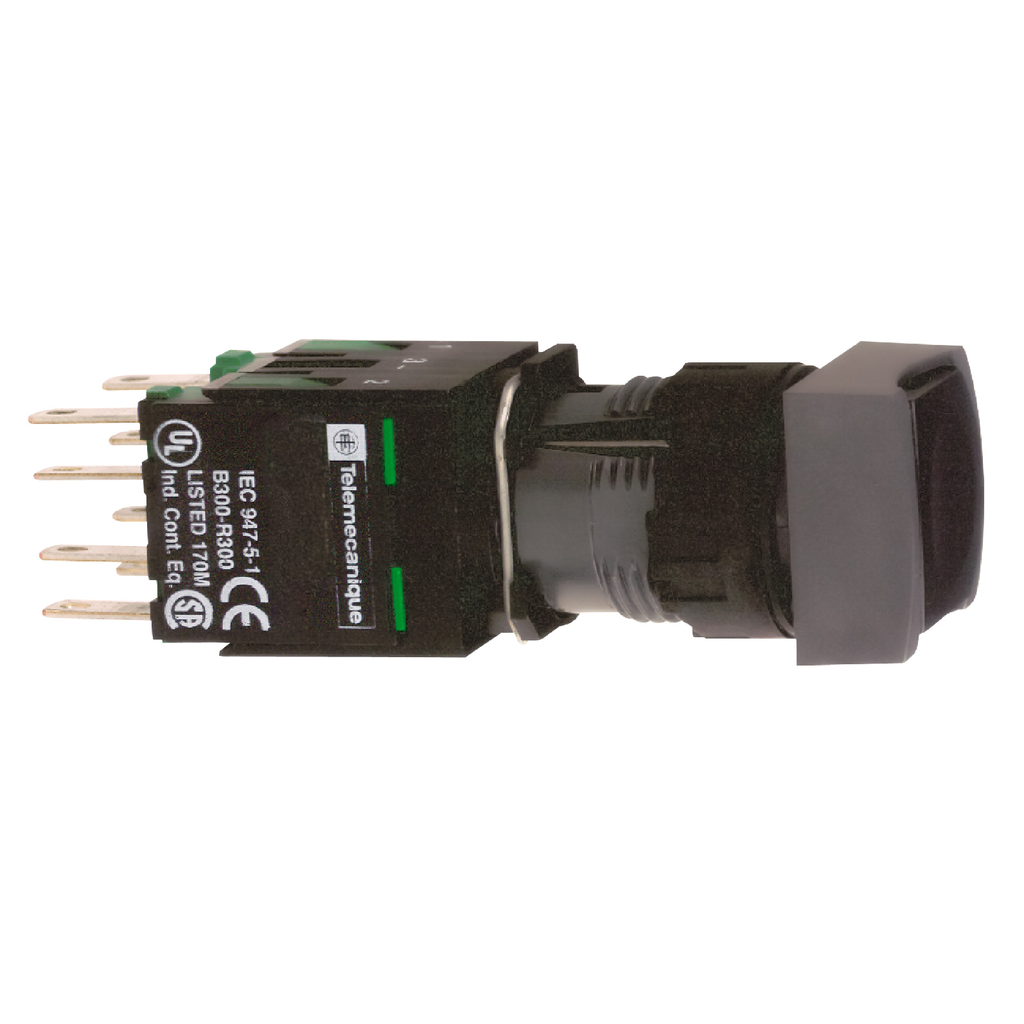

XB6CA21B - Complete push button, Harmony XB6, black square flush pushbutton, 16mm, spring return, 1NO, unmarked

XB6CA21B

Complete push button, Harmony XB6, black square flush pushbutton, 16mm, spring return, 1NO, unmarked

Add to Quote Catalogue

Specifications

Product Certifications	GOST CSA CCC UL
Ambient Air Temperature For Operation	-25-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Standards	CSA C22.2 No 14 JIS C 852 EN/IEC 60947-1 EN/IEC 60947-5-5 UL 508 EN/IEC 60947-5-1 JIS C 4520
Nema Degree Of Protection	NEMA 13 UL 50 NEMA 4 UL 50 NEMA 4X UL 50 NEMA 13 CSA C22.2 No 94 NEMA 4 CSA C22.2 No 94 NEMA 4X CSA C22.2 No 94
Electrical Shock Protection Class	class II IEC 61140
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance	+/- 3 mm 2-500 Hz)IEC 60068-2-6 5 gn 2-500 Hz)IEC 60068-2-6
Protective Treatment	TC
Ip Degree Of Protection	IP65 IEC 60529
Warranty	18 months
China Rohs Regulation	X
Rohs Exemption Information	Yes
Mercury Free	Yes
Toxic Heavy Metal Free	Yes
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
California Proposition 65	WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Electrical Durability	1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Terminals Description Iso N°1	(13-14)NO
[Ui] Rated Insulation Voltage	250 V 3)EN/IEC 60947-1
Operating Force	3.5 N NO changing electrical state
Short-Circuit Protection	6 A cartridge fuse gG
[Ie] Rated Operational Current	3 A 120 V, AC-15, B300 EN/IEC 60947-5-1 1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1
Operating Travel	1 mm NO changing electrical state) 3.5 mm total travel)
Contacts Material	silver alloy (Ag/Ni)
Mechanical Durability	2000000 cycles
Positive Opening	with EN/IEC 60947-5-1 appendix K
Operating Position	any position
Electrical Reliability	λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4
Cad Overall Width	18 mm
Cad Overall Depth	57 mm
Net Weight	0.019 kg
[Uimp] Rated Impulse Withstand Voltage	4 kV EN/IEC 60947-1
Cad Overall Height	18 mm
Country of Origin	Mexico
Width	18 mm
Height	18 mm
Weight	0.019 kg
Connections - Terminals	Faston connectors 2.8 x 0.5 mm
Contacts Type And Composition	1 NO
Sale Per Indivisible Quantity	1
Range Of Product	Harmony XB6
Bezel Material	plastic
Contact Operation	slow-break
Operator Profile	black flush, unmarked
Mounting Diameter	16 mm
Type Of Operator	spring return
Product Or Component Type	complete push-button
Shape Of Signaling Unit Head	square
Device Short Name	XB6
