XB6AA25B - Complete push button, Harmony XB6, black flush pushbutton, 16mm, spring return, 1NO 1NC, unmarked

XB6AA25B

Complete push button, Harmony XB6, black flush pushbutton, 16mm, spring return, 1NO + 1NC, unmarked

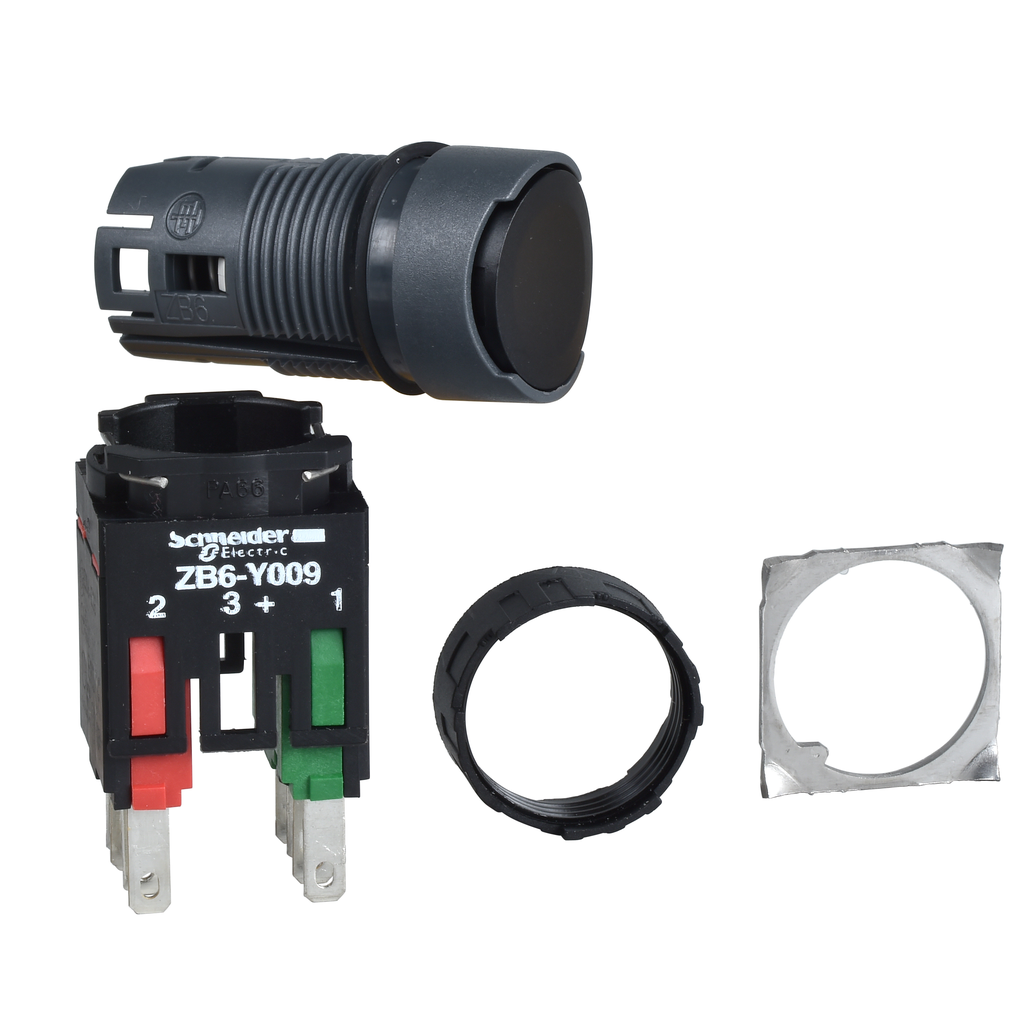

This Harmony XB6 black, complete push button is part of the range diameter 16mm plastic, Harmony XB6 modular. It has a circular head shape, with a flush spring return push. It features 1 NO + 1 NC slow break contacts and faston connection type. Its reduced diameter 16mm makes it suitable to applications where less space is available for mounting, like small machines and control panels. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Certifications	GOST UL CCC CSA
Ambient Air Temperature For Operation	-25-70 °C
Standards	IEC 60947-5-5 UL 508 JIS C 852 IEC 60947-1 CSA C22.2 No 14 JIS C 4520 IEC 60947-5-1
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance	+/- 3 mm 2-500 Hz)IEC 60068-2-6 5 gn 2-500 Hz)IEC 60068-2-6
Ip Degree Of Protection	IP65 IEC 60529
Ambient Air Temperature For Storage	-40-70 °C
Nema Degree Of Protection	NEMA 13 UL 50 NEMA 4 UL 50 NEMA 4X UL 50 NEMA 13 CSA C22.2 No 94 NEMA 4 CSA C22.2 No 94 NEMA 4X CSA C22.2 No 94
Electrical Shock Protection Class	class II IEC 61140
Protective Treatment	TC
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Toxic Heavy Metal Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Terminals Description Iso N°1	(13-14)NO (21-22)NC
Operating Force	3.5 N NO changing electrical state 4.5 N NC changing electrical state
Short-Circuit Protection	6 A cartridge fuse gG
Operating Travel	1 mm NO changing electrical state) 2 mm NC changing electrical state) 3.5 mm total travel)
Contacts Material	silver alloy (Ag/Ni)
Positive Opening	with IEC 60947-5-1 appendix K
Net Weight	0.022 kg
[Uimp] Rated Impulse Withstand Voltage	4 kV IEC 60947-1
Cad Overall Height	18 mm
Electrical Durability	1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
[Ui] Rated Insulation Voltage	250 V 3)IEC 60947-1
[Ie] Rated Operational Current	3 A 120 V, AC-15, B300 IEC 60947-5-1 1.5 A 240 V, AC-15, B300 IEC 60947-5-1 0.1 A 250 V, DC-13, R300 IEC 60947-5-1 0.22 A 125 V, DC-13, R300 IEC 60947-5-1
Mechanical Durability	2000000 cycles
Operating Position	any position
Electrical Reliability	λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4
Cad Overall Width	18 mm
Cad Overall Depth	57 mm
Country of Origin	Mexico
Width	18 mm
Height	18 mm
Weight	0.022 kg
Range Of Product	Harmony XB6
Mounting Diameter	16 mm
Type Of Operator	spring return
Product Or Component Type	complete push-button
Shape Of Signaling Unit Head	round
Connections - Terminals	Faston connectors 2.8 x 0.5 mm
Contacts Type And Composition	1 NO + 1 NC
Sale Per Indivisible Quantity	1
Bezel Material	plastic
Contact Operation	slow-break
Operator Profile	black flush, unmarked
Device Short Name	XB6
