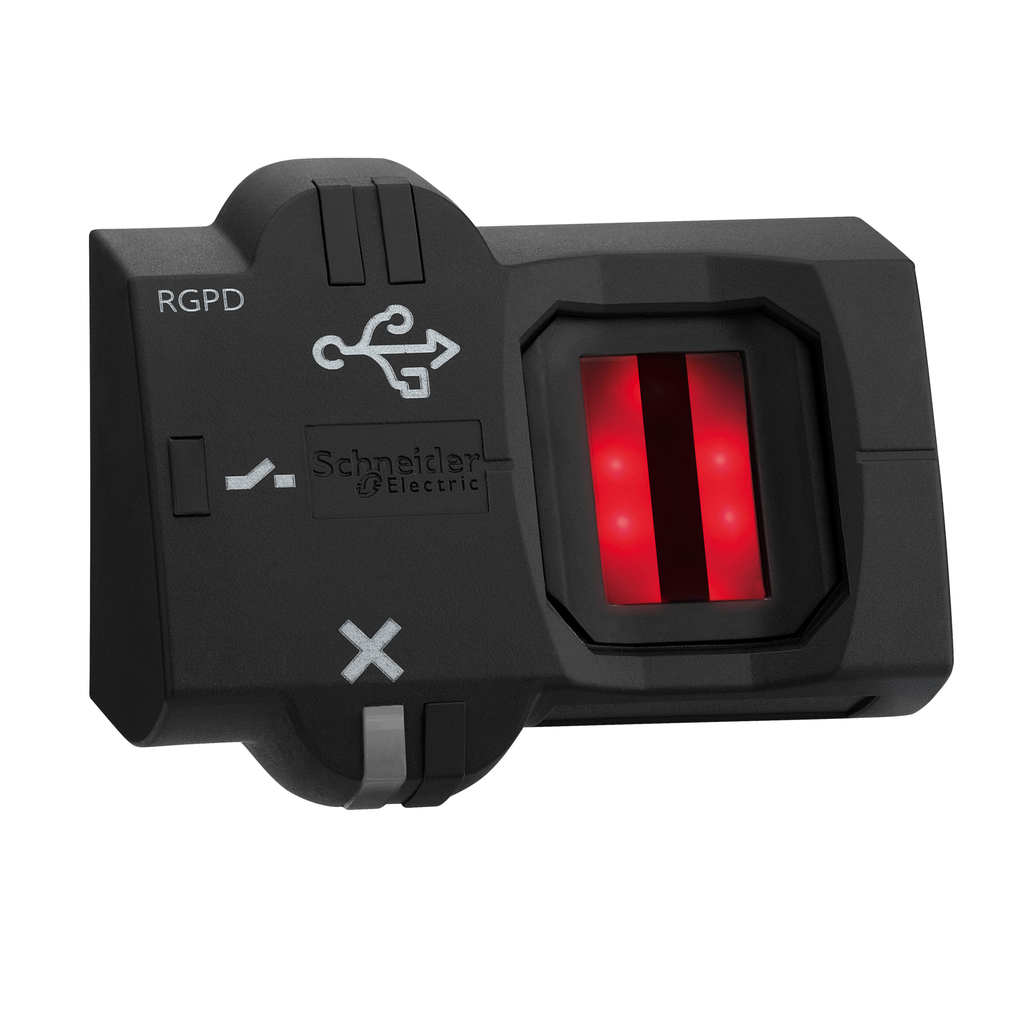

XB5S8B2M12
Biometric switch bistable RGPD, Harmony XB5S, plastic, 22mm, USB, connection by M12 connector, 24V AC DC
This biometric switch allows control of authorization to access areas, machine commands and functions without the use of easy-to-lose keys. It has a high detection reliability with minimal false positive detections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Ambient Air Temperature For Operation | -5-50 °C |
| Range Of Product | Harmony XB5S |
| Standards |
|
| Shock Resistance | 50 gn 11 ms IEC 60068-2-27 |
| Vibration Resistance |
|
| Ambient Air Temperature For Storage | -25-70 °C |
| Nema Degree Of Protection | NEMA 12 |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Compliant with Exemptions |
| Current Consumption | <= 70 mA no-load |
| Electrical Connection | M12 connector 0.2 m |
| Maximum Delay Response | 1.5 s |
| Short-Circuit Protection | 250 mA external fuse gG |
| Cable Insulation Material | PvR |
| Connector Type | USB type A male 1 m |
| Maximum Switching Current | 200 mA |
| Marking | CE |
| Net Weight | 0.215 kg |
| [Us] Rated Supply Voltage | 24 V DC |
| Communication Port Protocol | USB |
| Maximum Delay Recovery | 1.5 s |
| Software Designation | XB5SSoft |
| Supply Voltage Limits | 20-30 V DC |
| Local Signalling |
|
| Operating Position |
|
| Protection Type |
|
| Enclosure Material | polyamide PA66 |
| Function Of Module | bi-stable |
| [Ures] Residual Voltage | 1 V closed state |
| Maximum Delay First Up | 3 s + 0.5 ms per user registered |
| Country of Origin | France |
| Weight | 0.215 kg |
| Mounting Diameter | 22 mm |
| Product Or Component Type | biometric switch RGPD |
| Ip Degree Of Protection |
|
| Sale Per Indivisible Quantity | 1 |
| Bezel Material | plastic |
| Operator Profile | fingerprint reader |
| Product Specific Application |
|
| Operator Position Information | 2 positions |
| Type Of Operator | stay put |
| Output Type | PNP |
| Memory Usage | 200 users with up to 2 fingerprints per user |
| Device Short Name | XB5S |
