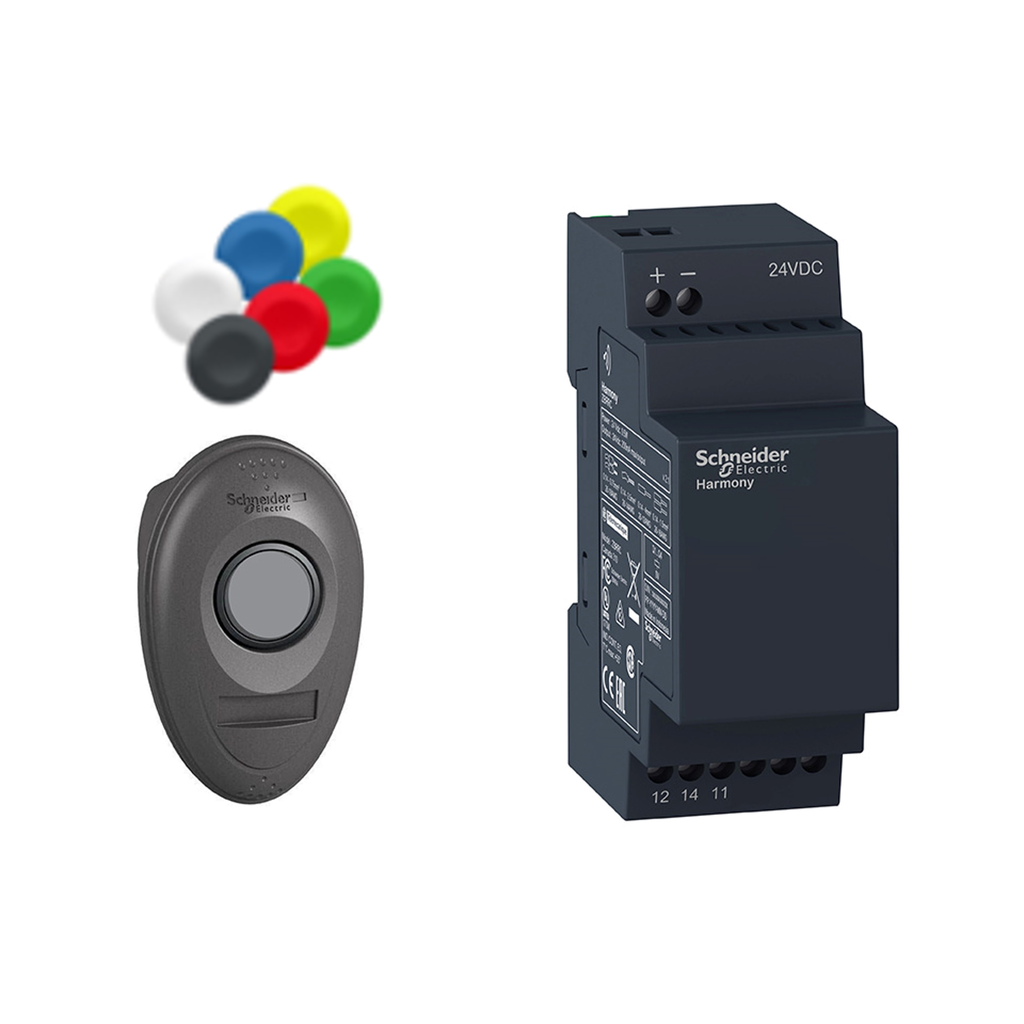

Pack with 1 wireless and batteryless push button +1 non configurable receiver + 1 set of caps, Harmony XB5, plastic, 22mm, 24V DC
This Harmony XB5, flush black wireless push button and receiver unitset is supplied with 24V DC input and is mounted in a plastic handybox. This wireless batteryless push button with handybox is ideal for standalone remote control of conveyor and unaccessible machines. It is delivered pre-mounted in a handy box which saves the need for assembly in a cabinet. The receiver is also DIN rail mountable. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is easily installed into standard 22mm diameter cut-outs. It complies with most radio emission standards, for a guaranteed comfort during design and project approval.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Standards |
|
| Marking | CE |
| Radio Agreement |
|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP101106EN |
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1103010EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| [Us] Rated Supply Voltage | 24 V DC |
| Control Type | wireless and batteryless push-button handy box assembled on fixing collar |
| Modulation Technique | O-QPSK |
| Kit Composition |
|
| Communication Port Protocol | Zigbee IEEE 802.15.4 |
| Antenna Gain | 0 dBi |
| Max Power Consumption In W | 1 mW |
| Number Of Channels | 1 |
| Type Of Receiver | non-programmable receiver 1 relay) |
| Compatibility Code | XB5R |
| Customizable | no |
| Bandwidth | 5-5 MHz |
| Country of Origin | France |
| Antenna Type | omnidirectional |
| Range Of Product | Harmony XB5R |
| Product Or Component Type | wireless and batteryless package |
| Head Material | plastic |
| Level Or Class | 5M00G7W |
| Device Short Name | XB5R |
| Transmission Frequency |
|
