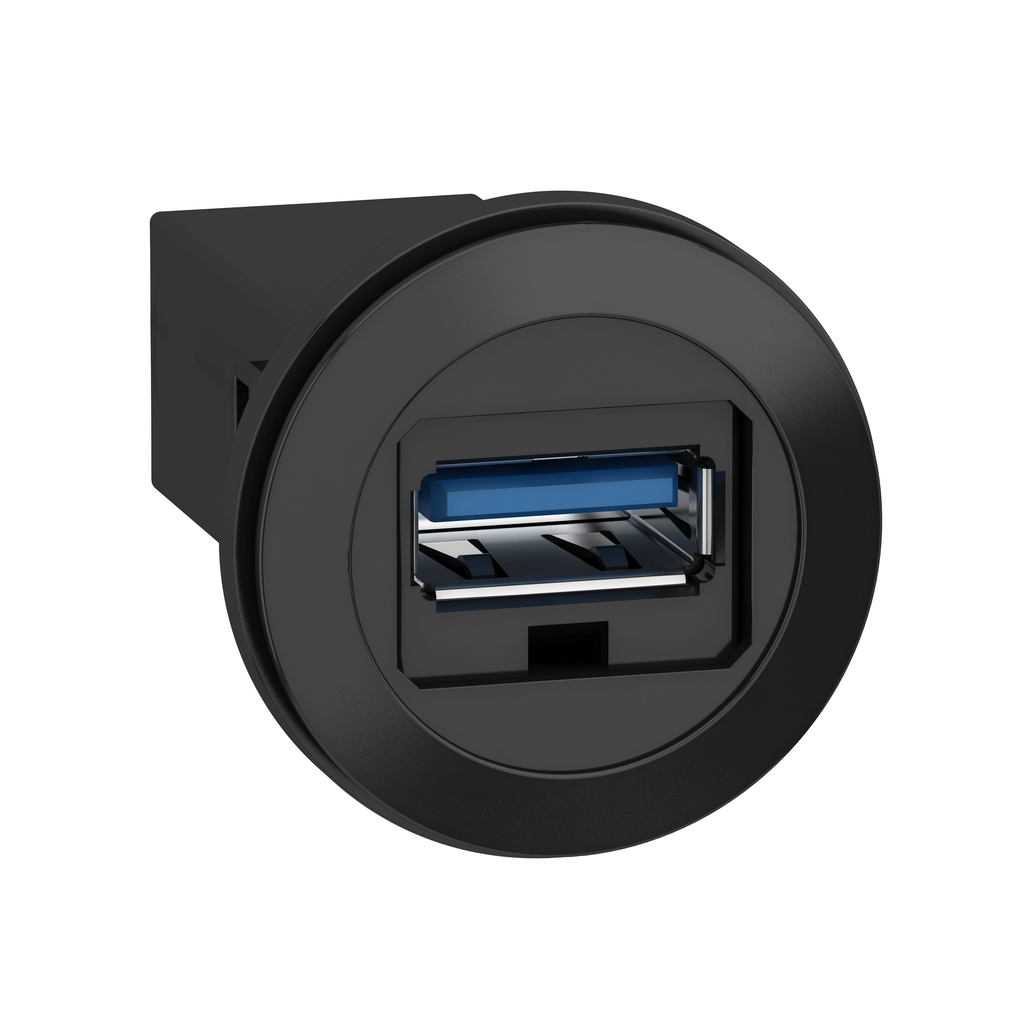

XB5PUSB3 - Panel mounted USB port, Harmony XB5, 3.0 port, plastic, 22mm, for USB interface jack type A

XB5PUSB3

Panel mounted USB port, Harmony XB5, 3.0 port, plastic, 22mm, for USB interface jack type A

This Harmony XB5, panel mounted USB port enables connection to your machine of USB devices. This panel mounted USB port provides a simple way to connect to your machine through standardized connectors, without opening the control cabinet doorIt is easily installed into standard 22mm diameter cut-outs. It provides an easily and safely access to your machine automation and controllers via a port on the door of the control cabinet. It is easily installed into standard 22mm diameter cut-outs.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Certifications	CSA UL Listed
Ambient Air Temperature For Operation	-40-70 °C
Height	28 mm
Standards	USB 3.0
Mounting Diameter	22 mm
Thickness	6-6 mm without protection cover 1.5-5 mm with protection cover plastic 1.5-5 mm with protection cover rigid plastic 1.5-2.5 mm with protection cover metal
Shock Resistance	30 gn 11 ms 3 chocks in each direction X, Y and Z
Vibration Resistance	5.35 gn15 min per axis
Net Weight	0.0169 kg
Fixing Collar Material	plastic
Sale Per Indivisible Quantity	1
Integrated Connection Type	USB 3.0 type A
Ambient Air Temperature For Storage	-40-70 °C
Bezel Material	plastic
Tightening Torque	1.5 N.m
Ip Degree Of Protection	IP20 front: conforming to IEC 60529 IP20 back: conforming to IEC 60529
Minimum Number Of Matings	1500 cycles
Width	28 mm
Depth	44 mm
Rohs Exemption Information	Yes
Mercury Free	Yes
Toxic Heavy Metal Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Country of Origin	Germany
Width	28 mm
Height	28 mm
Weight	0.0169 kg
Range Of Product	Harmony XB5
Product Or Component Type	panel mounted USB port
Device Short Name	XB5P

Panel mounted USB port, Harmony XB5, 3.0 port, plastic, 22mm, for USB interface jack type A
