XB5KSG

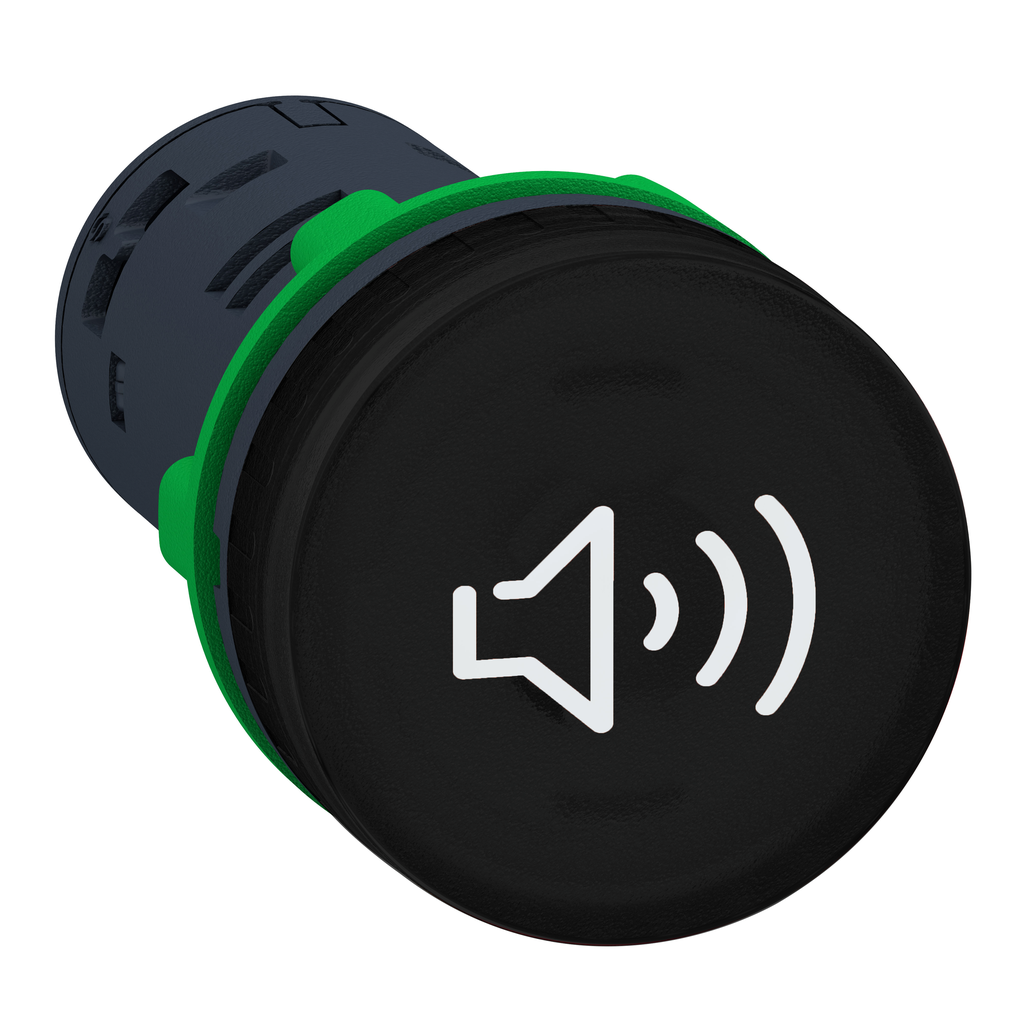

Annunciator, Harmony XB5, Complete buzzer, plastic, 22mm, continuous or intermittent tone, 110...120V AC
This Harmony XB5, annunciator siren is supplied with 120V AC with noise level 85dB. This annuciator siren provides a signaletic sound alarm for your installation. It is easily installed into standard 22mm diameter cut-outs. It has an IP40 protection. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Ambient Air Temperature For Operation | -40-70 °C |
| Standards |
|
| Nema Degree Of Protection |
|
| Ambient Air Temperature For Storage | -40-70 °C |
| Overvoltage Category | class II IEC 60536 |
| Electrical Shock Protection Class | class II IEC 60536 |
| Protective Treatment | TH |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1710008EN |
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| [Us] Rated Supply Voltage | 120 V +/- 10 % |
| Height | 29 mm |
| Net Weight | 0.024 kg |
| Current Consumption | <= 20 mA |
| Resistance To High Pressure Washer | 9000000 Pa 80 °C 0.1 m |
| Noise Level | 90 dB 6.8 kHz 0.1 m +/- 10 % |
| Signalling Type | continuous or intermittent tone |
| Supply Circuit Type | AC/DC |
| Width | 29 mm |
| Depth | 55 mm |
| Supply Frequency | 50/60 Hz |
| Country of Origin | Indonesia |
| Width | 29 mm |
| Height | 29 mm |
| Weight | 0.024 kg |
| Range Of Product | Harmony XB5 |
| Mounting Diameter | 22 mm |
| Product Or Component Type | annunciator |
| Cap/Operator Or Lens Colour | black |
| Head Type | standard |
| Bezel Material | dark grey plastic |
Documents
- XB5EV. / XB5KS. Instruction Sheet - PHA2338700+00 (pdf)
- Spec Sheet
- Discover catalog Harmony XB5 plastic Control and signaling units - DIA5ED2121213EN (pdf)
- Digest Catalog 19: Push Buttons and Operator Interface (MAY 2019) - 0100CT1901_SEC-19 (pdf)
- Catalog Harmony XALD and XALK plastic control stations English 07/2022 - DIA5ED2130508EN (pdf)
- Discover the Harmony XB4 metal Control and signaling units catalog - Harmony+XB4+metal+Control+and+signaling+units+catalog (pdf)
- Industrial Control Panel Solutions Catalog - 8800CT1801 (pdf)
- Push Buttons: Section 19 - Digest 179 (2024) - Push-Buttons-Digest-Catalog-0100CT2401-SEC-19 (pdf)
