XB5KS2M4

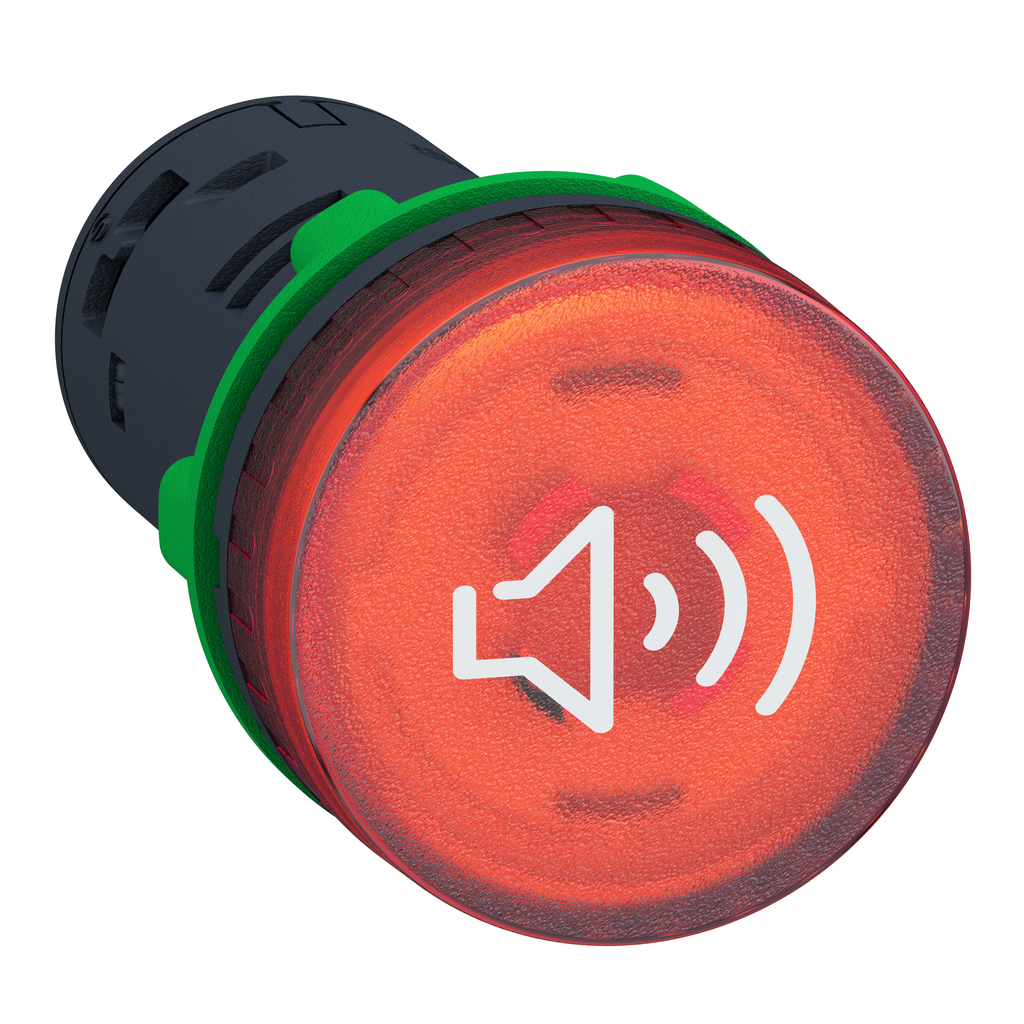

Annunciator, Harmony XB5, Illuminated buzzer, plastic, red, 22mm, continuous or intermittent tone, 230…240V AC
This indicating bank buzzer is an accessory designed as an audible and signaling unit for custom assembly. It has a continuous or intermittent signal and its sound acoustic level is adjustable. It complies with EN/IEC60947-1, EN/IEC60947-4-1, EN/IEC60947-5-1, JIS C 4520, UL 508, CSA C22.2 No 14 standards. It is also dust, impact, high pressure washer, vibration and corrosion resistant thanks to its IP69, IP67, IP66 protection, making it ideal for operation in harsh environments.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| [Us] Rated Supply Voltage | 230...240 V +/- 10 % |
|---|---|
| Height | 29 mm |
| Net Weight | 0.024 kg |
| Current Consumption | <= 35 mA |
| Resistance To High Pressure Washer | 9000000 Pa 80 °C 0.1 m |
| Noise Level | 90 dB 6.8 kHz 0.1 m +/- 10 % |
| Signalling Type | continuous or intermittent tone |
| Supply Circuit Type | AC |
| Width | 29 mm |
| Depth | 55 mm |
| Supply Frequency | 50/60 Hz |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -40-70 °C |
| Standards |
|
| Nema Degree Of Protection |
|
| Ambient Air Temperature For Storage | -40-70 °C |
| Overvoltage Category | class II IEC 60536 |
| Protective Treatment | TH |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1710008EN |
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Country of Origin | Indonesia |
| Width | 29 mm |
| Height | 29 mm |
| Weight | 0.024 kg |
| Range Of Product | Harmony XB5 |
| Mounting Diameter | 22 mm |
| Product Or Component Type | annunciator |
| Cap/Operator Or Lens Colour | red |
| Bezel Material | plastic |
