XB5FL4322 - Antimicrobial Push button flush mounted, Harmony XB5, plastic, projecting, red, 30mm, spring return, marked O, 1NC

XB5FL4322

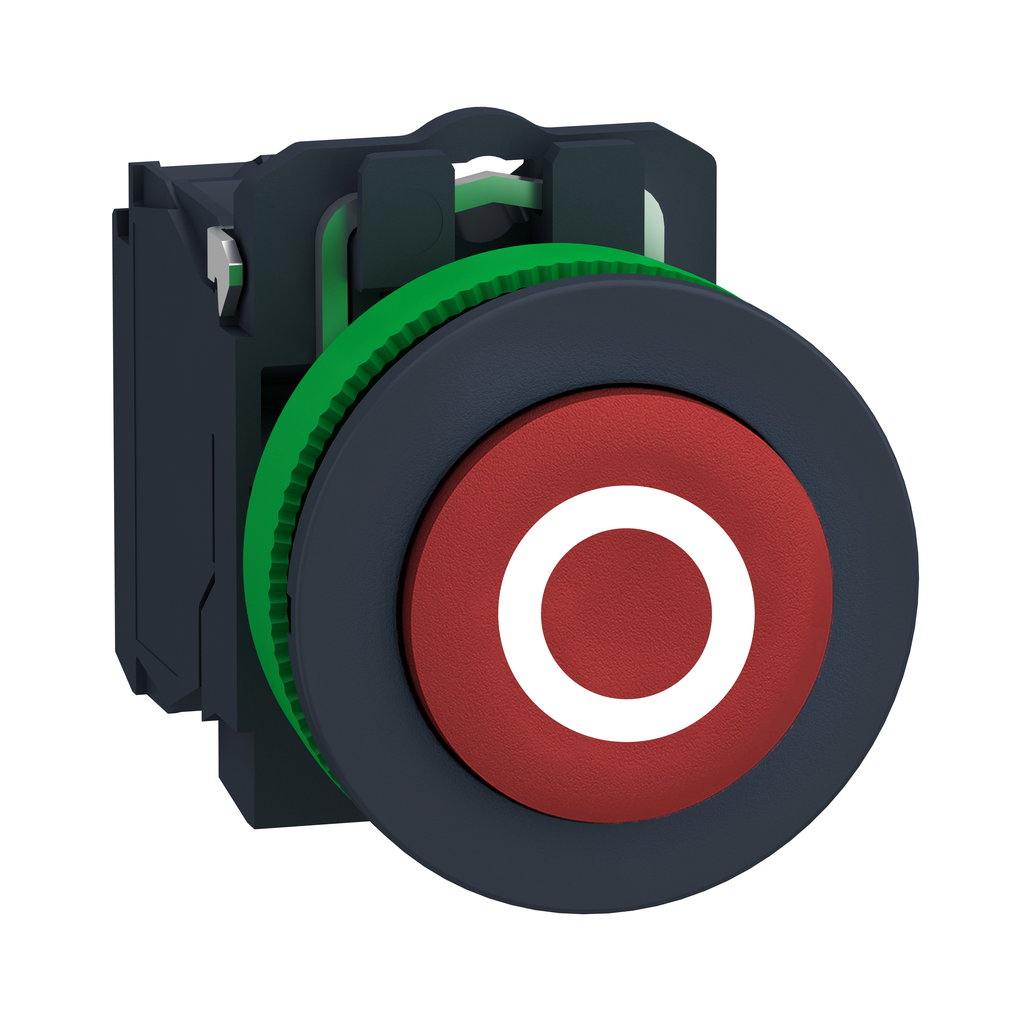

Antimicrobial Push button flush mounted, Harmony XB5, plastic, projecting, red, 30mm, spring return, marked O, 1NC

This flush mounted pushbutton is a part of the Harmony XB5 platic range and is a complete product. The mounting diameter is 30.5 mm. It has a "O" marking in white. Customized marking option is also available through web customization tool in Schneider Electric website. Improved ergonomics and aesthetics due to flush mount design. It comes with antimicrobial characteristics. The contact type is 1NC slow break and the connection terminal is screw clamp. The operator mechanism is spring return, and the push mechanism is projecting push. The shape of the head is round and red. The bezel and the fixing collar is plastic. The weight of this pushbutton is 37 grams, height is 42 mm, and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 13 and 4X, IK03, protection against solid objects, dust, water, and shock is achieved. It is certified with EN/IEC, CE marking, UL, CSA, JIS, NEMA, and marine approvals. Accessories to be ordered separately are available to facilitate the installation. The packaging includes 1 unit of this pushbutton. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring. It is eco-friendly and complies with directives such as RoHS, WEEE, etc. related to environmental protection.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Country of Origin	France
Width	36.6 mm
Height	42 mm
Range Of Product	Harmony XB5
Mounting Diameter	30.5 mm
Type Of Operator	spring return
Product Or Component Type	push-button
Shape Of Signaling Unit Head	round
Fixing Collar Material	plastic
Head Type	built-in-flush
Connections - Terminals	screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
Contacts Type And Composition	1 NC
Sale Per Indivisible Quantity	1
Bezel Material	plastic dark grey plastic
Contact Operation	slow-break
Operator Profile	red projecting, O white)
Product Compatibility	ZBYF2101 ZBYF4101 ZBYF6101 ZBYF6102 ZBZF32 ZBZF33 ZB4FBZ007
Device Short Name	XB5F
Contacts Usage	standard contacts
Height	42 mm
Terminals Description Iso N°1	(21-22)NC
Operating Force	3.5 N NC changing electrical state
Short-Circuit Protection	10 A cartridge fuse gG IEC 60947-5-1
Operating Travel	1.5 mm NC changing electrical state) 4.3 mm total travel)
Contacts Material	silver alloy (Ag/Ni)
Positive Opening	with IEC 60947-5-1 appendix K
[Ith] Conventional Free Air Thermal Current	10 A IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60947-1
Device Presentation	complete product
Resistance To High Pressure Washer	7000000 Pa 55 °C 0.1 m
Gcr Bridge	XB5FLCUST01
[Ui] Rated Insulation Voltage	600 V 3)IEC 60947-1
[Ie] Rated Operational Current	3 A 240 V, AC-15, A600 IEC 60947-5-1 6 A 120 V, AC-15, A600 IEC 60947-5-1 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Electrical Durability	1000000 cycles AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Mechanical Durability	10000000 cycles
Compatibility Code	XB5
Customizable	no
Electrical Reliability	λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Width	36.6 mm
Depth	55 mm
Tightening Torque	0.8-1.2 N.m IEC 60947-1
Shape Of Screw Head	cross Philips no 1 cross pozidriv No 1 slotted flat Ø 4 mm slotted flat Ø 5.5 mm
Rohs Exemption Information	Yes
Mercury Free	Yes
Toxic Heavy Metal Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Product Certifications	UL Listed CSA CCC EAC
Ik Degree Of Protection	IK06 conforming to IEC 50102
Ambient Air Temperature For Operation	-40-70 °C
Standards	CSA C22.2 No 14 IEC 60947-5-1 IEC 60947-5-4 UL 508 IEC 60947-1 JIS C8201-5-1 CE JIS C8201-1 ISO 22196:2011 ISO 21702
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Vibration Resistance	5 gn 10-500 Hz)IEC 60068-2-6 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
Ip Degree Of Protection	IP66 IEC 60529 IP67 IEC 60529 IP69 IEC 60529 IP69K ISO 20653 Type 13 UL 50 E Type 12 UL 50 E Type 4 UL 50 E Type 4X UL 50 E
Ambient Air Temperature For Storage	-40-70 °C
Overvoltage Category	class II IEC 60536
Protective Treatment	TH
