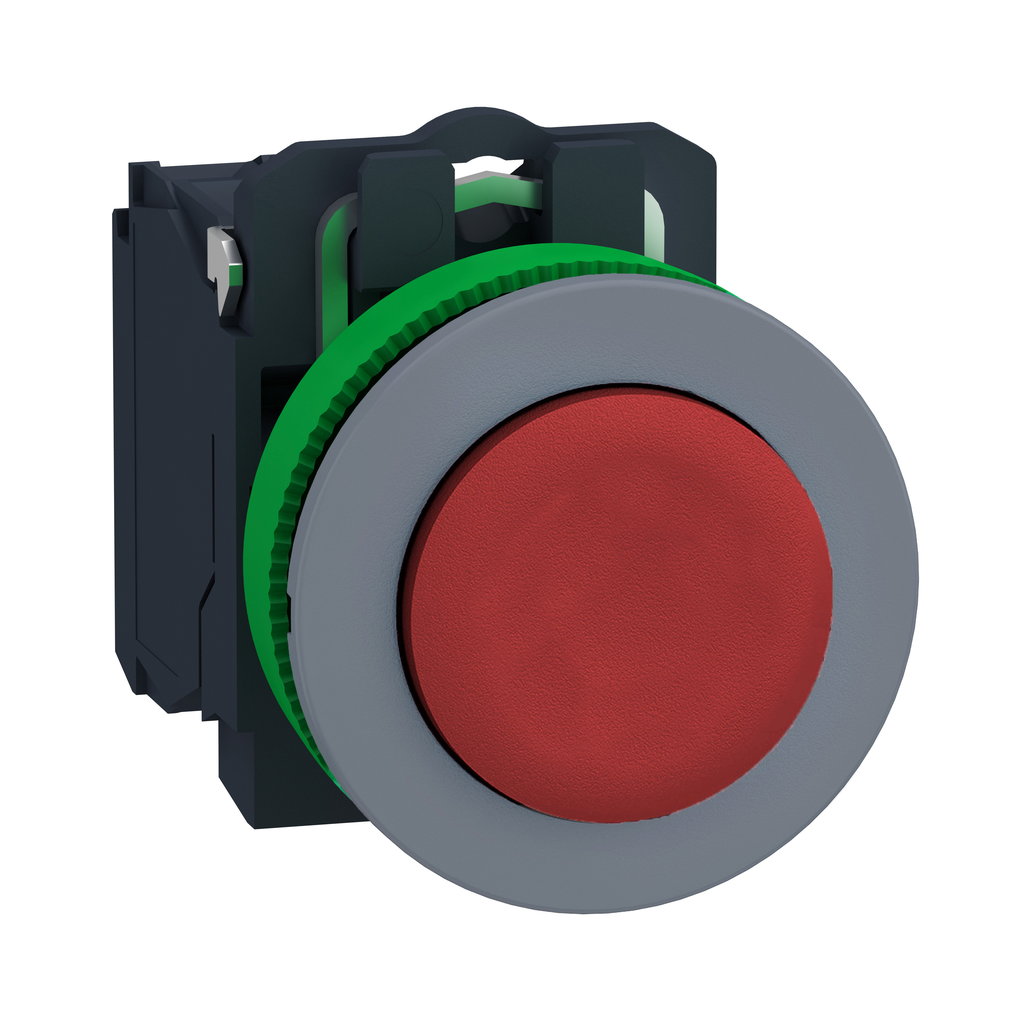

Push button, Harmony XB5, antimicrobial, grey bezel, red flush, 30mm, spring return, 1NO, unmarked
This flush mounted pushbutton is a part of the Harmony XB5 platic range and is a complete product. The mounting diameter is 30.5 mm. It has no marking. Customized marking option through web customization tool in Schneider Electric website is available. The flush mount design of this pushbutton addresses the market demands for ergonomic and aesthetics. The contact type is 1NC slow break and the connection terminal is screw clamp. The operator mechanism is spring return, and the push mechanism is projecting push. The shape of the head is round and red. The bezel is plastic color plated grey and the fixing collar is plastic. The weight of this pushbutton is 37 grams, height is 42 mm, and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 13 and 4X, IK03, protection against solid objects, dust, water, and shock is achieved. It is certified with EN/IEC, CE marking, UL, CSA, JIS, NEMA, and marine approvals. Accessories to be ordered separately are available to facilitate the installation. The packaging includes 1 unit of this pushbutton. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring. It is eco-friendly and complies with directives such as RoHS, WEEE, etc. related to environmental protection.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Contacts Usage | standard contacts |
|---|---|
| Height | 42 mm |
| Terminals Description Iso N°1 | (21-22)NC |
| Operating Force | 3.5 N NC changing electrical state |
| Short-Circuit Protection | 10 A cartridge fuse gG IEC 60947-5-1 |
| Operating Travel |
|
| Contacts Material | silver alloy (Ag/Ni) |
| Positive Opening | with IEC 60947-5-1 appendix K |
| [Ith] Conventional Free Air Thermal Current | 10 A IEC 60947-5-1 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-1 |
| Device Presentation | complete product |
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| Gcr Bridge | XB5FLCUST02 |
| [Ui] Rated Insulation Voltage | 600 V 3)IEC 60947-1 |
| [Ie] Rated Operational Current |
|
| Electrical Durability |
|
| Mechanical Durability | 10000000 cycles |
| Compatibility Code | XB5 |
| Customizable | no |
| Electrical Reliability |
|
| Width | 36.6 mm |
| Depth | 59 mm |
| Tightening Torque | 0.8-1.2 N.m IEC 60947-1 |
| Shape Of Screw Head |
|
| Country of Origin | France |
| Width | 36.6 mm |
| Height | 42 mm |
| Range Of Product | Harmony XB5 |
| Mounting Diameter | 30.5 mm |
| Type Of Operator | spring return |
| Product Or Component Type | push-button |
| Shape Of Signaling Unit Head | round |
| Fixing Collar Material | plastic |
| Head Type | built-in-flush |
| Connections - Terminals |
|
| Contacts Type And Composition | 1 NC |
| Sale Per Indivisible Quantity | 1 |
| Bezel Material | plastic colour plated grey |
| Contact Operation | slow-break |
| Operator Profile | red projecting, unmarked |
| Product Compatibility |
|
| Device Short Name | XB5F |
| Product Certifications |
|
| Ik Degree Of Protection | IK03 conforming to IEC 50102 |
| Ambient Air Temperature For Operation | -40-70 °C |
| Standards |
|
| Shock Resistance |
|
| Vibration Resistance |
|
| Ip Degree Of Protection |
|
| Ambient Air Temperature For Storage | -40-70 °C |
| Overvoltage Category | class II IEC 60536 |
| Nema Degree Of Protection |
|
| Protective Treatment | TH |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
