Selector switch, Harmony XB5, flush mounted, grey bezel, 30mm, 3 positions, black long handle, spring return, 2NO

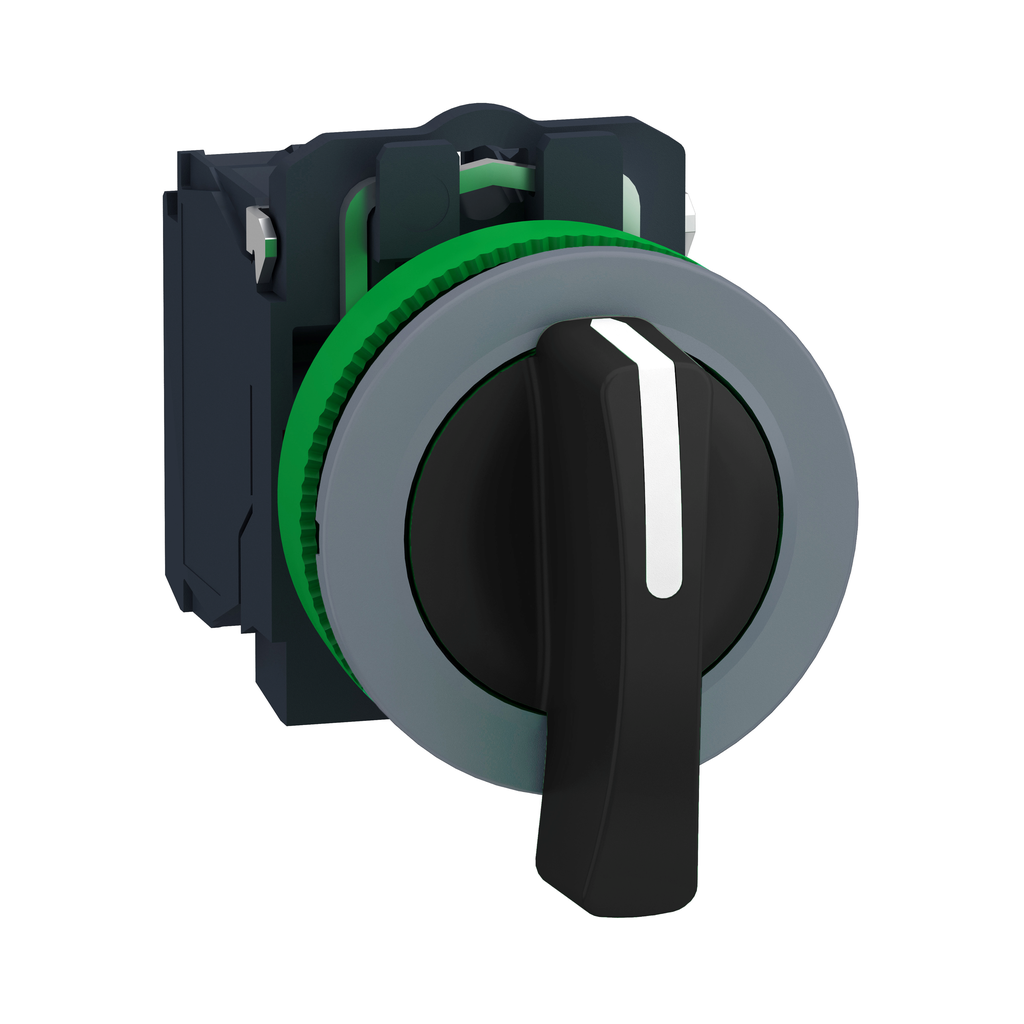

This flush mounted selector switch is a part of the Harmony XB5 plastic range and is a complete product. It has a mounting diameter of 30.5 mm. Customized marking option through web customization tool is available in Schneider Electric website. The flush mount design of this selector switch addresses the market demands for ergonomic and aesthetics. It has a black long handle with 3 positions ± 45 degree spring return to center. The contact type is 2NO slow break and the connection terminal is screw clamp. The shape of the head is round. The bezel is plastic color plated grey and the fixing collar is plactic. The weight of this selector switch is 43 grams, height is 42 mm, and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 13, and 4X, IK03, protection against solid objects, dust, water, and high impact is achieved. It is certified with EN/IEC, CE marking, UL, CSA, CCC, JIS, NEMA, and marine approvals. To name a few, flush mounted metal circular blanking plug, metal ring, spacer, protective washer, and flush mounting kit are some of the dedicated accessories to be ordered separately, available to facilitate the installation. The packaging includes 1 unit of this selector switch. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | France |
|---|---|
| Width | 36.6 mm |
| Height | 42 mm |
| Range Of Product | Harmony XB5 |
| Mounting Diameter | 30.5 mm |
| Type Of Operator | to centre spring return |
| Product Or Component Type | selector switch |
| Shape Of Signaling Unit Head | round |
| Head Type | built-in-flush |
| Connections - Terminals |
|
| Contacts Type And Composition | 2 NO |
| Sale Per Indivisible Quantity | 1 |
| Bezel Material | plastic colour plated grey |
| Contact Operation | slow-break |
| Operator Profile | black long handle, unmarked |
| Operator Position Information | 3 positions +/- 45° |
| Device Short Name | XB5F |
| Contacts Usage | standard contacts |
| Height | 42 mm |
| Terminals Description Iso N°1 |
|
| Short-Circuit Protection | 10 A cartridge fuse gG IEC 60947-5-1 |
| Contacts Material | silver alloy (Ag/Ni) |
| Positive Opening | without |
| [Ith] Conventional Free Air Thermal Current | 10 A IEC 60947-5-1 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-1 |
| Device Presentation | complete product |
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| Electrical Durability |
|
| [Ui] Rated Insulation Voltage | 600 V 3)IEC 60947-1 |
| [Ie] Rated Operational Current |
|
| Mechanical Durability | 1000000 cycles |
| Electrical Reliability |
|
| Width | 36.6 mm |
| Depth | 73 mm |
| Tightening Torque | 0.8-1.2 N.m IEC 60947-1 |
| Shape Of Screw Head |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ik Degree Of Protection | IK03 conforming to IEC 50102 |
| Ambient Air Temperature For Operation | -40-70 °C |
| Standards |
|
| Shock Resistance |
|
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection |
|
| Ambient Air Temperature For Storage | -40-70 °C |
| Nema Degree Of Protection |
|
| Electrical Shock Protection Class | class II IEC 60536 |
| Protective Treatment | TH |
