XB5EVG3 – Monolithic pilot light, Harmony XB5, grey plastic, green, 22mm, universal LED, plain lens, 110…120V AC
XB5EVG3

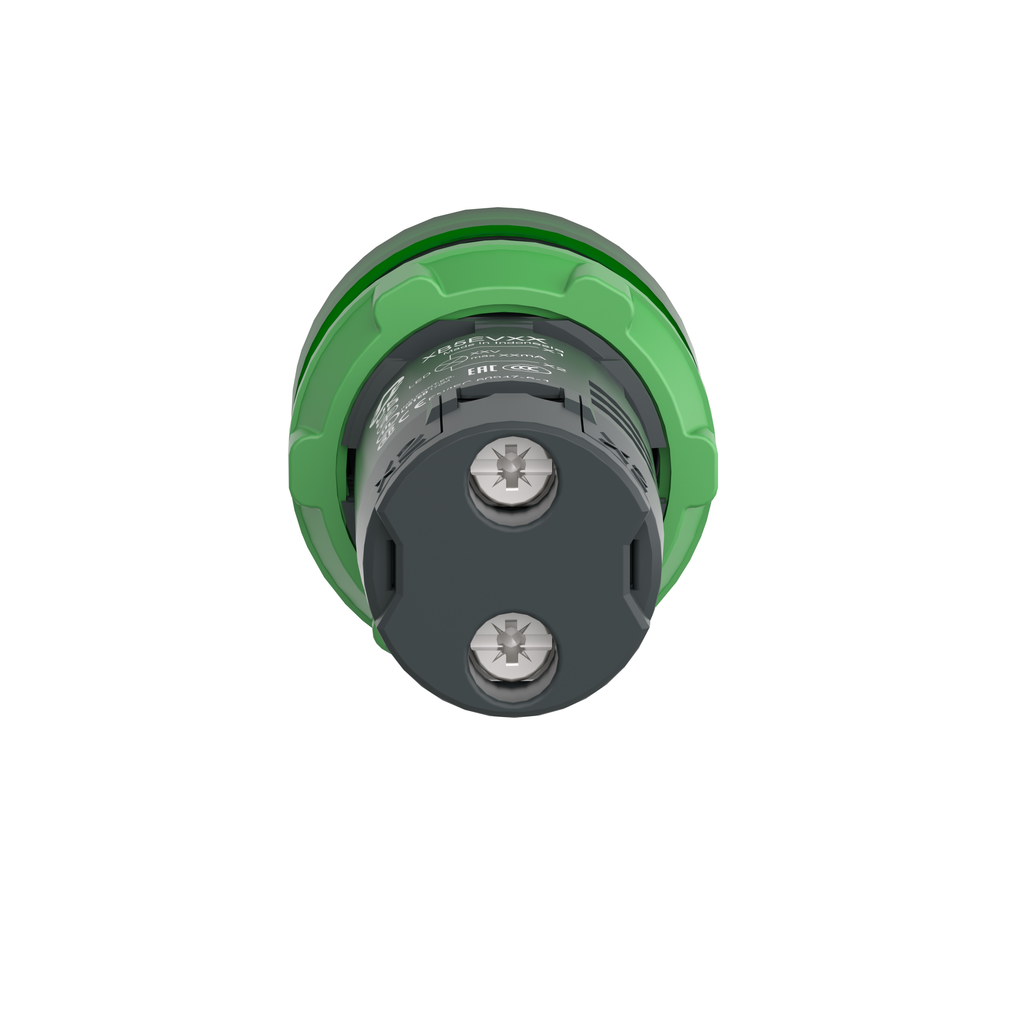

Monolithic pilot light, Harmony XB5, grey plastic, green, 22mm, universal LED, plain lens, 110...120V AC

This Harmony XB5, plain lens monolithic green pilot light is supplied with 110V to 120V AC, uses a universal LED and screw clamp terminals. This single component pilot light provides clear visual feedback on the status of your machines. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via universal LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Product Certifications
  • UL Listed
  • CSA
Ik Degree Of Protection IK05 conforming to IEC 50102
Ambient Air Temperature For Operation -25-70 °C
Resistance To Electromagnetic Fields 10 V/m IEC 61000-4-3
Standards
  • CSA C22.2 No 14
  • IEC 60947-5-1
  • IEC 60947-1
  • JIS C8201-5-1
  • UL 508
  • IEC 60947-5-4
  • JIS C8201-1
Electromagnetic Compatibility
  • electrostatic discharge - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2
  • electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2
  • electromagnetic emission class B conforming to IEC 55011
Shock Resistance
  • 50 gn 18 ms) half sine wave acceleration IEC 60068-2-27
  • 30 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance 5 gn 12-500 Hz)IEC 60068-2-6
Ip Degree Of Protection
  • IP66 IEC 60529
  • IP67 IEC 60529
  • IP69 IEC 60529
  • IP69K ISO 20653
Ambient Air Temperature For Storage -40-70 °C
Overvoltage Category class II IEC 60536
Nema Degree Of Protection
  • NEMA 13
  • NEMA 4X
Resistance To Electrostatic Discharge
  • 6 kV on contact (on metal parts) IEC 61000-4-2
  • 8 kV in free air (in insulating parts) IEC 61000-4-2
Protective Treatment TH
Resistance To Fast Transients 2 kV IEC 61000-4-4
Electromagnetic Emission class B IEC 55011
Warranty 18 months
Rohs Exemption Information Yes
Mercury Free Yes
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation X
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Important Message A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
Height 29 mm
Terminals Description Iso N°1 (X1-X2)PL
Net Weight 0.038 kg
[Uimp] Rated Impulse Withstand Voltage 4 kV IEC 60947-1
Current Consumption 14 mA
Resistance To High Pressure Washer 7000000 Pa 55 °C 0.1 m
Connections - Terminals
  • screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1
  • screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
Service Life 100000 h at rated voltage and 25 °C
Surge Withstand 1 kV IEC 61000-4-5
[Ui] Rated Insulation Voltage 250 V 3)IEC 60947-1
Signalling Type steady
Supply Voltage Limits 100-132 V AC
Compatibility Code XB5
Width 29 mm
Depth 54 mm
Country of Origin United States
Width 29 mm
Height 29 mm
Weight 0.038 kg
Operator Additional Information with plain lens
Range Of Product Harmony XB5
Light Source universal LED
Mounting Diameter 22.5 mm
Product Or Component Type pilot light
Shape Of Signaling Unit Head round
Cap/Operator Or Lens Colour green
Fixing Collar Material plastic
Head Type standard
Device Presentation monolithic product
Sale Per Indivisible Quantity 1
Bezel Material dark grey plastic
Light Source Colour green
Device Short Name XB5
[Us] Rated Supply Voltage 110...120 V AC 50/60 Hz
Bulb Base integral LED
