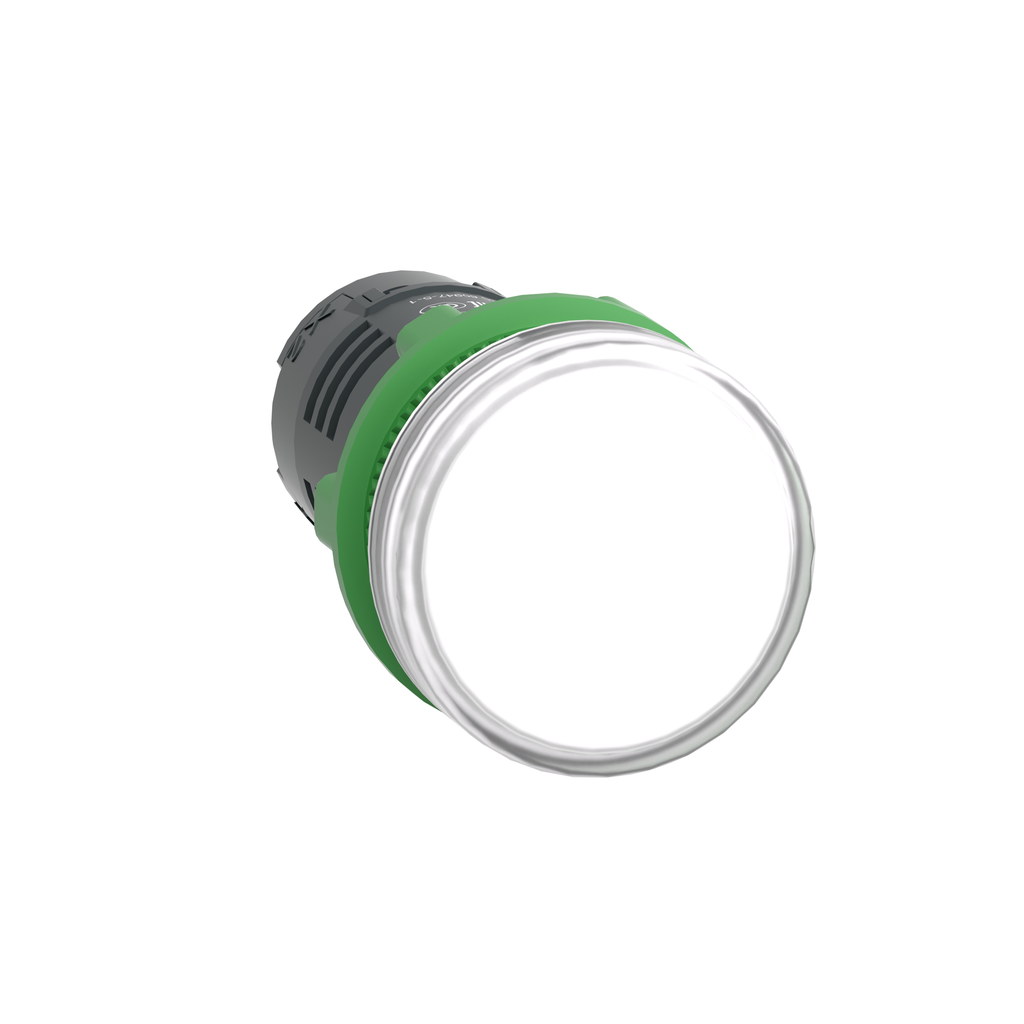

Monolithic pilot light, Harmony XB5, grey plastic, white, 22mm, universal LED, plain lens, 24V AC DC
This Harmony XB5, plain lens monolithic white pilot light is supplied with 24V AC/DC, uses a universal LED and screw clamp terminals. This single component pilot light provides clear visual feedback on the status of your machines. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via universal LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Ik Degree Of Protection | IK05 conforming to IEC 50102 |
| Ambient Air Temperature For Operation | -25-70 °C |
| Resistance To Electromagnetic Fields | 10 V/m IEC 61000-4-3 |
| Standards |
|
| Electromagnetic Compatibility |
|
| Shock Resistance |
|
| Vibration Resistance | 5 gn 12-500 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection |
|
| Ambient Air Temperature For Storage | -40-70 °C |
| Overvoltage Category | class II IEC 60536 |
| Nema Degree Of Protection |
|
| Resistance To Electrostatic Discharge |
|
| Protective Treatment | TH |
| Resistance To Fast Transients | 2 kV IEC 61000-4-4 |
| Electromagnetic Emission | class B IEC 55011 |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Important Message | A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks |
| Height | 29 mm |
| Terminals Description Iso N°1 | (X1-X2)PL |
| Net Weight | 0.038 kg |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV IEC 60947-1 |
| Current Consumption | 18 mA |
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| Connections - Terminals |
|
| Service Life | 100000 h at rated voltage and 25 °C |
| Surge Withstand | 1 kV IEC 61000-4-5 |
| [Ui] Rated Insulation Voltage | 250 V 3)IEC 60947-1 |
| Signalling Type | steady |
| Supply Voltage Limits |
|
| Compatibility Code | XB5 |
| Width | 29 mm |
| Depth | 54 mm |
| Country of Origin | Indonesia |
| Width | 29 mm |
| Height | 29 mm |
| Weight | 0.038 kg |
| Operator Additional Information | with plain lens |
| Range Of Product | Harmony XB5 |
| Light Source | universal LED |
| Mounting Diameter | 22.5 mm |
| Product Or Component Type | pilot light |
| Shape Of Signaling Unit Head | round |
| Cap/Operator Or Lens Colour | white |
| Fixing Collar Material | plastic |
| Head Type | standard |
| Device Presentation | monolithic product |
| Sale Per Indivisible Quantity | 1 |
| Bezel Material | dark grey plastic |
| Light Source Colour | white |
| Device Short Name | XB5 |
| [Us] Rated Supply Voltage | 24 V AC/DC 50/60 Hz |
| Bulb Base | integral LED |
