XB5EV57K4

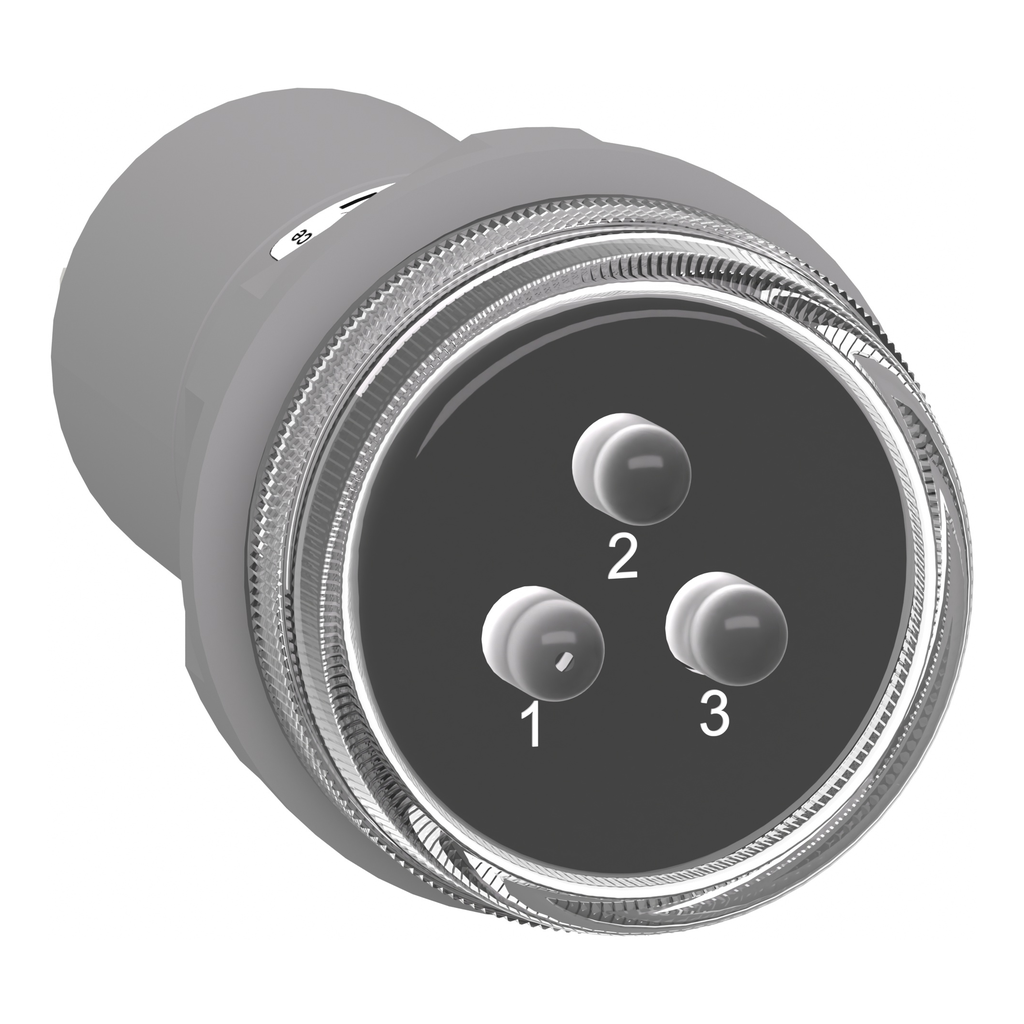

Monolithic pilot light, Harmony XB5, 3 phases Voltage, indicator with 3 LED, red, green, yellow, 400V AC
This Harmony XB5, plain lens monolithic red / yellow / green 3-phase voltage presence indicator pilot light, is supplied with a 3-phase 400V AC voltage, uses an integral LED and uses screw clamp terminals. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP67. It is ideal for incoming section in main and secondary low voltage switchboards, with one colored LED per phase. It is designed to fit in a standard 22mm cutout.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Height | 65.5 mm |
| Net Weight | 0.065 kg |
| [Uimp] Rated Impulse Withstand Voltage | 1 kV IEC 61000-4-5 |
| Current Consumption | 4...6 mA |
| Connections - Terminals | Faston terminals 6.3 mm IEC 60947-1 |
| Service Life | 100000 h at rated voltage and 25 °C |
| Surge Withstand | 1 kV IEC 61000-4-5 |
| Supply Voltage Limits | 450-450 V AC |
| Compatibility Code | XB5 |
| Width | 36 mm |
| Depth | 77 mm |
| Country of Origin | France |
| Width | 36 mm |
| Height | 65.5 mm |
| Weight | 0.065 kg |
| Range Of Product | Harmony XB5 |
| Light Source | protected LED |
| Mounting Diameter | 30 mm |
| Product Or Component Type | monolithic pilot light |
| Shape Of Signaling Unit Head | round |
| Cap/Operator Or Lens Colour | clear |
| Phase | 3 phase |
| Fixing Collar Material | plastic |
| Device Presentation | monolithic product |
| Sale Per Indivisible Quantity | 1 |
| Bezel Material | plastic |
| Light Source Colour |
|
| Device Short Name | XB5 |
| Bulb Base | integral LED |
| Ik Degree Of Protection | IK10 conforming to IEC 50102 |
| Ambient Air Temperature For Operation | -30-70 °C |
| Resistance To Electromagnetic Fields | 10 V/m IEC 61000-4-3 |
| Standards |
|
| Electromagnetic Compatibility |
|
| Ip Degree Of Protection |
|
| Ambient Air Temperature For Storage | -40-70 °C |
| Resistance To Fast Transients | 2 kV IEC 61000-4-4 |
