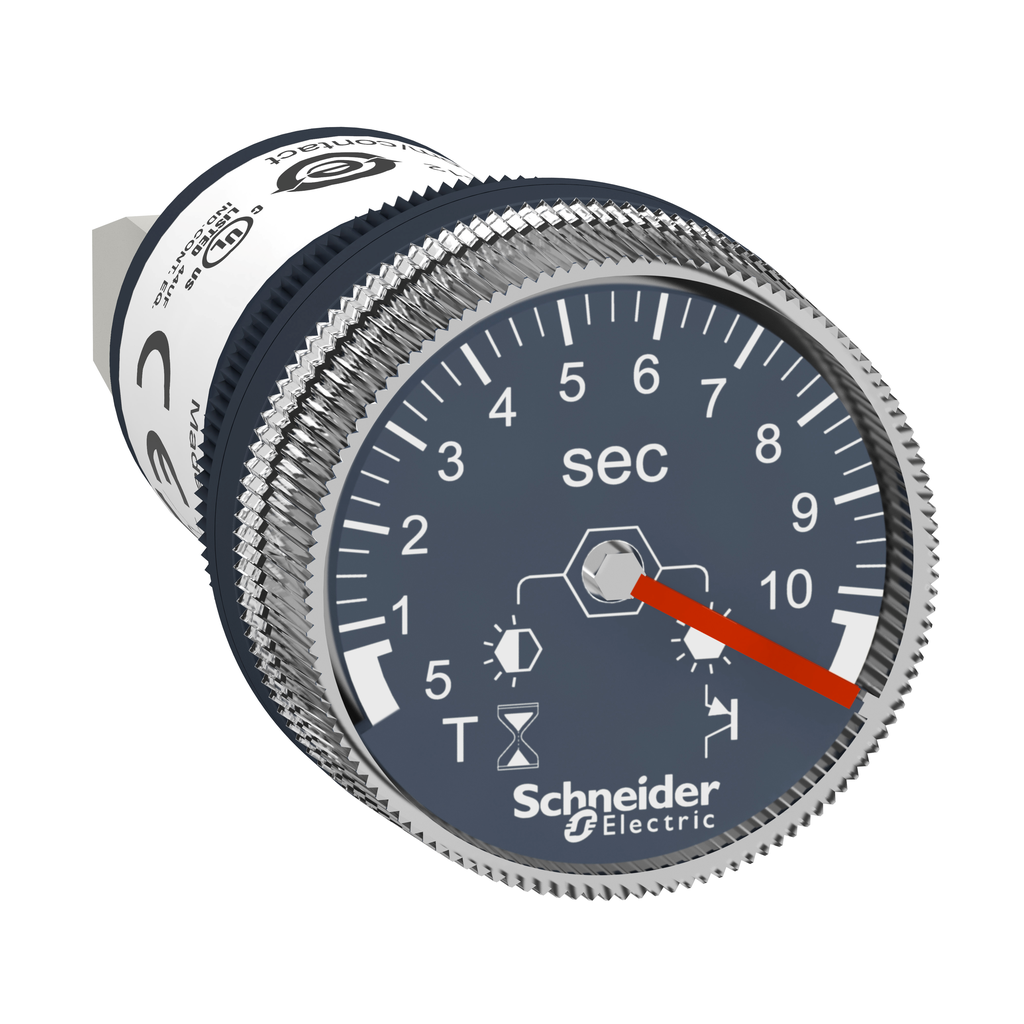

XB5DTB22 - Panel mounted timer monofunction, Harmony XB5, plastic, 22mm, time delay 0.5...10s, 24V DC

XB5DTB22

Panel mounted timer monofunction, Harmony XB5, plastic, 22mm, time delay 0.5...10s, 24V DC

This Harmony XB5, monolithic analog timer can be set for timing intervals between 0.5s to 10s and is supplied with a 24V DC input. This analog timer provides visual timing of your processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It provides highly visible timing of machine processes, ensuring accuracy and consistency of operation.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Rohs Exemption Information	Yes
Mercury Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Country of Origin	France
Height	62 mm
Weight	0.027 kg
Range Of Product	Harmony XB5
Product Or Component Type	timer
Sale Per Indivisible Quantity	1
Product Certifications	CE UL Listed
[Us] Rated Supply Voltage	24 V DC
Setting Accuracy Of Time Delay	+/- 10 % of full scale 25 °C IEC 61812-1
Ambient Air Temperature For Operation	-20-60 °C
Height	62 mm
Resistance To Electromagnetic Fields	10 V/m 80 MHz...1 GHz level 3 IEC 61000-4-3 3 V/m 1.4...2 GHz level 2 IEC 61000-4-3 1 V/m 2...2.7 GHz level 1 IEC 61000-4-3
Diameter	29 mm
Maximum Voltage Drop	3 V
Standards	IEC 61812-1 UL 508
Disturbance Radiated/Conducted	class B EN 50022
Repeat Accuracy	+/- 0.5 %
Mounting Diameter	22 mm
Power Consumption In W	1 W
Shape Of Signaling Unit Head	round
Dielectric Strength	1500 V IEC 61812-1
Vibration Resistance	0.15 mm 10-60 Hz)IEC 60068-2-6 2 gn 60-150 Hz)IEC 60068-2-6
Shock Resistance	+/- 15 gn 11 ms 6 shocks on each axis)IEC 60068-2-27
Reset Time	5 ms after time delay on de-energisation 7 ms during time delay on de-energisation
Net Weight	0.027 kg
[Uimp] Rated Impulse Withstand Voltage	4 kV IEC 60947-1 4 kV IEC 60664-1
Fixing Collar Material	plastic
Voltage Drift	+/- 0.2 %/V
Device Presentation	monolithic product
Thickness	1-6 mm
Electromagnetic Compatibility	electrostatic discharge 6 kV level 3 conforming to IEC 61000-4-2 electromagnetic emission class B conforming to IEC 55011
Temperature Drift	+/- 0.05 %/°C
Time Delay Range	0.5...10 s
Local Signalling	LED green, flashing timing in progress LED, steady no timing in progress and output relay energised
Pollution Degree	3 IEC 60664-1
[Ui] Rated Insulation Voltage	50 V IEC 60947-1 50 V IEC 60664-1
Ambient Air Temperature For Storage	-20-80 °C
Surge Withstand	1 kV, level 2 IEC 61000-4-5
Overvoltage Category	class 3 IEC 60536 class 3 IEC 60664-1
Bezel Material	plastic
Tightening Torque	0.5 N.m
Output Short-Circuit Protection	yes
Connections - Terminals	screw terminals 1 x 4 mm² IEC 60947-1 screw terminals 1 x 2.5 mm² IEC 60947-1
Minimum Switching Current	10 mA
Supply Voltage Limits	16.8-31.2 V DC
Temporary Permissible Current	10 A 0.01 s
Ip Degree Of Protection	IP65 front: conforming to IEC 60529 IP20 back: conforming to IEC 60529
Maximum Residual Current	0.1 mA
Protection Type	overvoltage protection reverse polarity protection
Output Type	open collector PNP
Time Delay Type	A
Immunity To Radioelectric Fields	10 V level 3 IEC 61000-4-6
Resistance To Fast Transients	2 kV level 3 IEC 61000-4-4
Line Rated Current	200 mA at 20 °C( derating 1.5 mA per °C)
